Network
2-10
CDM-570/L, CDD-56X Parameter Editor User Guide
Per Route Features
The Per Route Features provide optional functionality choices for the modem/
router unit. The per route features are:
• Header Compression – Refer to section “Compression” on page 2-60 for
details on setting header compression.
• Payload Compression – Refer to section “Compression” on page 2-60 for
details on setting payload compression.
• 3xDES – Refer to the section “Triple DES” on page 2-62 for details on
setting the DES encryption.
• DES Key – Select the key from the drop-down list.
Modifying a Route
Selecting a route from the Routing table enables the Modify button. Clicking
the Modify button displays the Modify Route dialog shown in figure 2-8.

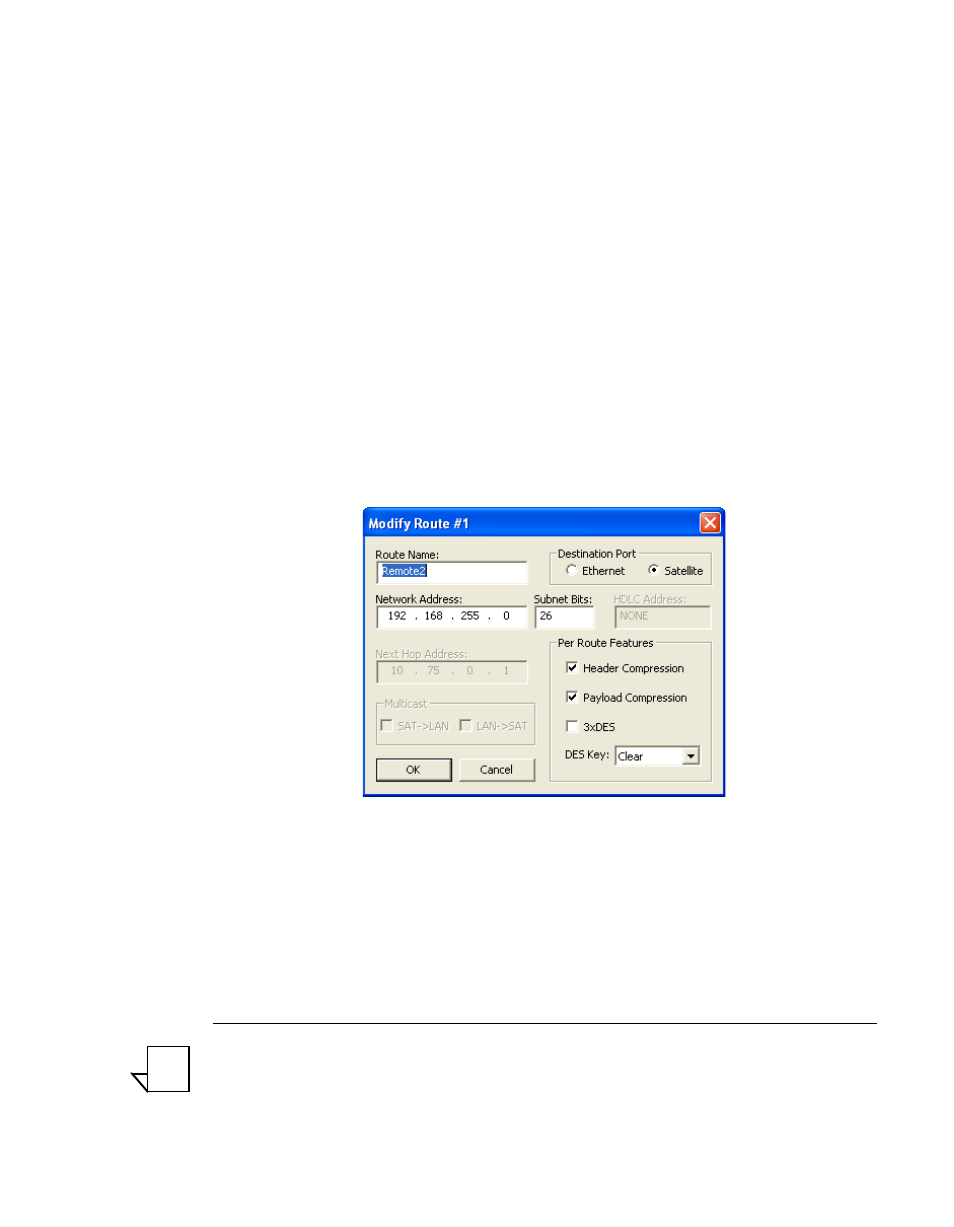

Figure 2-8 Modify Route dialog
The Modify Route dialog allows edits to be made to the fields as described
above.
QoS
Note: If the QoS feature (FAST code) has not been purchased for this modem,
the QoS menu item will not be displayed.
NOTE
