Pitch and Throttle Curves (HELI)

Throttle and pitch adjust feature
Program the LT, CT and RT VR switches to work as in-flight adjustment controls for 5 different throttle and pitch curve adjustment
features. These adjustment menus are located in the Pitch and throttle switch set-up menus.

Throttle curve adjust options include;
1. Hover adjust
2. Hover with pitch adjust

Pitch curve adjust options include;
1. Hover adjust
2. High pitch adjust
3. Low pitch adjust

Note

f. Note the

THRO arrow NORMAL

line on the menu.

Pressing the

arrow

will cycle you to the

Throttle Curve menu.

Switch Option and in flight Fine Trim Adjustment Switch Function.

g. To select a 2 or 3 position switch that will allow you to program multiple curve values, press

NULL

and follow the

switch activation process. This is also the menu to apply the hovering pitch and throttle controls to the VR switches.

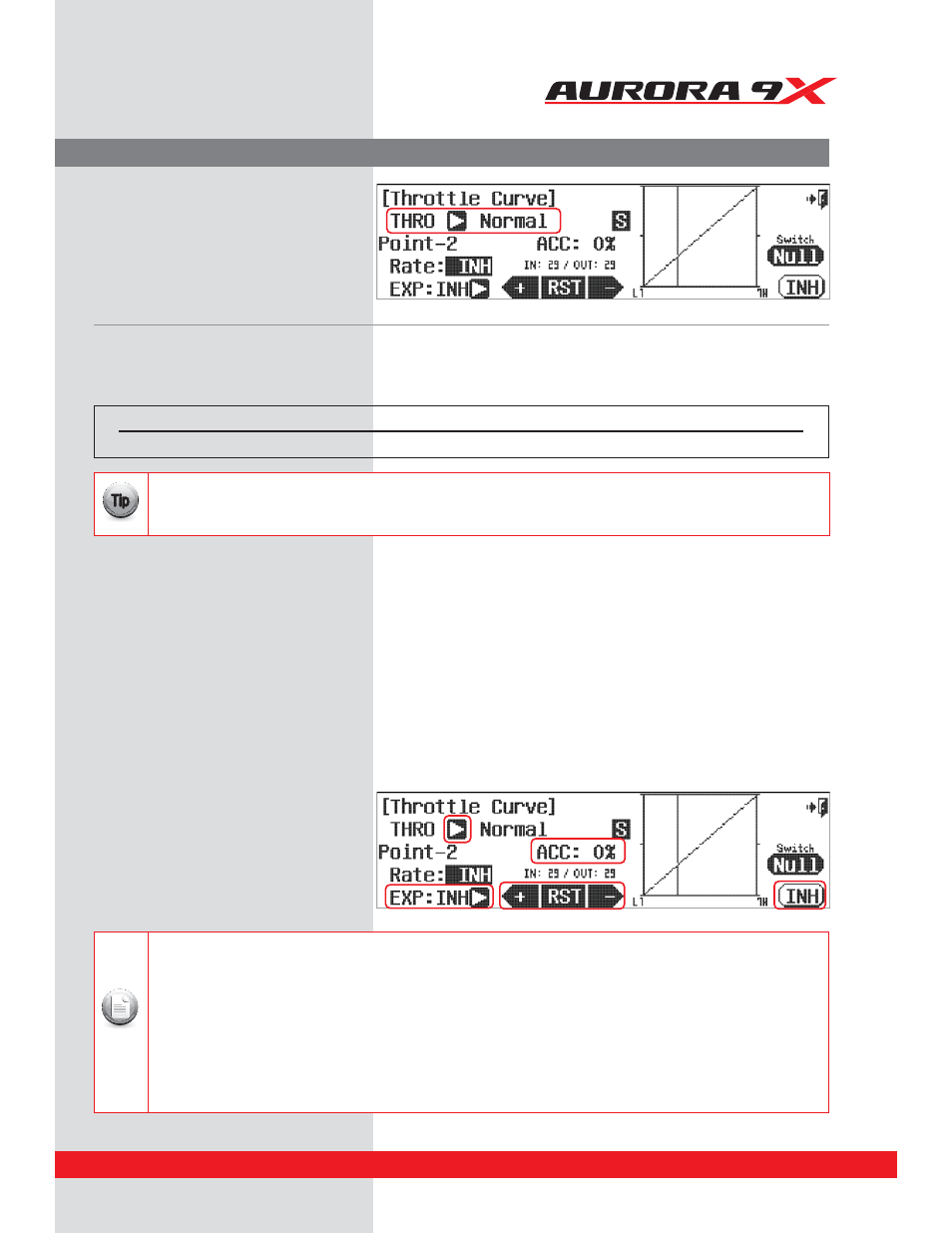

h. Moving the throttle stick will change the location of the vertical line. This line represents the throttle stick position and lets you choose
which cure point you want to adjust. Press the +RST- icon set point using the

+RST-

icon to adjust.

INH

(turn off ), or

ACT

(turn on) a point by using the throttle to place the graph line through the point you wish to change, press

RST

j. Add an exponential curve from one point to another by pressing the

Arrow

next to the

EXP: INH

icon and

have it switch to

EXP: ACT.

This activates the expo option between it, the prior and the next point.

Use the

+RST-

icons to add a value creating a curve.

k. Change the activation speed with the

ACC : 0%

icon, or acceleration feature.

Again using the throttle to place the graph line through the point you wish to change,
use the

+RST-

icons to change the acceleration value.

l. Select the

Exit

icon to return to the model menu.

Switch

type

Function

Adjust

2 or 3 position

Multiple values

Pitch and Throttle

You don’t have to set a switch to have multiple curves at this point. Many users will choose to use the flight conditions /
Idle-Ups to select between different curve values as the flight condition function will also influence the gyro, governor,
dual and exponential rates plus many other critical mixes and functions.

{
