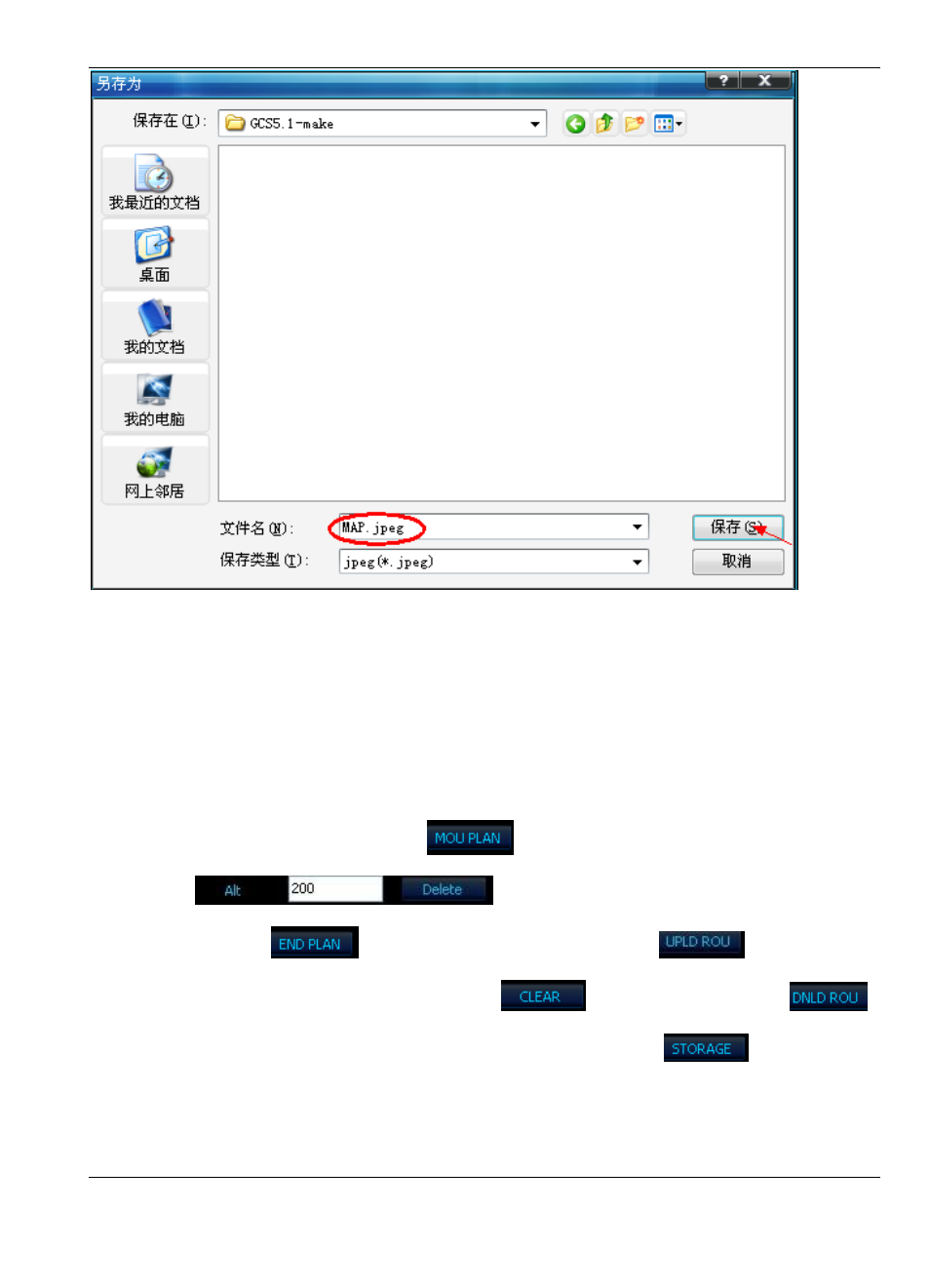

All the steps finished successfully, it will generate 3 format files with the same name, respectively
―.GST‖, ―.Tab‖, ―.Jpeg‖ files. The Generating ―.GST‖ file is the map file format that the 2D version GCS
can support, after loading it you can do the route planning.
12.7 Air Route Setting
Click ―Route‖ on Tool bar, Then click ―
‖ , waypoint position which you want. You can
through the ―
‖ to set waypoint altitude(default is 200m). Click
right mouse button on ―
‖ for ending waypoint plan. Then click ―
‖. After uploading,
you can clear the current waypoints via click the ―
‖ button. And then click ―
‖,
download waypoints in PandaⅡ
, check the waypoints are correct. Click ―
‖, save the route
which is set into pandaⅡ, otherwise waypoints will be lost after power outage.
