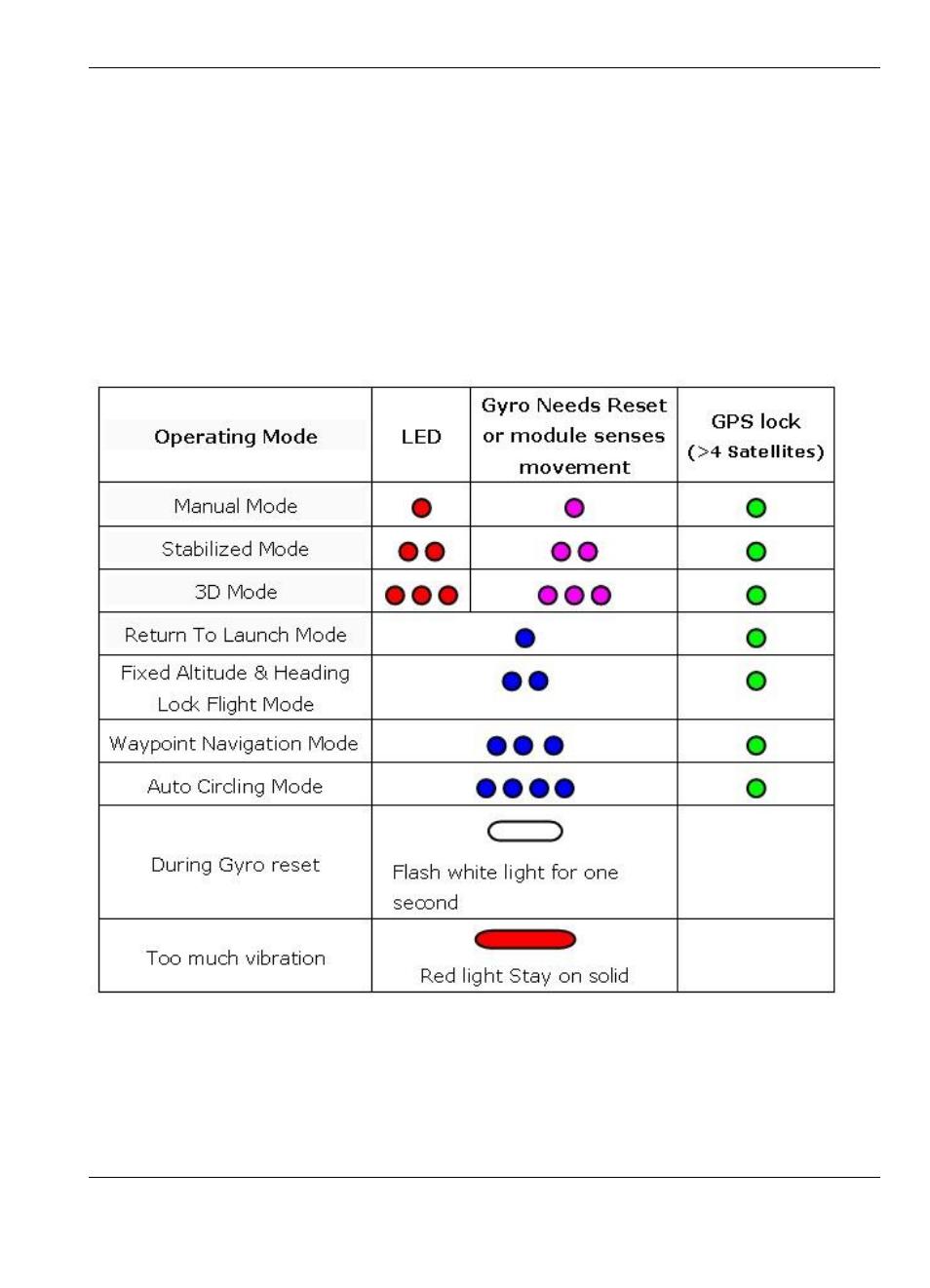

10. PandaⅡ indicator light instruction
Panda
Ⅱ with three colors LED which can send out red, blue, green light. Also yellow, white,
purple and other colors light through the combination.
Operators can know the Panda
Ⅱ‘s operating mode by judging the different colors which the LED
sends out and the flash frequency. green light flash means GPS location fixed, red and blue light
indicate Panda
Ⅱ working mode. Under manual mode, stabilization mode or 3D mode, keep Panda
Ⅱ in the static state. If it sends out purple light it means PandaⅡ needs Gyro Reset.
e.g. Red Manual Mode, GPS not lock
Red—Red—Green Stabilized Mode, GPS lock
Purple—Purple—Green Stabilized Mode, GPS lock,
If it stay static means need Gyro Reset.
Blue—Blue—Blue—Green Waypoint Navigation Mode, GPS lock
