Page 24

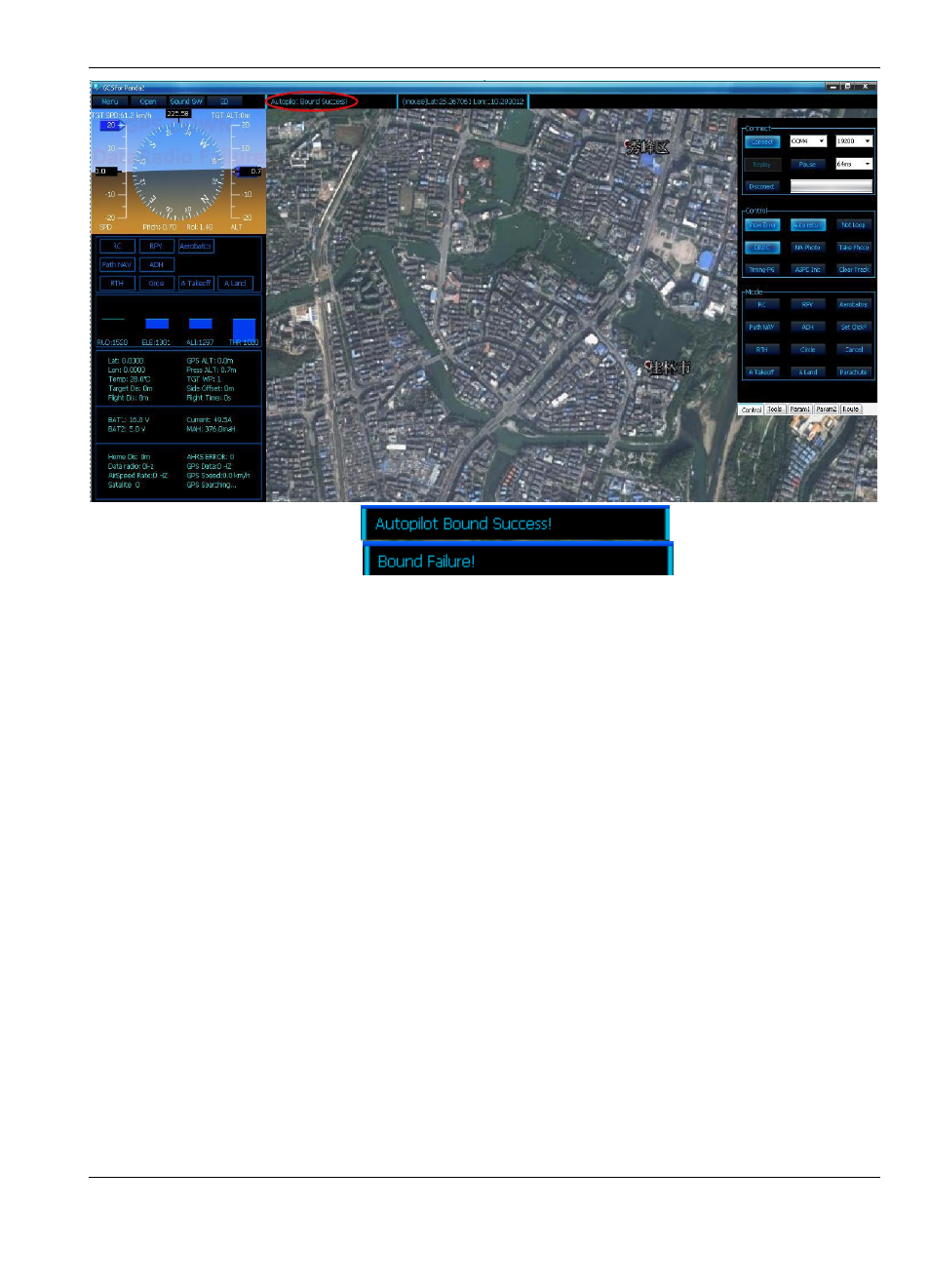

Autopilot bounding succeed :
Autopilot bounding Failure :
Note: Remote Adapter which purchase before October 22, 2013 are not support the
setting ID number function .When you use the Panda
Ⅱ you can set its ID number as
“00000”.If you want your Remote Adapter work in this new function ,please sent it back to
our company to upgrade .
12.5 Configurate the PandaⅡ
via “Autopilot
Configuration Wizard”
Select ―Menu---Autopilot Configuration Wizard‖ begin doing basic configuration of Panda Ⅱ.
Step one: Installation direction setting
First you should set the correct mounting direction according to the Panda
Ⅱ mounting direction
on the plane(The default setting is Arrow forward).Click on the button "Set" after you choose the
correct mounting direction. After that, pitch and roll inclined the plane through the attitude Chart to
check whether the posture and aircraft state is identical.
