6. How to connect PandaⅡ and Hornet-OSD
PandaⅡ
‘s OSD port is no longer for use any more, you must connect the Hornet-OSD to Panda
Ⅱ
‘s UART port.(You should use a Y cable to connect both data radio and Hornet-OSD to PandaⅡ‘s
UART port)

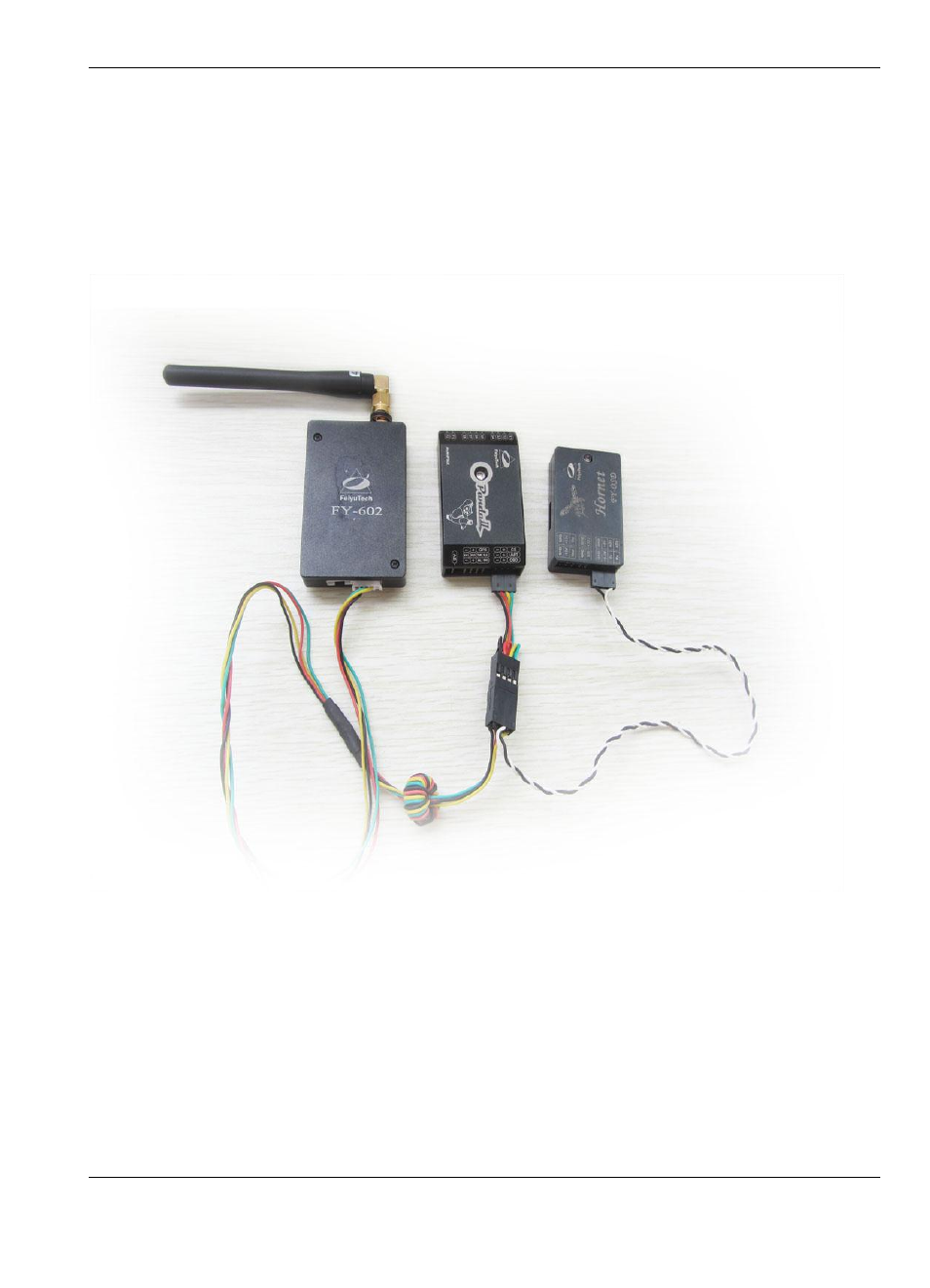

Connection diagram:
