Page 11

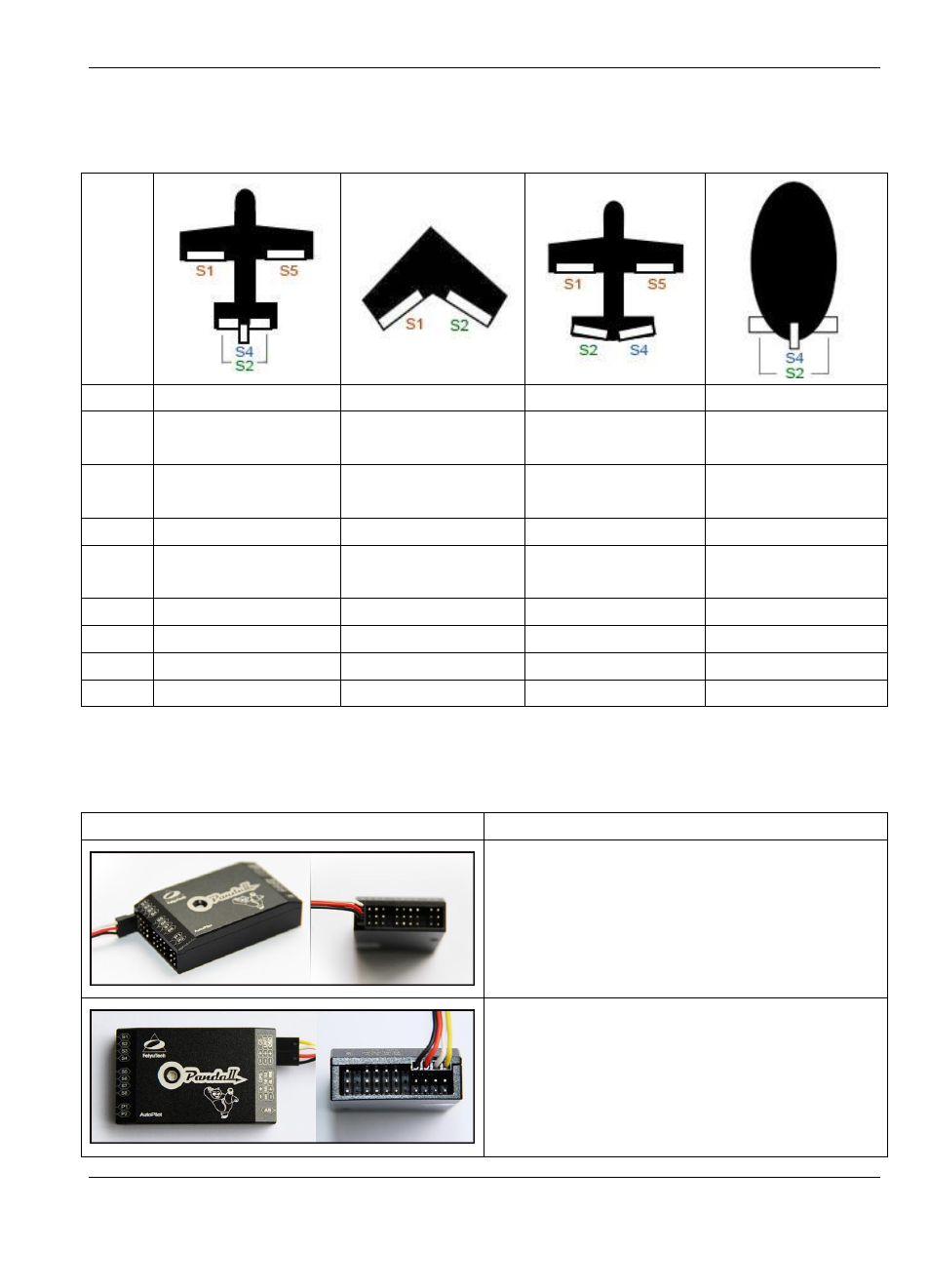

7. S1～S8 Servo interface connection instructions
No.
Type Traditional Flying wing V tail Airship
S1 Aileron servo 1
Aileron &Elevator
mix control servo 1
Aileron servo 1 Not use
S2 Elevator servo
Aileron &Elevator
mix control servo 2
Elevator &Rudder
mix control servo 1
Elevator servo
S3 Throttle servo/ESC Throttle servo/ESC Throttle servo/ESC Throttle servo/ESC
S4 Rudder servo Not use
Elevator &Rudder
mix control servo 1
Rudder Servo
S5 Aileron servo 2 Not use Aileron servo 2 Not use
S6 Not use Not use Not use Not use
S7 Not use Not use Not use Not use
S8 Not use Not use Not use Not use
8.
The instructions of each modules’ connection
Connection Diagram Institutions
S1～S8 servo connecting wires, please pay
attention to the direction of signal line .
The wire connection about power management
module.
