i.LON 100 Internet Server User’s Guide 4-11

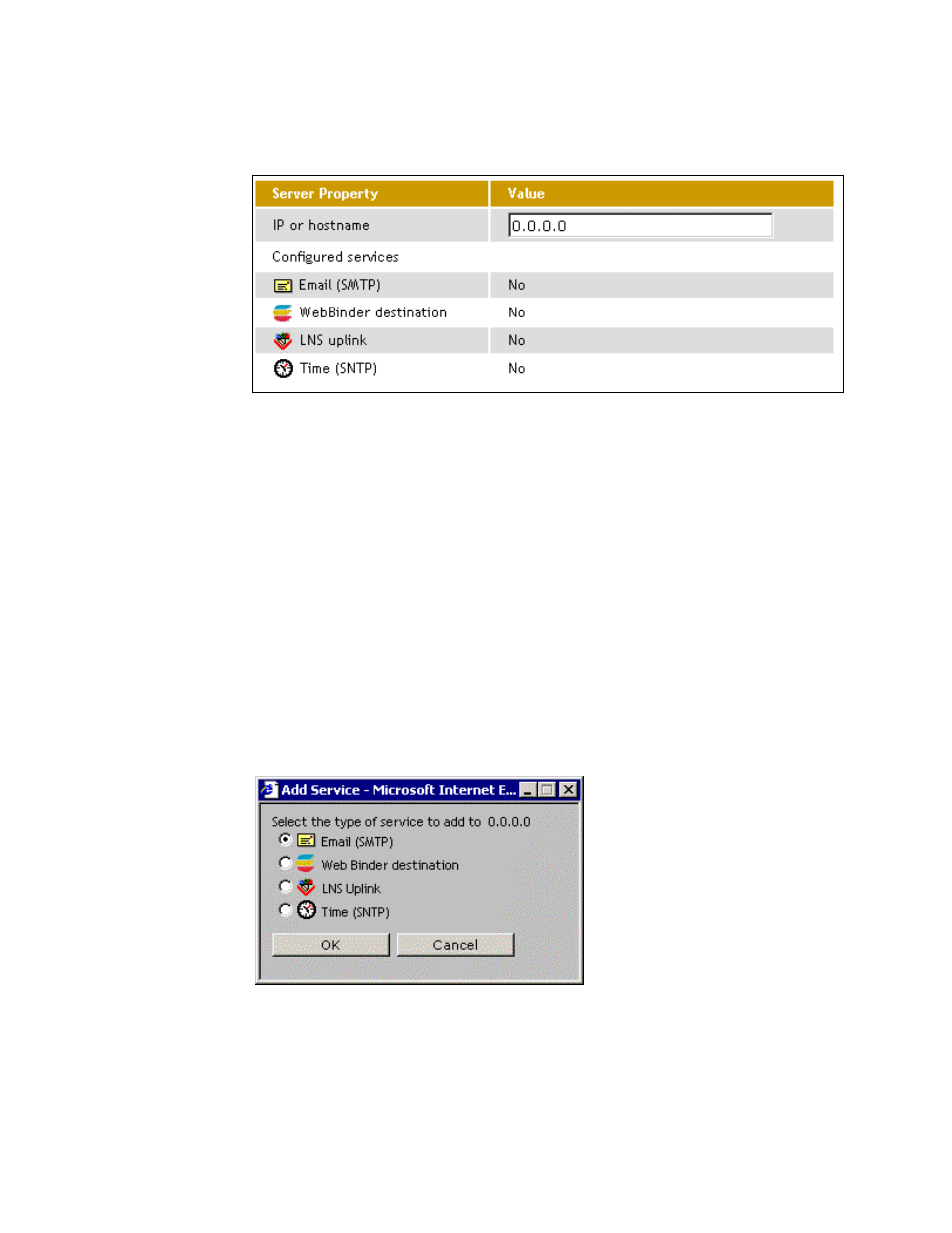

2. Right-click the connection for which you want to create a server and select
Add Server from the short-cut menu. The right-hand side of the LAN/WAN
Web page will appear as shown in the following figure:
3. Set the IP Or Hostname for the server. This is the IP address or the
hostname that will be used to contact the server. To access a server via
hostname, DNS must be enabled on the i.LON 100 (see Configuring LAN
Connection Properties, above). By default, this value will be 0.0.0.0.
4. Click Submit to save the new service. It will appear under the specified
connection as the IP address or hostname entered in step 3.
5. Create and configure one or more services for the server. See Creating and
Configuring Services, below, for more information.
Creating and Configuring Services
Once you have created a server as described in Creating and Configuring Servers,
above, you must create one or more services for it. To create a service, follow
these steps:
1. Open
the LAN/WAN page by hovering your mouse cursor over Network and
selecting LAN/WAN from the drop-down menu.
2. Right-click the server for which you want to create a service and select Add
Service from the short-cut menu. The Add Service window will appear as
shown in the following figure:
3. Select one of the four services and click OK. The new service will appear
below the selected server and the right-hand side of the LAN/WAN Web page
will show the properties for the selected service.
4. Configure the service as described in one of the following sections.
