i.LON 100 Internet Server User’s Guide 2-13

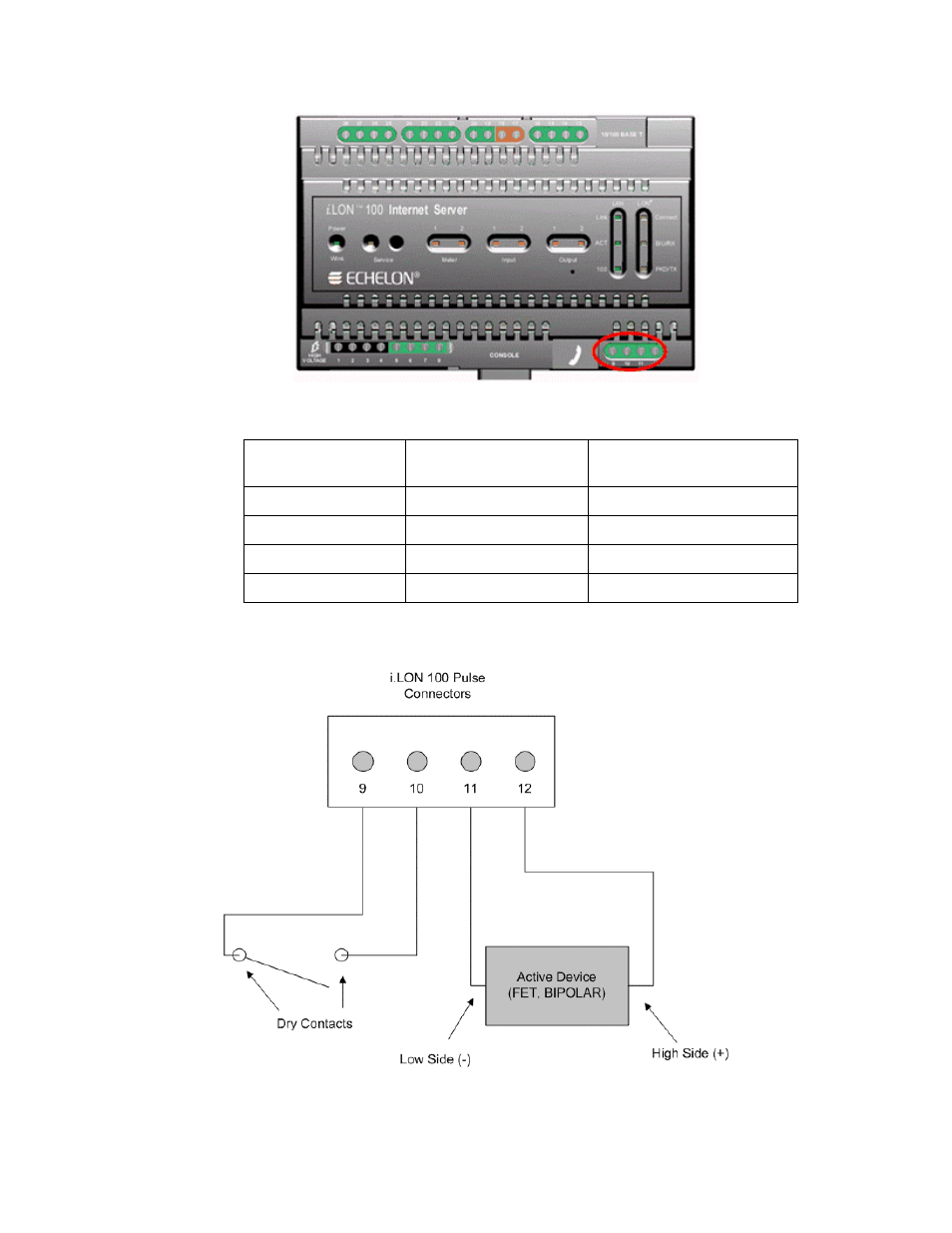

i.LON 100 Server Pulse Meter Screw Terminals
i.LON 100 Server Pulse Meter Connections
Screw Terminal Enclosure Marking Pulse Meter
Connection
9 Meter2- - signal from Meter 2
10 Meter 2+ + signal from Meter 2
11 Meter 1- - signal from Meter 1
12 Meter 1+ + signal from Meter 1
The pulse meter inputs can be connected to either a dry contact relay or to an
active device output that generates pulses by closing the circuit between the two
terminals. Both configurations are shown in the following diagram:
