Page 52
44
FPGA Design for the FTXL Transceiver

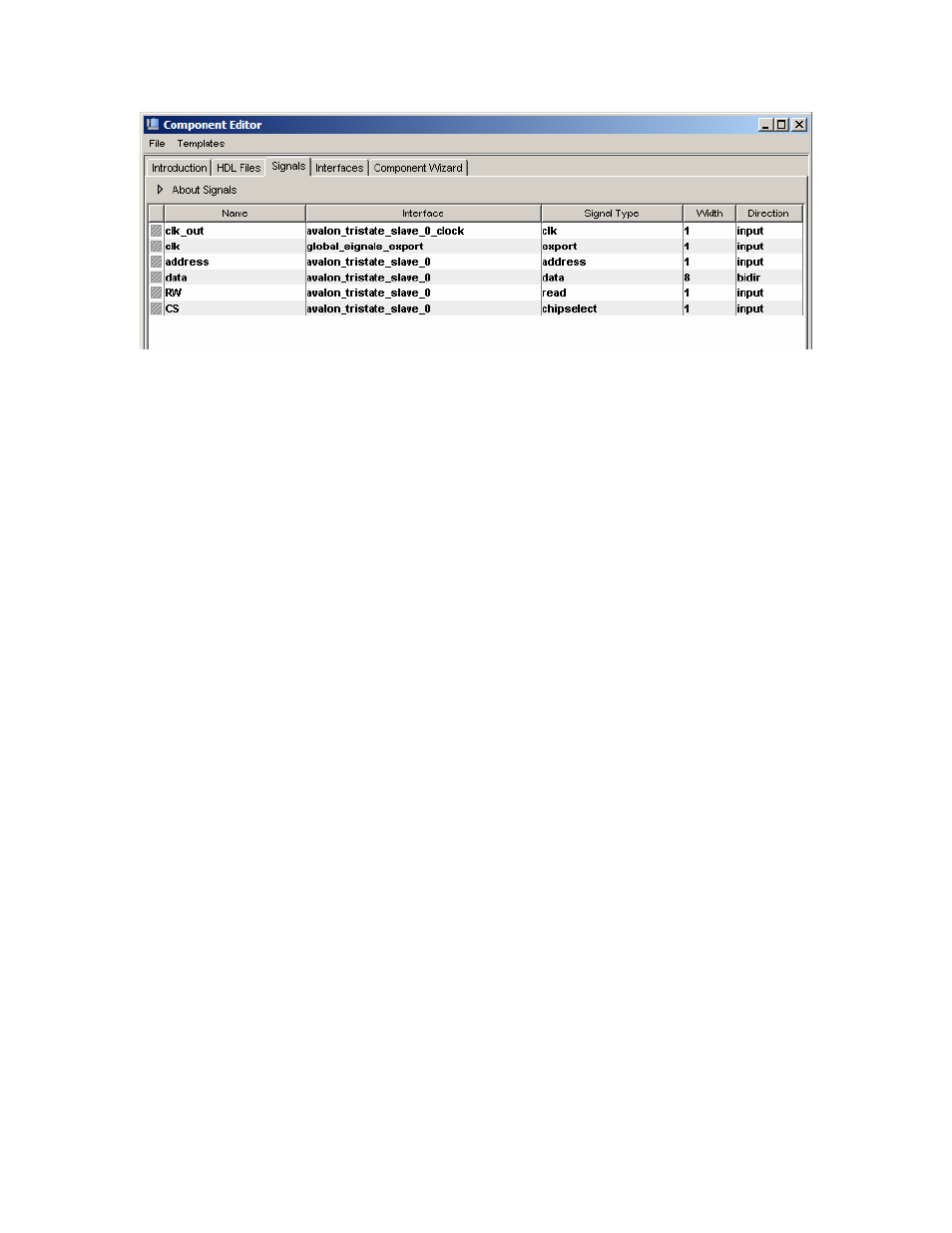

Figure 20. Quartus II Component Editor Dialog for FTXL Parallel I/O Signals
The data and control parts of the interface share a common Avalon tri-state
bridge component. Figure 21 on page 45 shows part of the Quartus II Component
Editor dialog for this component, open to the Interfaces tab, with most of the
interface definitions expanded. Figure 22 on page 46 shows the same dialog,
with the last interface expanded.
