57
HIGH
OFF
LO W
13400 Casefeed Bowl
13473 Motor
13494 Casefeed Funnel - part, Small
22173 Casefeed Funnel Assembly
22174 Belted Magnum/.45-70 Casefeed Funnel Assembly
13539 Power Cord
13540 Motor Cover
13623 1/4-20x5/8 Casefeed
Post Set Screw
13632 Upper Clutch
13688 Adapter Funnel
13703 Washer
13732 Clutch Screws (2)
13736 Lower Clutch
13738 Flat Washer
(2 - #10 Stainless Washers)
13779 Micro Switch
13813 Lock Washer (4)
13859 Tube Spring Clamp
13602 Zener Diode (not shown)
13912 Cover Screw
13954 Micro Switch Screws (2)
14025 Drive Pin (1/8 Roll Pin)
Not Shown
14026 Motor Mount Screw (5)
14038 Micro Switch & Bracket Nut
14137 8 x 1 Cover Screw (4) (not shown)
14393 Casefeed Funnel, Large
15433 Casefeed Port Cuff (not shown)
13812 Lighted Rocker Switch
17808 Casefeed Bowl Insert
17586 8 x 1 1/4 Funnel Screw (2)
17587 8 x 1/4 Phl. Pn. Screw (4)
21072 Large Pistol Plate
21073 Small Pistol Plate
21074 Small Rifle Plate
21075 Large Rifle Plate
29 31 32 30
10
7
29
1
11
9
28
3
8
13
21
18
27
27
4
5
17
2
2
25
15
6
26
20
14
12

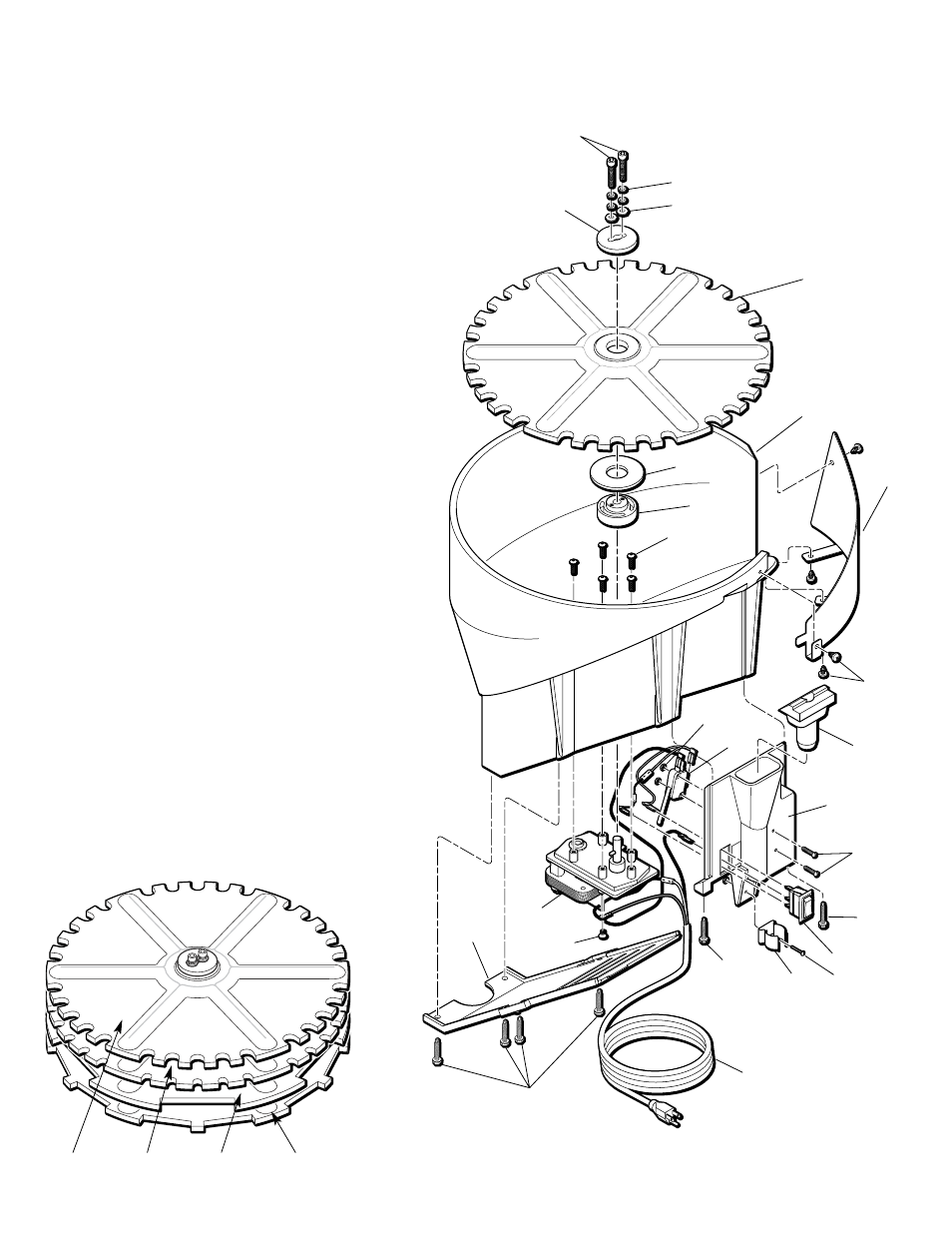

Casefeed Assembly
