D. Station 1 – The decapping
assembly FIG 78:
Dillon decapping assemblies are made
with replaceable decap pins. One extra pin
is included with each sizing die. To replace
a bent or broken pin, simply:

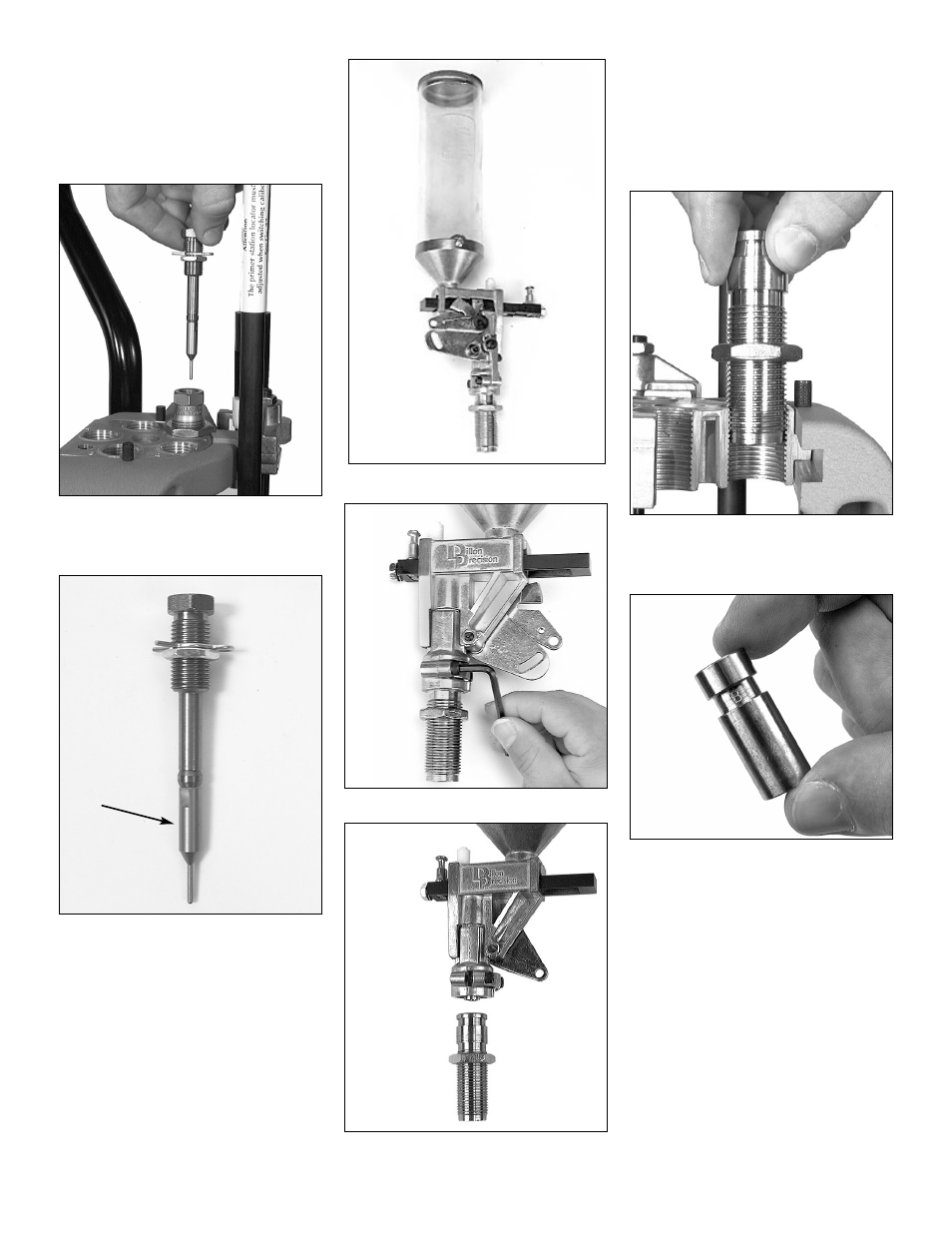

FIG 83
1. Unscrew the decapping assembly
from the top of the die FIG 83.
FIG 84
2. Unscrew the decapping pin (see
arrow FIG 84), and replace it with a
new one.
3. Screw the decapping assembly back
into the sizing die.
Note: The decapping assembly can be
removed from the sizing die without
affecting the adjustment of the siz-
ing die or sizing operation.
Note: The decapping assembly must be
removed when loading primed
cases.
FIG 85
FIG 86
FIG 87
E. Station 2 – Installation
of powder measure assem-
bly FIG 85:
1. Using a 5/32” Allen wrench, loosen
the two collar clamp screws and
remove the powder die FIG 86 & 87.
FIG 88
2. Thread the powder die into Station 2.
Screw it down about halfway FIG 88.
FIG 89
3. Remove the powder funnel from the
bag containing the brass locator but-
tons FIG 89.
