Dillon Precision XL 650 - Manual (Page 49)

50
23
15
16
24
17
18
14
14
14
13
11
12
21
25
26
27
22
19
19
20
Casefeed Body Assembly
see page 52 for more details

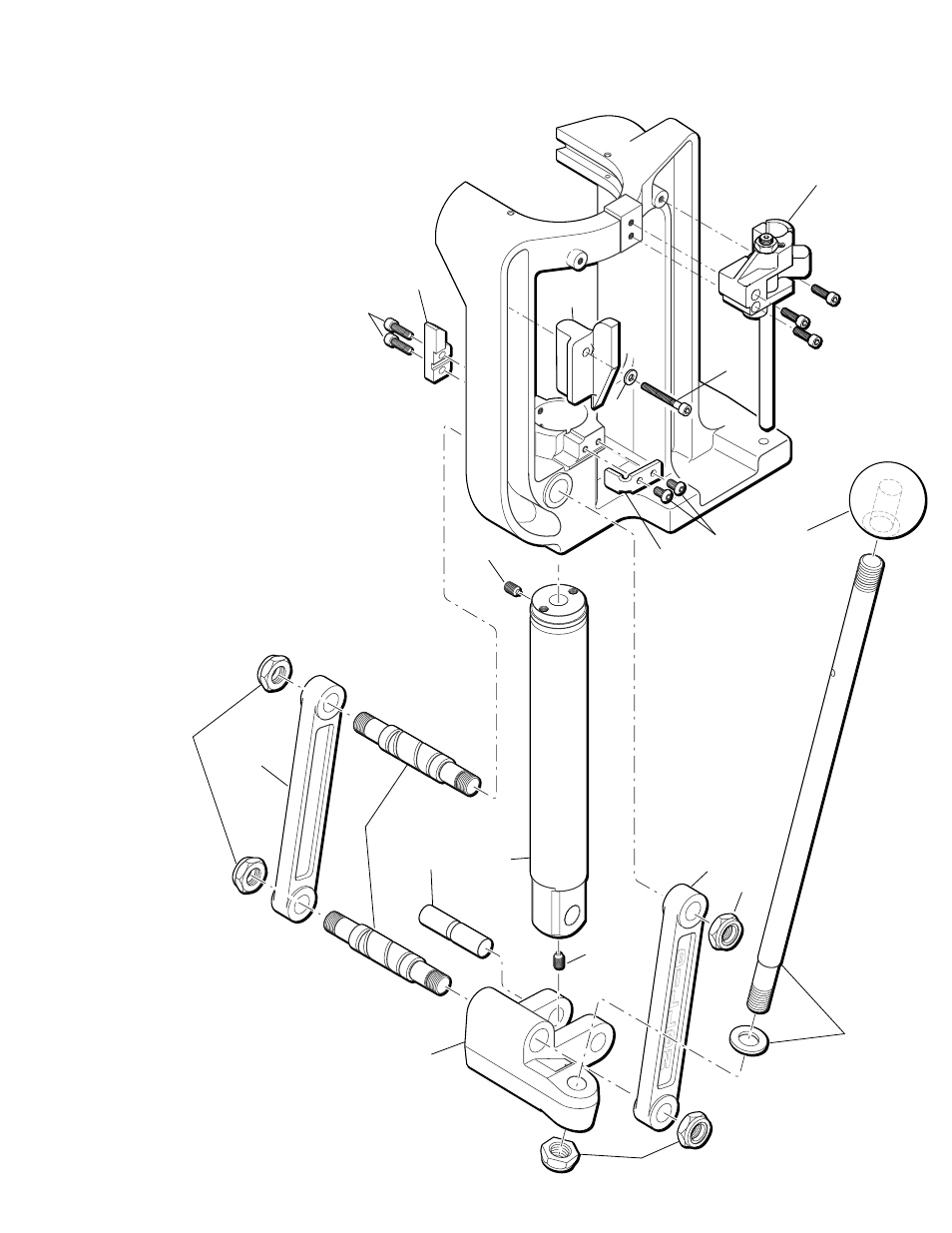

Machine Assembly
11 13830 Mainshaft Pivot Pin
12 13789 Mainshaft Set Screw 1/4-28
13 13674 Crank
14 13841 Nylock Nut
15 13850 Handle Knob
16 13855 Handle Shaft
13704 Handle Washer
20636 Complete Handle Assembly
(shaft, knob, washer and nut)
17 13989 10-24x5/8 SHCS
18 16671 Indexer Block
19 14922 650 Link Arm
20 13700 650 Link Arm Pin
21 13923 Brass Tip Set Screw
22 13485 Mainshaft
23 13488 Punch Support Bracket
24 13895 10-24x3/8 BH Screw
25 13670 Primer Cam
26 13905 Cam Screw
27 13738 Stainless Flat Washer
