Final Assembly

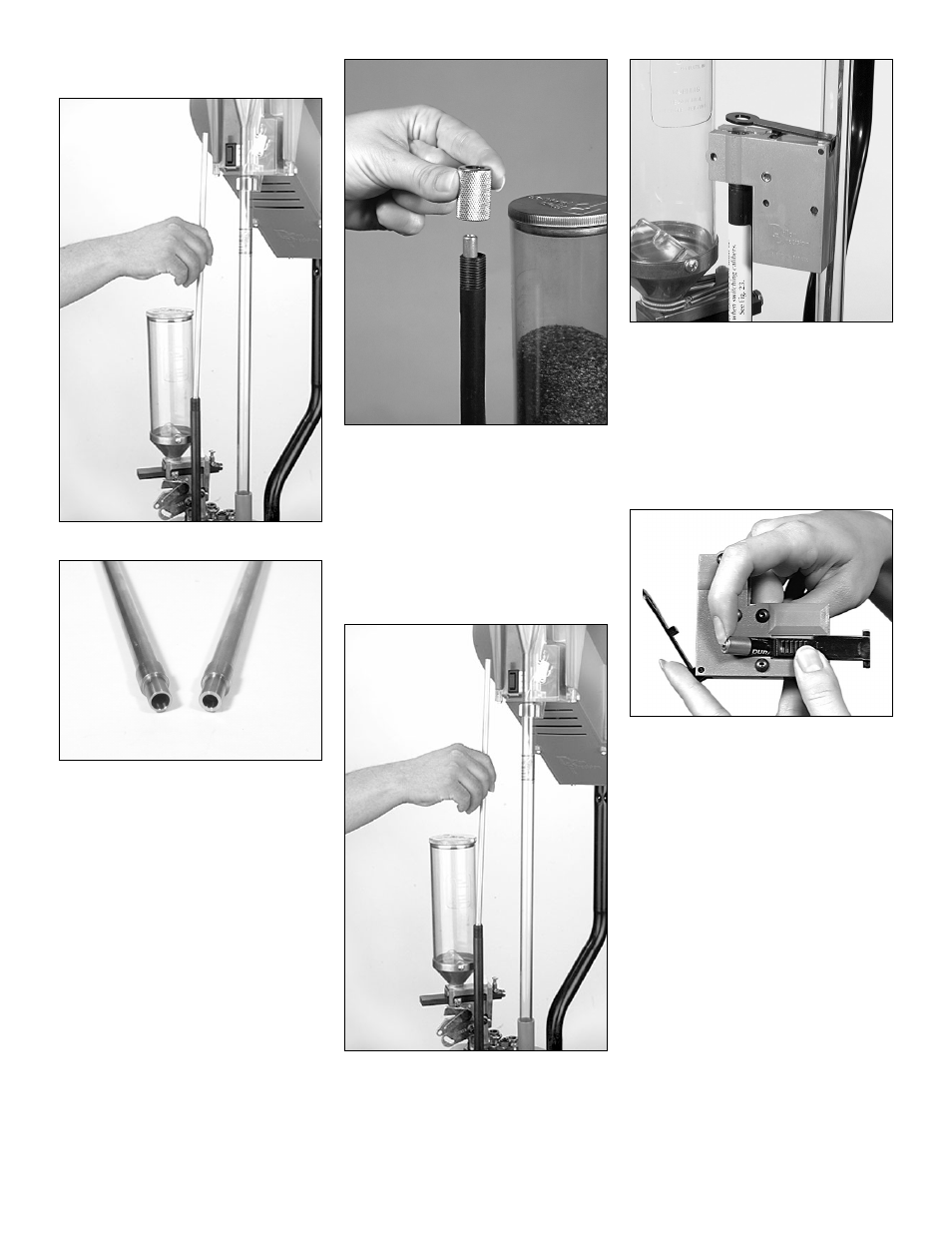

FIG 122
FIG 123
1. The Primer Magazine
The XL 650 comes equipped with an
automatic primer system.The XL 650’s auto-
matic primer system is protected by a steel
shield which is permanently secured to the
primer feed body and must never be
removed. The primer magazine is located
inside of a steel shield FIG 122. Primer
magazines come in two different sizes –
large and small FIG 123. Your machine
comes with both. One comes installed in
the machine, the other is located in the
primer accessory package. If you ordered
your machine set up in a particular caliber,
the magazine installed should be the proper
one for the caliber you selected. However,
you should check to make sure. By compar-
ing the two magazines FIG 123 you will be
able to determine which is large and which
is small.
FIG 124
To change the primer magazine:
1. Remove the primer shield cap FIG
124.
2. Remove the primer magazine by
pulling it straight up FIG 122.
3. Insert the new primer magazine FIG
125 and replace the primer shield
cap.
FIG 125
FIG 126
2. Installation of the Primer
Early Warning System:
FIG 126 The purpose of the Primer Early
Warning system is to warn you when the
primer magazine is low on primers. When
you hear the buzzer, it’s time to reload the
primer magazine tube.
FIG 127
1. Insert the battery into its receptacle
FIG 127 and push the black switch
lever to insure the device is working
properly.
2. Install the Primer Early Warning sys-
tem on top of the primer magazine
shield FIG 126. Lightly tighten the
clamp screw with a 3/32” Allen
wrench.
