GETTING STARTED
1. Unboxing Your
Machine:

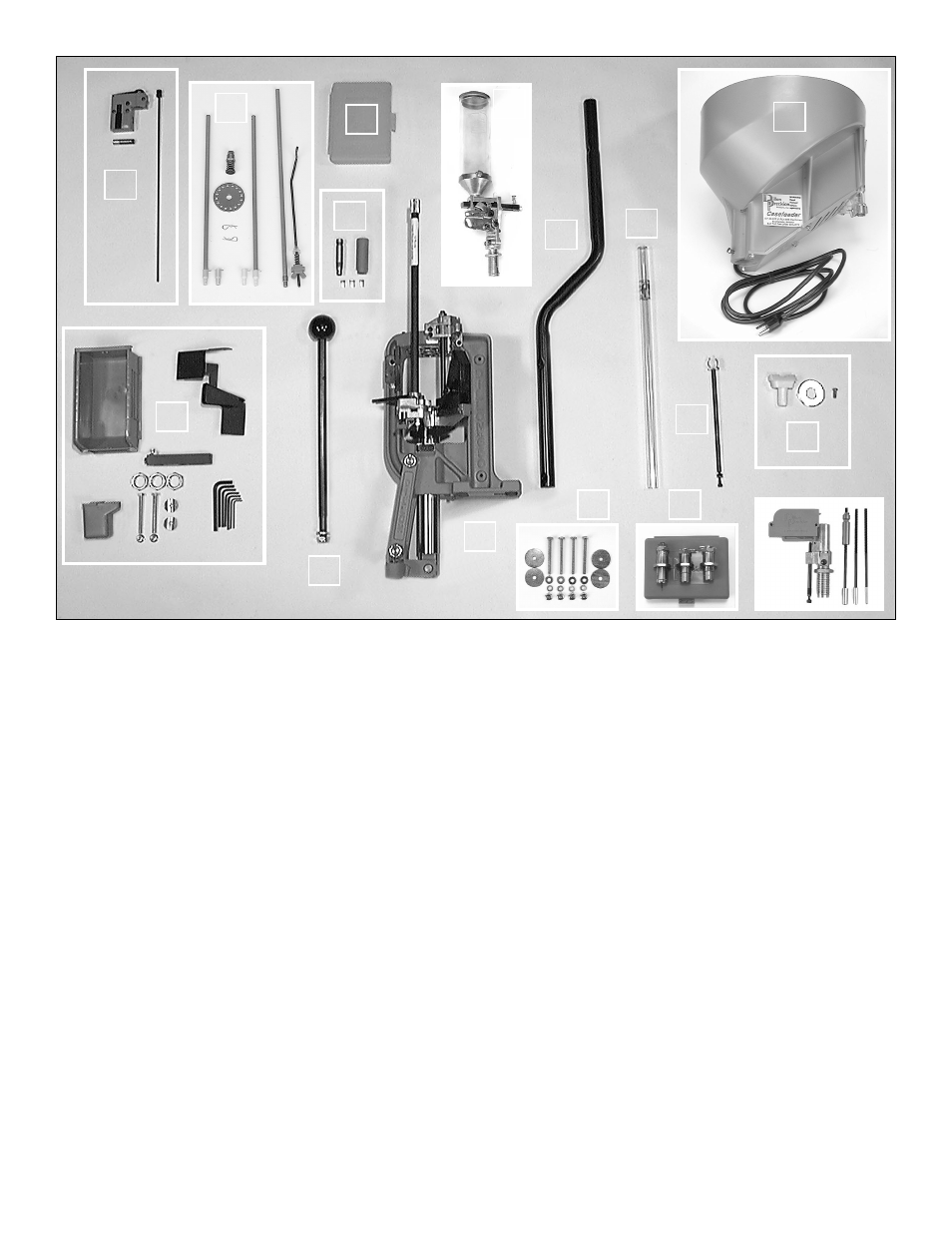

After opening the box, check the con-
tents against the list below. If any items are
missing or damaged, call us right away so
we can send out a replacement at no
charge.
You should have the following:
1. Machine with toolhead and toolhead
retaining pins installed
2. Operating handle assembly with washer
and lock nut
3. Casefeed mounting post
4. Casefeed tube
5. Casefeed support bracket
6. Primer Early Warning System bag
containing:
a. Primer Early Warning System (with
AAA battery included)
b. Primer follower rod (16” black plastic
rod)
7. Primer system parts bag containing:
a. Powder Measure Failsafe assembly
(10” black metal rod w/ hardware)
b. One small and one large primer pickup
tube – 12” aluminum tube each with
plastic tip - green tip (large), yellow tip
(small)
c. One large and one small plastic tip,
(spares)
d. Primer feed disk (2” diameter metal
disk w/16 small holes)
e. Primer magazine (15” aluminum tube
w/ brass tip)
f. Primer punch assembly. (metal
w/spring, approximately 2 x 1/2”)
g. Two steel hitchpins
8. Conversion kit box (empty)
9. Conversion kit includes caliber specific:
a. Powder funnel
b. Casefeed adapter
c. Three locator buttons
d. Shellplate (installed)
e. Station 1 locator (installed)
f. Casefeed arm bushing (installed)
g. Body bushing (installed)
10. Powder system with powder die
11. Accessory box containing:
a. Cartridge bin (blue plastic,
approximately 3 x 4 x7”)
b. Ejected cartridge chute (black
metal, wrapped in bubble pack)
c. Two 1/4” x 20 x 3”: hex bolts and two
1/4” x 20 nuts
d. Two Aluminum tube clamps
e. Spent primer cup (blue plastic)
f. Extra powder bar
g. Three die lockrings (7/8 x 14” thread)
h. Seven Allen wrenches (1/4”, 3/16”,
5/32”, 9/64”, 1/8”, 3/32”, 5/64”)
12. Casefeed assembly (optional)
13. Casefeed accessory bag containing:
a. Casefeed funnel adapter (white)
b. Spacer washer
c. Casefeed mounting post set screw
14. Mounting hardware kit (optional)
15. Three die set (optional)
16. Powder check system (optional)
11
1
16
4
5
3
8
6
7
2
9
13
14
15
12
10
