Primer Early Warning
Buzzer Assembly
#20302

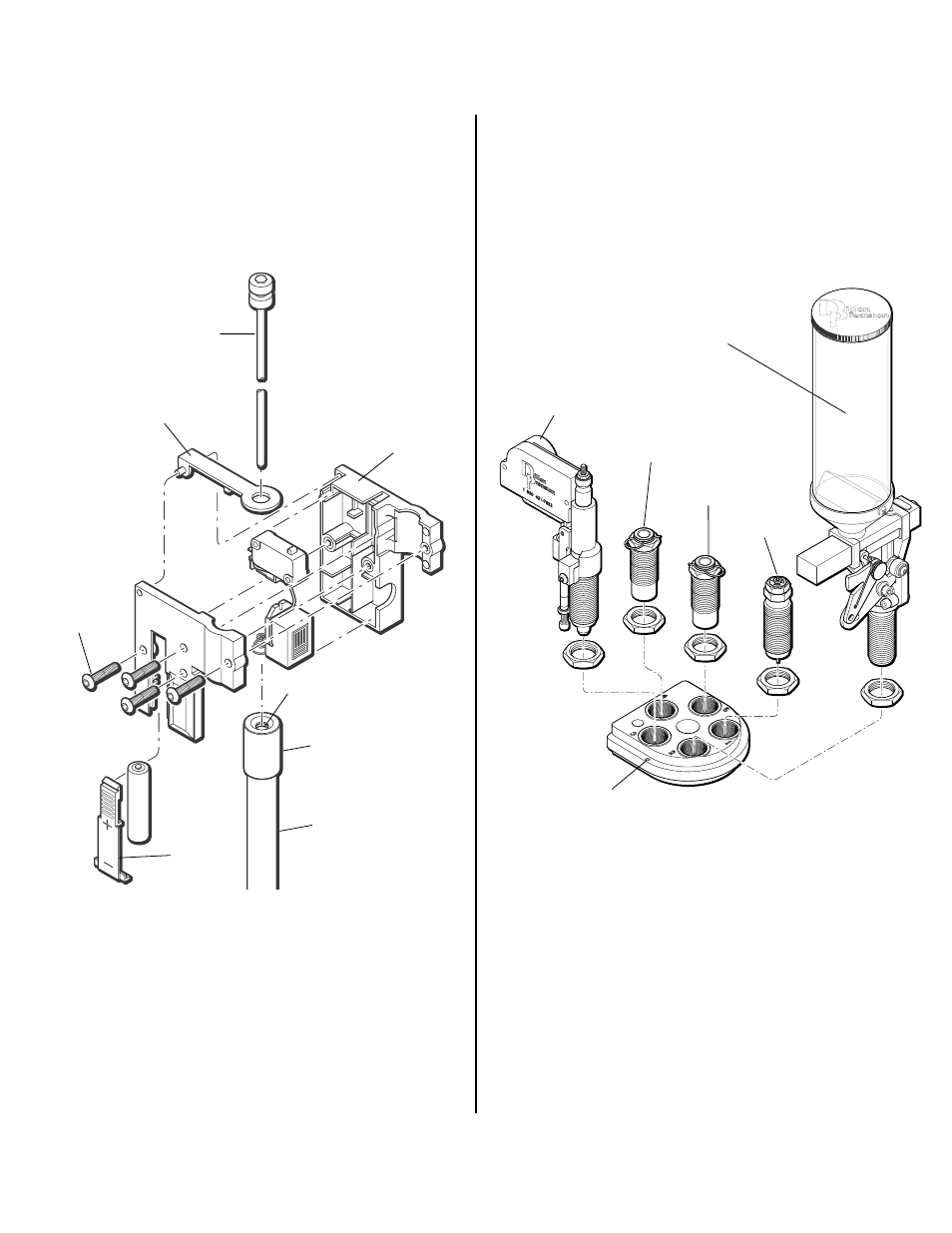

Toolhead Assembly &
Orientation
#13863 - XL650 Toolhead
1 13957 Magazine Shield Cap
2L 22033 Primer Magazine, Large
2S 22032 Primer Magazine, Small
3 21279 Primer Feed Body Housing
4 20302 Early Warning Buzzer
5 13857 Battery Cover
6 13864 Switch Lever
7 14023 Buzzer Housing Screw
8 13707 Follower Rod
Station 1 Sizing Die
Station 2 Powder Measure System
Station 3 Powder Check System
Station 4 Seat Die
Station 5 Crimp Die
1 - Sizing Die
2 - Powder Measure
Toolhead Pin (2)
4 - Seat Die
4
Sold as an
assembly
8
6
5
1
2
3
7 (4 ea)
5 - Crimp Die
3 - Powder Check
System(optional)
