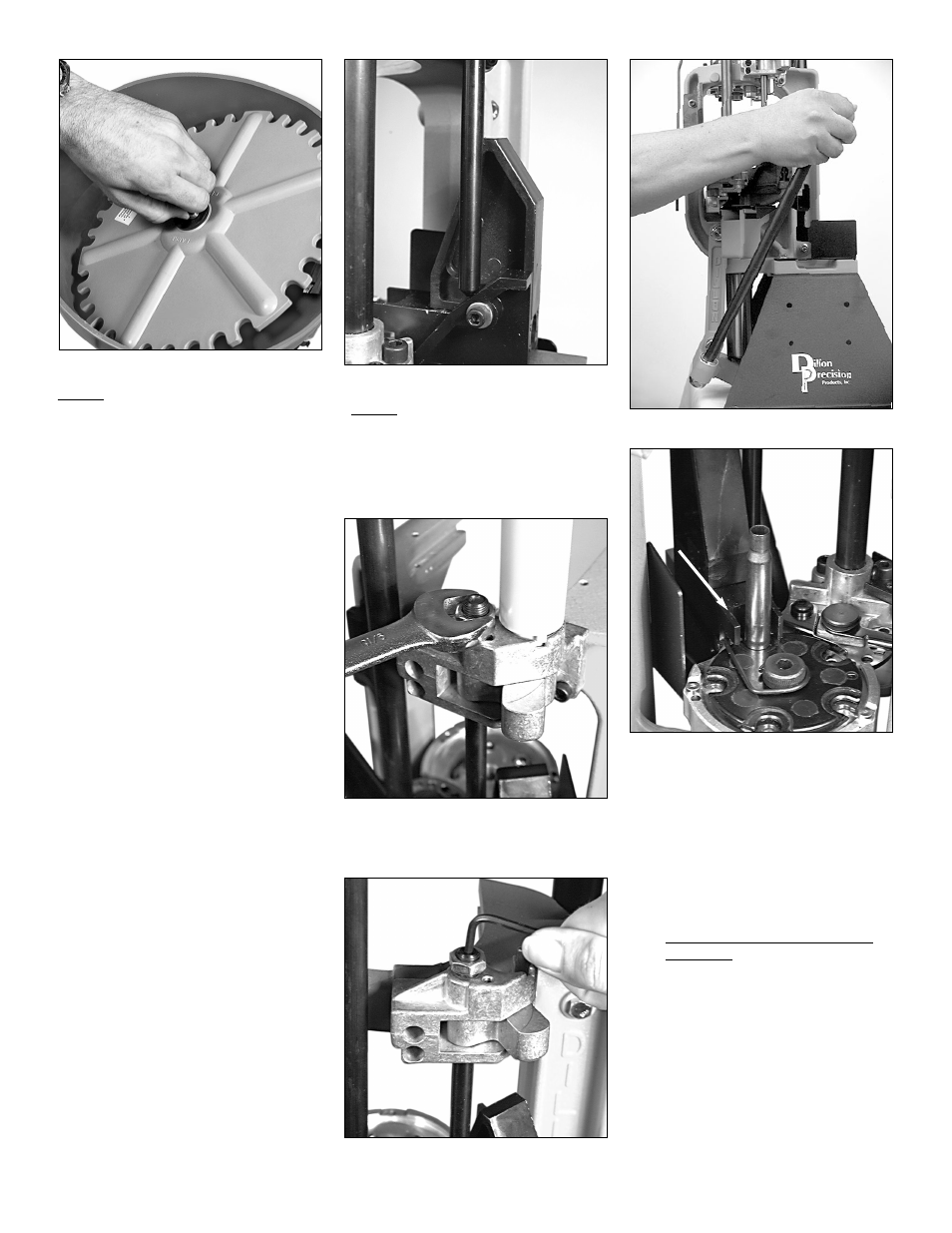

FIG 187
Step 15) Change out the casefeed disc
FIG 187:
Change the casefeed disc only if your cal-
iber conversion requires it.
1. Grip the casefeed plate clutch drive
FIG 187 and pull upward. The case-
feed disc will slip off the motor drive
shaft.
2. To install the new casefeed plate –
place the casefeed plate clutch drive
on the motor driveshaft. Slowly rotate
the disc until the groove on the drive
shaft aligns with the notch in the
plate. The casefeed plate will then
slip down onto the motor shaft and
into place.
Note: About Steps 16 and 17. Both the
camming pin and Station 2 locator
tab do not require removal or
replacement. Instead, depending
on the caliber change, they may
need to be readjusted. Whether or
not these two items need to be
adjusted depends on the diameter
of the base of the case and noth-
ing else. If, for example, you are
converting from 9mm to .45 ACP,
because the diameter of the two
cases are different, both the cam-
ming pin and Station 2 locator
will need to be readjusted. If, on
the other hand, you are converting
from, say, .45 ACP to .30-06 or
.308, you will not have to readjust
these two items – the diameters at
the base of these cases are the
same.
FIG 188
Step 16) Adjusting the camming pin FIG
188 (see previous note):
1. Place a case in both Station 1 and
Station 2. The case in Station 2 must
have a primer – the primer can be
spent or new.
FIG 189
2. Using a 9/16” wrench, loosen the lock
nut FIG 189 on the camming pin.
FIG 190
FIG 191
FIG 192
3.Using a 1/8” Allen wrench, turn the
camming pin clockwise FIG 190 four
or five turns – or enough so that when
you push the handle to the full aft
stop FIG 191, the case insert slide
(see arrow FIG 192) does not push
the case fully into Station 1 FIG 192 –
this will give you a place to start the
adjustment.
4. With the handle pushed against its
full aft stop, start backing the cam-
ming pin out by turning it counter
clockwise FIG 190. Continue to back
the camming out until the case stops
its forward movement into the
shellplate. Once the case becomes
fully inserted into Station 1, stop turn-
ing the camming pin.
