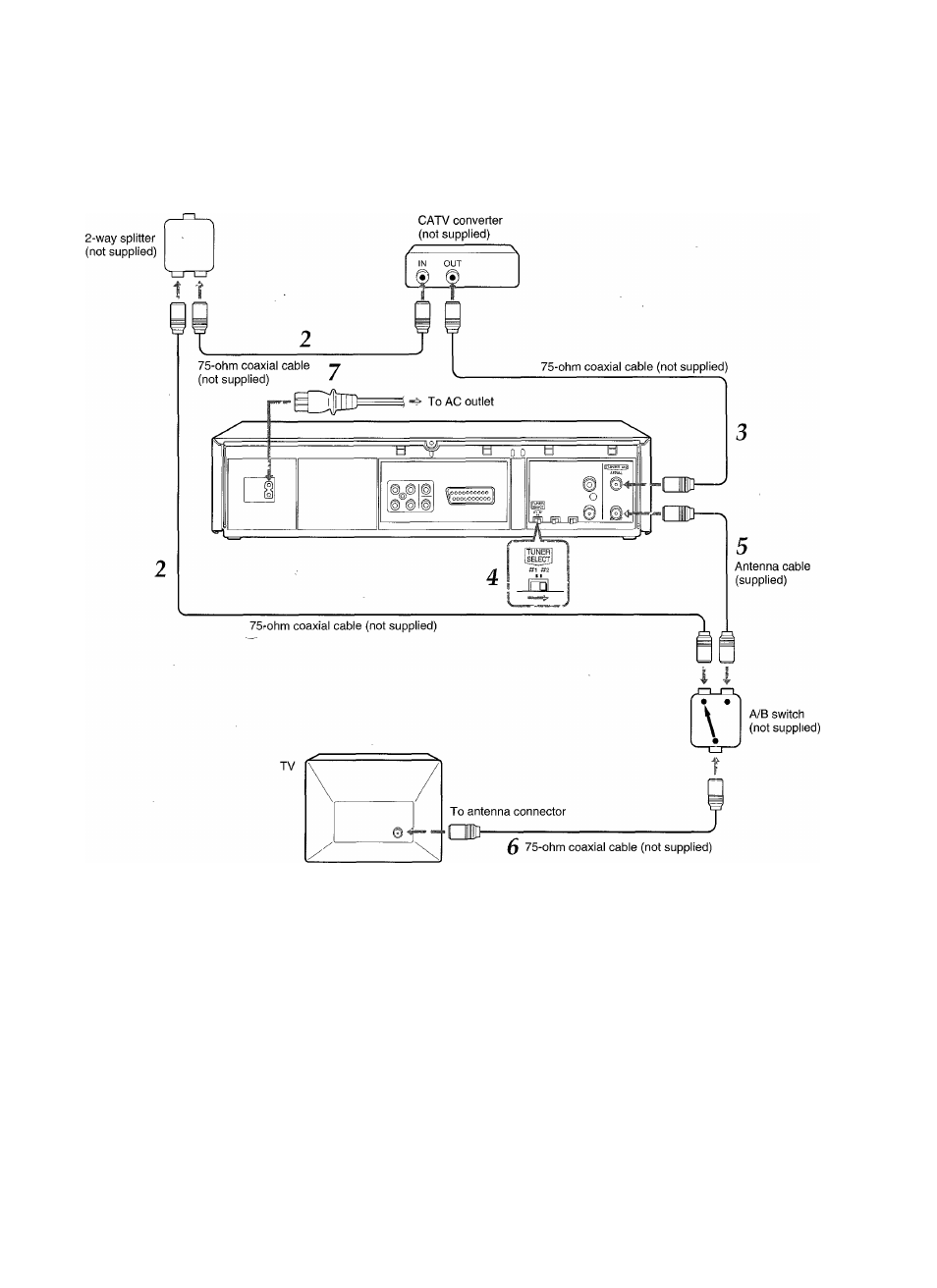

To connect a CATV system using a CATV converter and 2-way splitter
CATV system
1 Connect the cable from the CATV system to the 2-way
splitter.
2
Connect one of the output of the splitter to the input of the
CATV converter, and the other to the A/B switch.
3
Connect the output on the converter to AERIAL of TUNER
#2 on this VCR.
4
Set TUNER SELECT to #2.
Change the TUNER SELECT only when power is turned off.
When you change TUNER SELECT with the power turned on, the
power will be cut off.
5
Connect RF OUT of TUNER #2 on this VCR to the A/B
switch using the suppiied antenna cabie.
6 Connect the MB switch to the antenna connector on your
TV.
7
Connect AC inlet of the VCR and the AC outlet with the
supplied AC cord.
5 ENGLISH
