Fig. 5 - 30hh055 dimensional data, 30hh,hj, Carrier – Carrier 30HH User Manual
Page 5: Installation
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
Carrier
INSTALLATION
30HH,HJ

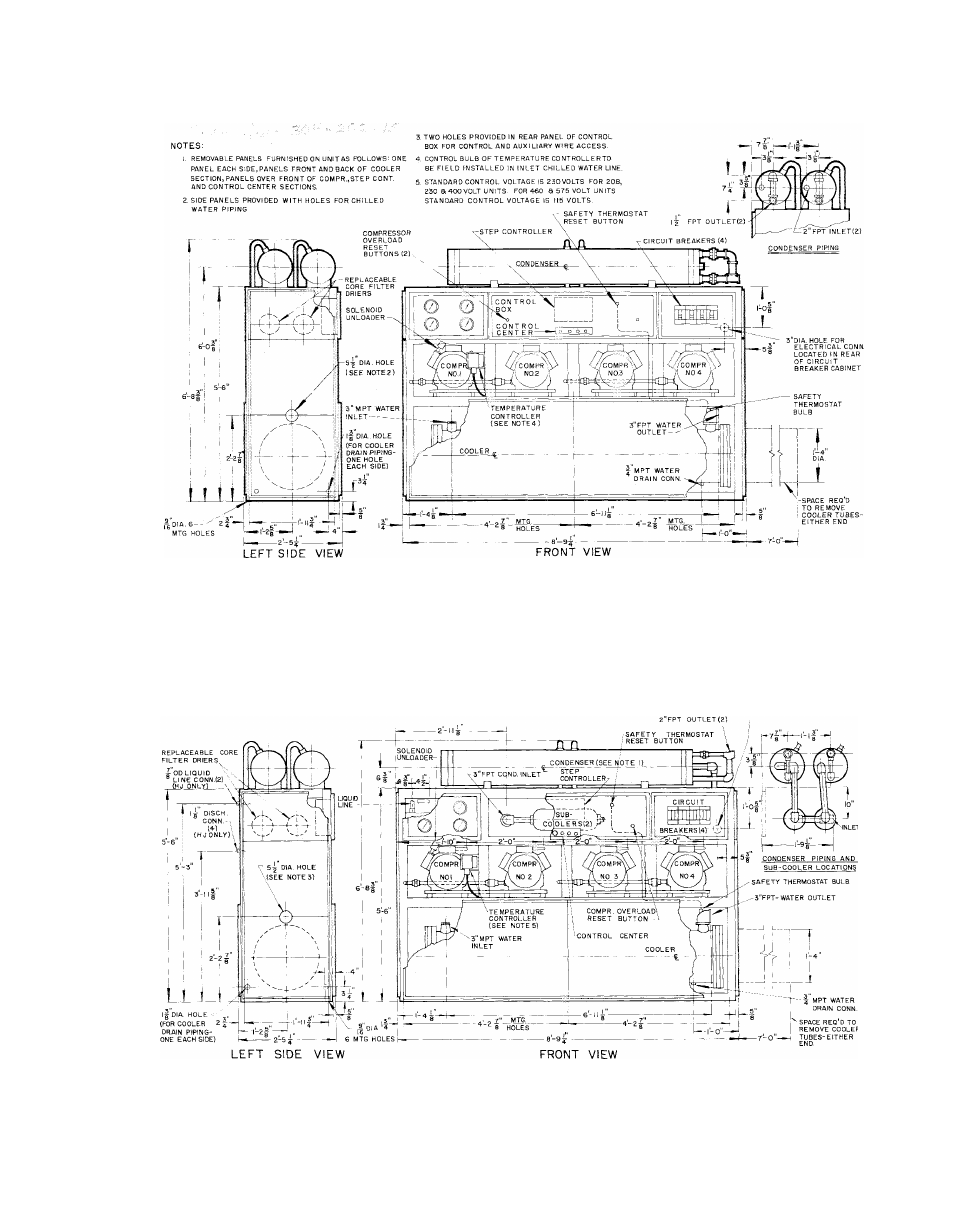

Fig. 5 - 30HH055 Dimensional Data
n o t e s
:
1. CONDENSER AND ATTACHED PIPING AS SHOWN ARE FOR
30HH MODEL ONLY.
2. REMOVABLE PANELS FURNISHED ON UNIT AS FOLLOWS. ONE
PANEL EACH SIDE, PANELS FRONT AND BACK OF COOLER
SECTION, PANELS OVER FRONT OF COMPR., STEP CONT.
AND CONTROL CENTER SECTIONS.
3. SIDE PANELS PROVIDED WITH HOLES FOR CHILLED
WATER PIPING.
4. TWO HOLES PROVIDED IN REAR PANEL OF CONTROL
BOX FOR CONTROL AND AUXILIARY WIRE ACCESS
5. CONTROL BULB OF TEMPERATURE CONTROLLER TO
BE FIELD INSTALLED IN INLET CHILLED WATER LINE.
6. STANDARD CONTROL VOLTAGE IS 230 VOLTS FOR
208, 230 8 400 VOLT UNITS FOR 460 8575 VOLT
UNITS STANDARD CONTROL VOLTAGE IS 115
VOLTS.
-3’’DIA.H0LE FOR
ELECTRICAL CONN
LOCATED IN REAR
OF CIRCUIT BREAKER
CABINET
Fig. 6 - 30HH,HJ055 Dimensional Data
