MiUNÎENANCE

30HH,HJ

than the vent can exhaust the gases generated by
the chemical action. When the condenser is full,
allow the solution to remain overnight. Drain the
condenser and flush it with clean water.

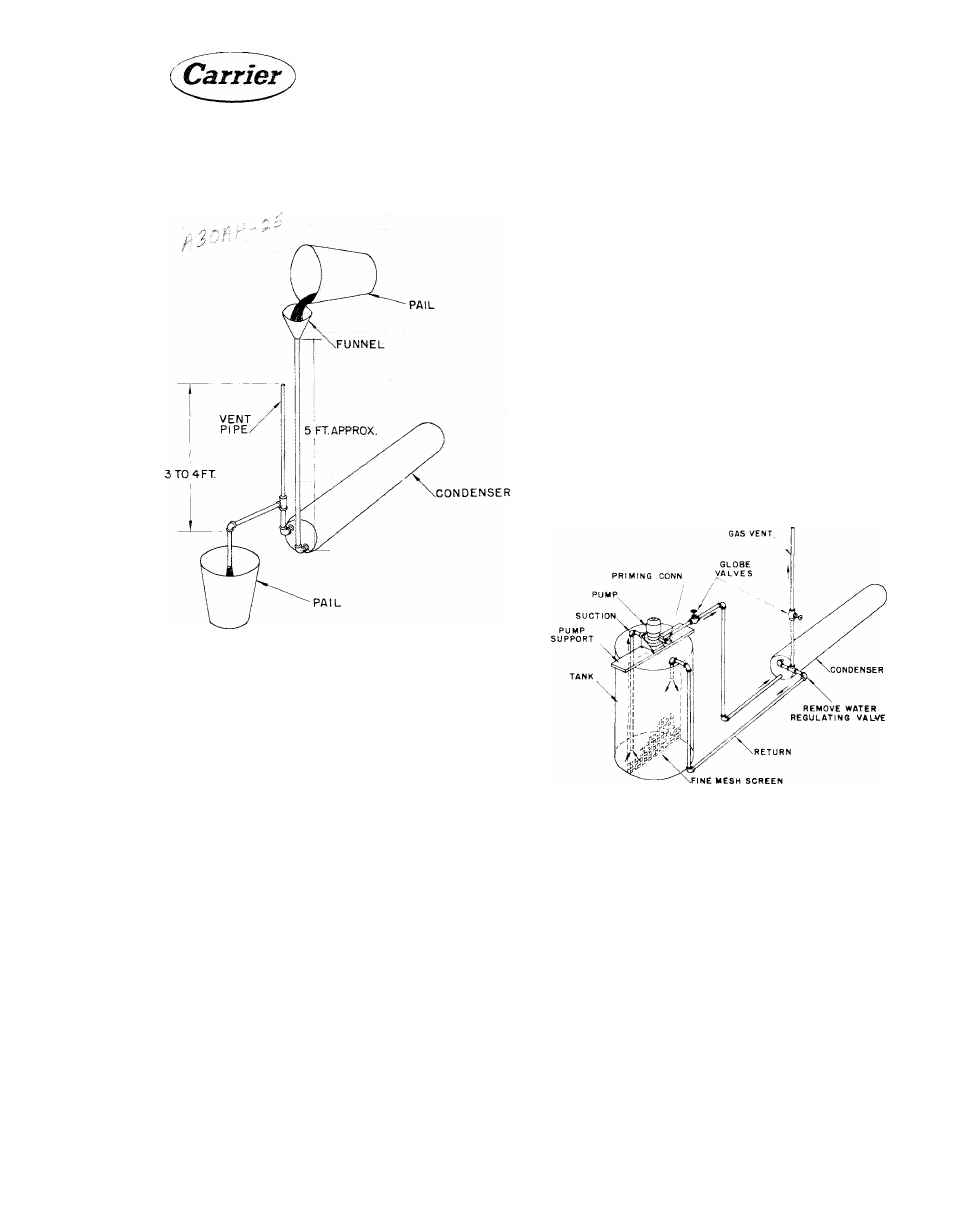

Fig. 44 - Gravity Circulation

The Forced Circulation Method of Cleaning

The

forced

circulation

method

of

cleaning

is

shown in Fig. ,45.

F ully open the vent pipe valve while the condenser
is being filled with solution. It may be closed
when the condenser is full and the pump is oper­
ating.

The valve in the supply line can be used to regu­

late the flow of solution to the condenser. If the

pump is the nonoverloading type, the valve may

be fully closed when the pump is running, should
it be necessary.

For the average scale deposit, allow the solution

to remain in the condenser overnight. For heavy

deposits,

allow

twenty-four

hours.

Drain

the

condenser and flush it with clean water.

Repair

The

shell

and

coil

condensers

are

not

easily

repaired in the field and should be replaced in
case of leakage. The shell and tube condensers
are

equipped

with

rolled

in

tubes.

Tools

are

available

for

replacing

the

tubes

in

case

of

leakage.

Fig. 45 - Forced Circulation

39
