Carrier

INSTALLATION

30HH,HJ

MOISTURE AND LIQUID INDICATOR

The

moisture-liquid

indicator

serves

two

pur­

poses. It shows that a sufficient charge of re­

frigerant is in the system when a clearflow of
liquid refrigerant can be seen in the indicator.
Bubbles in the flowing refrigerant indicate that
the unit is undercharged or the presence of non-
condensables.

The

moisture-liquid

indicator

also

provides

a

constant check on the moisture in the system.

The

presence

of

moisture

in

the

system,

will

be shown by a change of color of the indicator.
The

approximate

moisture

content

is

measured

in parts per million (PPM).

Color

PPM - Moisture

Green

Below 45

Chartreuse

45-130

(Caution)

Yellow (Wet)

Above 130

At the first signs of moisture in the system, the

filter-drier should be changed.

IMPORTANT: With the machine run­

ning, the indicating element must be in

contact with the LIQUID refrigerant to
give a true moisture indication.

On units shipped from the factory with a holding
charge

only,

the

moisture-liquid

indicator

will

be in contact with vapor only. Under these con­
ditions the element may be in any one of three
colors and will not indicate the true moisture
content.

A

chartreuse

or

yellow

color

under

these conditions does not indicate that the system

is wet. To determine the actual moisture con­

dition, the system should be running and com­
pletely charged.

i A

MOISTURE
INDICATOR

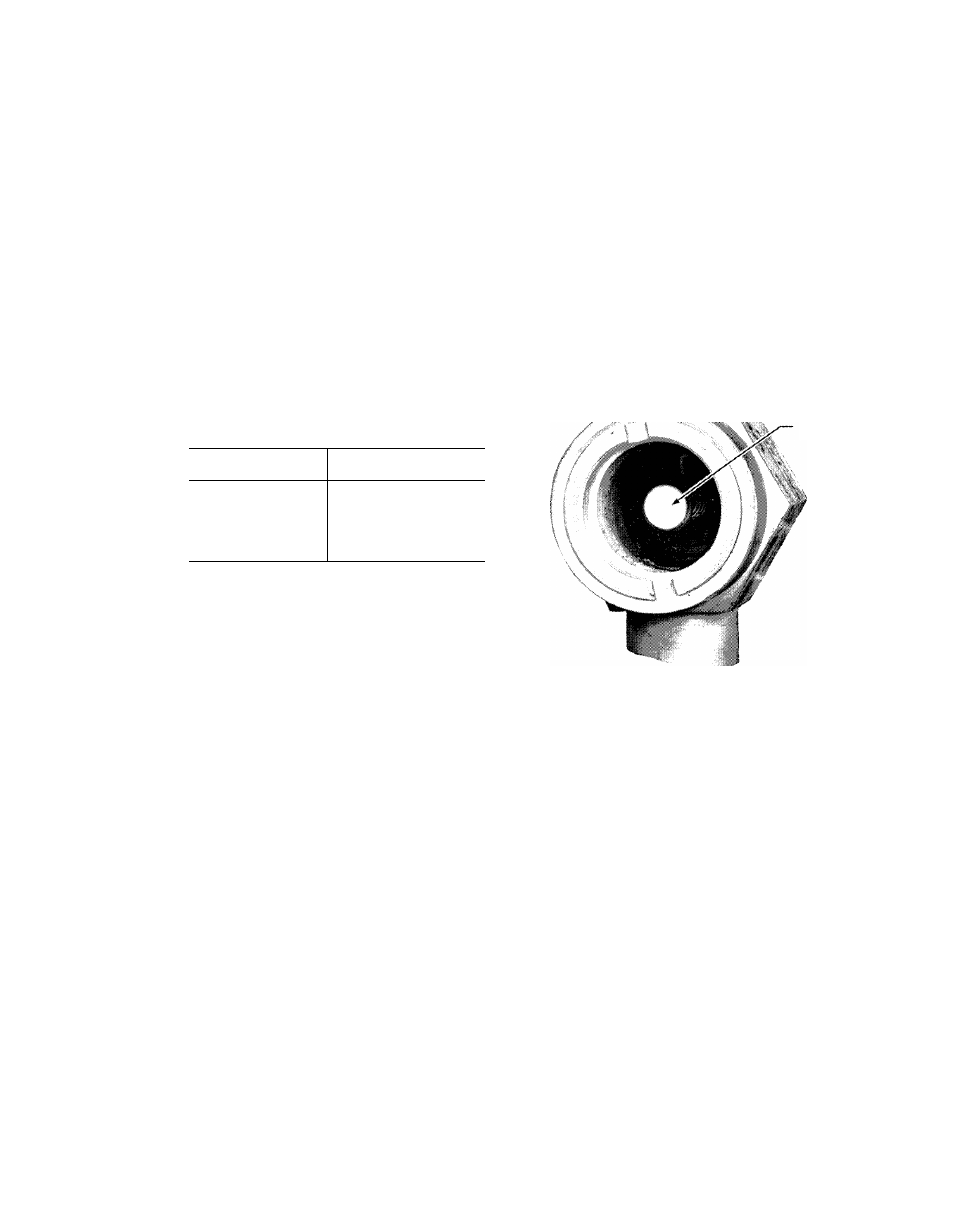

Fig. 42 - Moisture-Liquid Indicator

37
