INSTALLATION
30HH,HJ
N O T E S ;
1. CONDENSER AND ATTACHED PIPING AS SHOWN ARE FOR
30HH MODEL ONLY.
2. REMOVABLE PANELS FURNISHED ON UN IT AS FOLLOWS'. ONE
PANEL EACH SIDE, PANELS FRONT AND BACK OF COOLER
SECTION, PANELS OVER FRONT OF COMPR., STEP CONT
AND CONTROL CENTER SECTIONS.
3. SIDE PANELS PROVIDED WITH HOLES FOR CHILLED
WATER PIPING.
. TWO HOLES PROVIDED IN REAR PANEL OF CONTROL
BOX FOR CONTROL AND AUXILIARY WIRE ACCESS.
CONTROL BULB OF TEMPERATURE CONTROLLER TO
BE FIELD INSTALLED IN INLET CHILLED WATER LINE.
STANDARD CON T ROL VOLTAGE IS 230 VOLTS FOR 208,
230 aAOOVOLT UNITS FOR 460 a 575 VOLT UNITS
STANDARD CONTROL VOLTAGE IS 115 VOLTS.
LEFT SiDE VIEW
FRONT VIEW

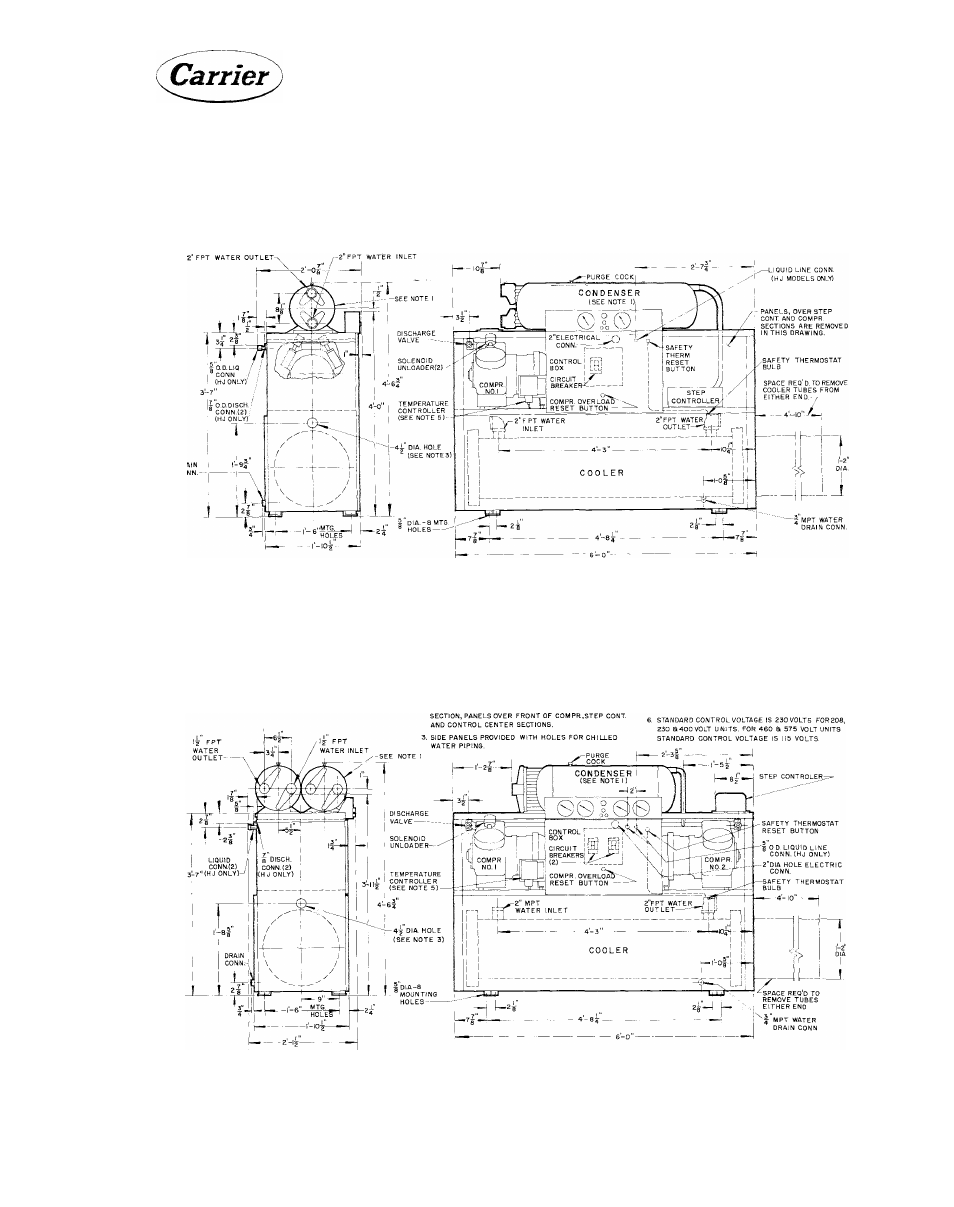

Fig. 1 - 30HH,HJ015 Dimensiona! Data
I
.I
N O T E S ;
I. CONDENSER AND ATTACHED PIPING AS SHOWN ARE FOR
30HH MODEL ONLY.
2 REMOVABLE PANELS FURN ISHED ON UNIT AS FOLLOWSlONE
PANEL EACH SI DE, PANELS FRONT AND BACK OF COOLER
. TWO HOLES PROVIDED IN REAR PANEL OF CONTROL
BOX FOR CONTROL AND AUXILIARY WIRE ACCESS.
. CONTROL BULB OF TEMPERATURE CONTROLLER TO
BE FIELD INSTALLED IN INLET CHILLED WATER LINE.
LEFT SIDE VIEW
FRONT VIEW
Fig. 2 - 30HH,HJ020 Dimensional Data
