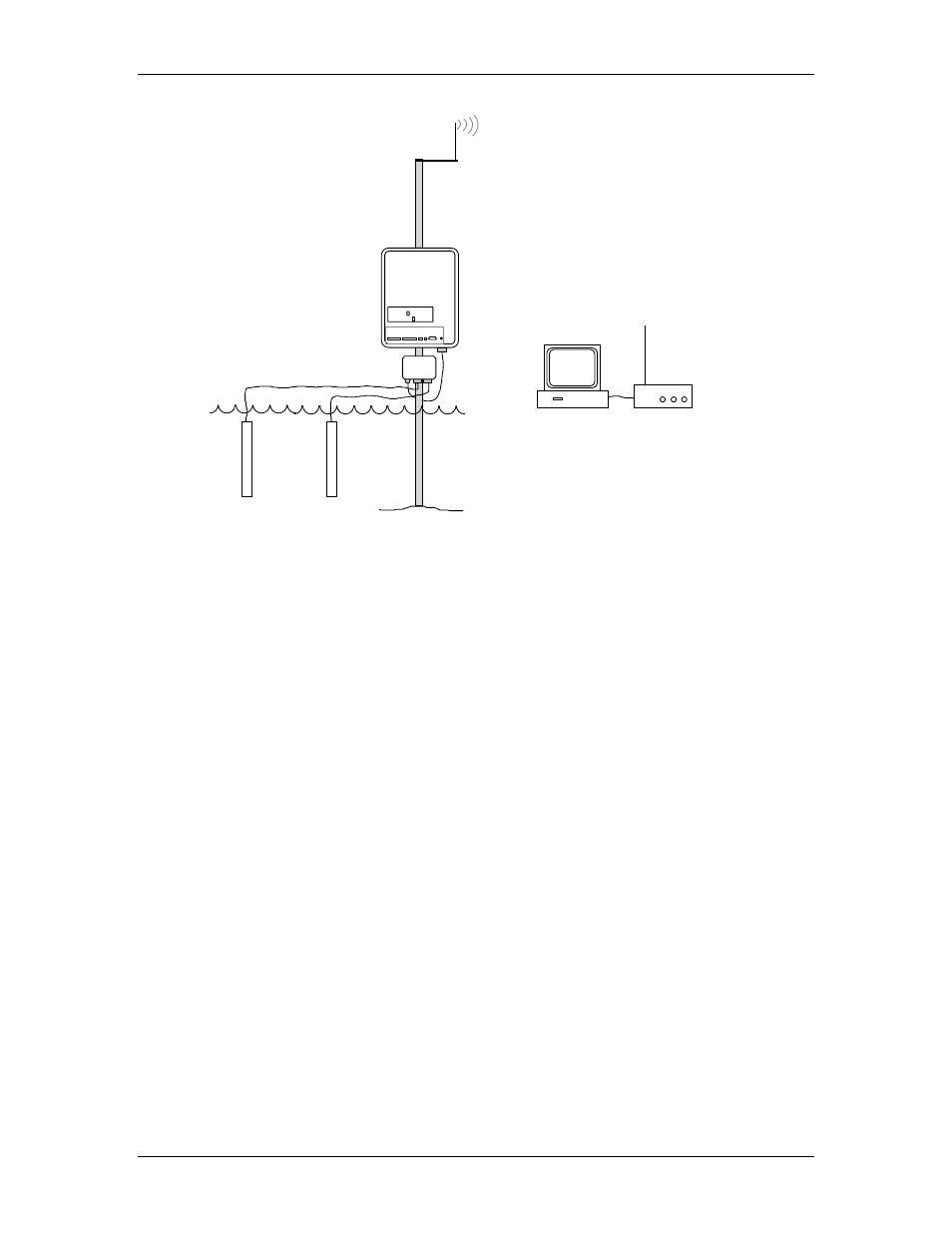

Figure 5.3 2-Sonde Connection Near to the 6200 DCP
Two Sondes Deployed Near the 6200 DCP
If two sondes are required and are near to the 6200 DCP installation, then the 6504 Breakout Box
with a 6507 Patch Cable provide all you need to connect these sondes. The breakout box must be
mounted within 6 ft (2 m) of the 6200 DCP and the sondes close enough that their cables can
reach the breakout box. Standard cables can be ordered up to 200 ft. (60 m). The breakout box
has two MS-8 connectors for weatherproof connections. The patch cable is connected to the
breakout box using a feed-through gland. The “flying leads” attach to the terminal connector
provided with the breakout box. Refer to Figure 5.5 for the SDI-12 pin out.
