61
98-05188 R2 www.teejet.com
Gibraltar
Guernsey
Helsinki
Isle of Man
Istanbul
Jersey
Kaliningrad
Kiev
Lisbon
Ljubljana
London
Luxembourg
Madrid
Malta
Mariehamn
Minsk
Monaco
Moscow
Oslo
Paris
Podgorica
Prague
Riga
Rome
Samara
San Marino
Sarajevo
Simferopol
Skopje
Sofi a
Stockholm
Tallinn
Tirane
Uzhgorod
Vaduz
Vatican
Vienna
Vilnius
Volgograd
Warsaw
Zagreb
Zaporozhye
Zurich
Indian
Antananarivo
Chagos
Christmas
Cocos
Comoro
Kerguelen
Mahe
Maldives
Mauritius
Mayotte
Reunion
Pacifi c
Apia
Auckland
Chatham
Easter
Efate
Enderbury
Fakaofo
Fiji
Funafuti
Galapagos
Gambier
Guadalcanal
Guam
Honolulu
Johnston
Kiritimati
Kosrae
Kwajalein
Majuro
Marquesas
Midway
Nauru
Niue
Norfolk
Noumea
Pago Pago
Palau
Pitcairn
Ponape
Port Moresby
Rarotonga
Saipan
Tahiti
Tarawa
Tongatapu
Truk
Wake
Wallis

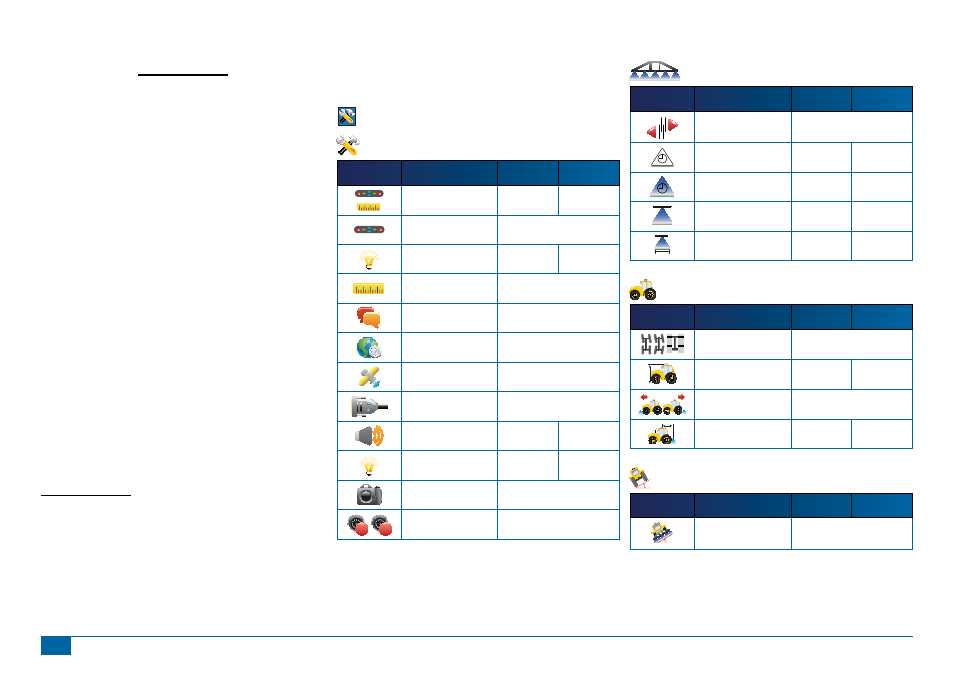

APPENDIX C - FACTORY SETTINGS &
RANGES
Unit Setup
System Setup
Icon Description Factory
Setting
Range
LED Spacing. 0.46 m 0.01 - 3.0 m
Display Mode. Vehicle
LED Brightness. 50 0 - 100
Units. US
Language. English
Time Zone. America - Chicago
GPS Type. GPS Only
GPS Port. Internal
Volume. 50 0 - 100
LCD Brightness. 50 0 - 100
Screenshot. Disabled
A B
Cameras. Normal
BoomPilot/Single Boom Setup
Icon Description Factory
Setting
Range
Overlap. 100%
Delay Off. 1.0 s 0.0-10.0
seconds
Delay On. 1.0 s 0.0-10.0
seconds
#
Number of Boom
Sections. 1 1-15
Boom Section Width(s). 0.9 m 0.9 - 75.0 m
Vehicle Setup
Icon Description Factory
Setting
Range
Vehicle Type. Front Wheel
Antenna Height. 3.8 m 0.0 - 10.0 m
Direction to Boom. Forward
Boom Offset Distance. 0.0 m 0.0 - 50.0 m
Tilt Gyro Module Setup
Icon Description Factory
Setting
Range
Tilt Correction On/Off. On
