23
98-05188 R2 www.teejet.com

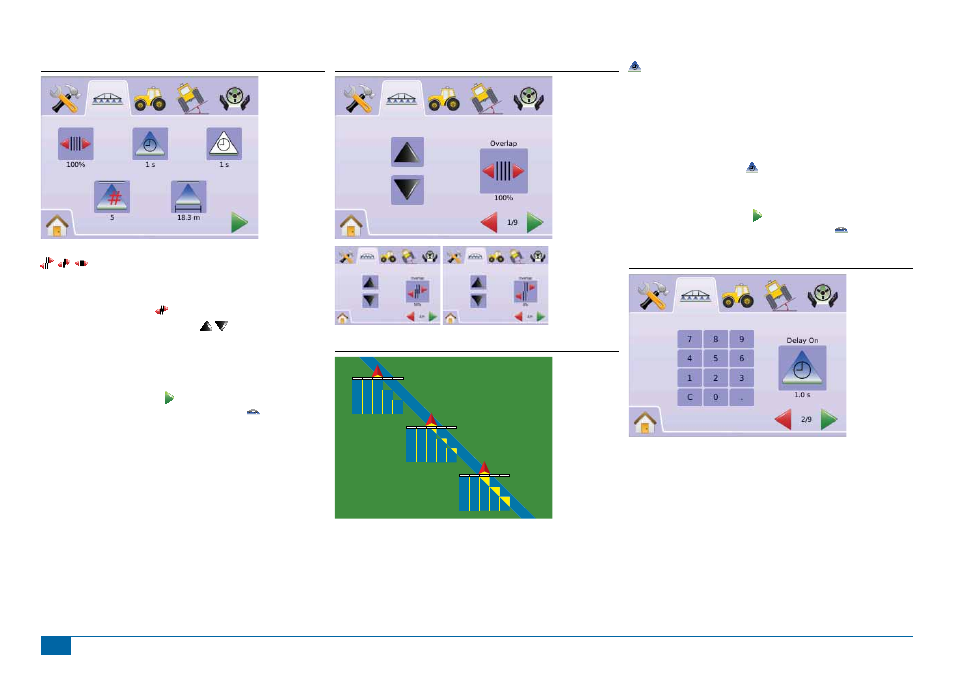

Figure 2-38: Boom Section Setup (SDM detected)
Overlap
Overlap determines the amount of overlap allowed when the boom
sections are turned on and off using BoomPilot.
1. Press OVERLAP ICON .
2. Press UP/DOWN ARROW ICONS to change between:
►0%
►50%
►100%
Press
►PAGE RIGHT ARROW to proceed to Delay On.
►BOOMPILOT/SINGLE BOOM SETUP TAB to return to
main Boom Section Setup screen.
Figure 2-39: Overlap
Figure 2-40: Examples of Overlap
100%
50%
0%
Delay On
Delay On functions as a “look ahead” for establishing the timing
for the boom section valves to switch on exactly when entering an
area that has not been applied. If the boom turns on too soon when
entering a non-applied area, decrease the Delay On setting. If the
boom turns on too late when entering a non-applied area, increase
the Delay On setting. Range is 0.0 - 10.0 seconds.
1. Press DELAY ON ICON .
2. Use the entry screen to establish delay time.
Press
►PAGE RIGHT ARROW to proceed to Delay Off.
►BOOMPILOT/SINGLE BOOM SETUP TAB to return to
main Boom Section Setup screen.
Figure 2-41: Delay On
