27
98-05188 R2 www.teejet.com

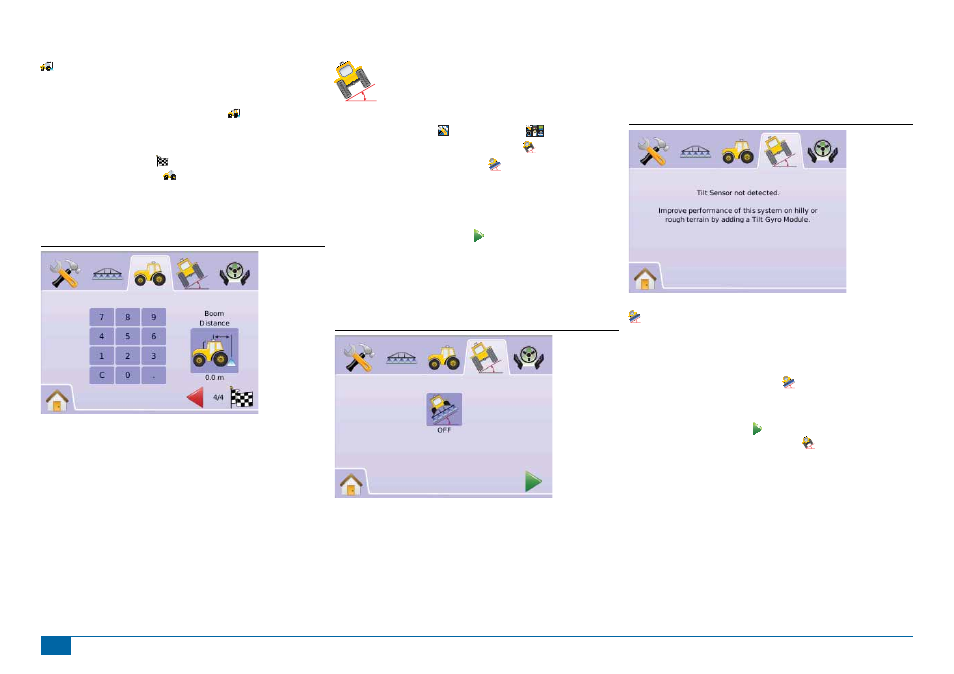

Boom Offset Distance
Boom Offset Distance defi nes the distance from the GPS antenna to
the boom. Range is 0.0 - 50.0 metres.
1. Press BOOM OFFSET DISTANCE ICON .
2. Use the entry screen to establish the offset distance.
3. Press
►CHECKERED FLAG to complete Vehicle Setup.
►VEHICLE SETUP TAB to return to main Vehicle Setup
screen.
NOTE: This setting is required for FieldPilot and Tilt Sensor
Operation, as well as proper BoomPilot operation.
Figure 2-51: Boom Offset Distance
TILT GYRO MODULE SETUP
The Tilt Gyro Module (TGM) is used to calibrate the gyro,
allowing for tilt correction for application on hilly or sloped
terrain.
1. Select UNIT SETUP from Home Menu .
2. Press TILT GYRO MODULE SETUP TAB
3. Press TILT CORRECTION ICON
4. Select
►On – tilt correction will be applied to the GPS antenna position
►Off – tilt correction will not be applied
OR
Press PAGE RIGHT ARROW to cycle through all settings.
NOTE: If FieldPilot is being used, a Tilt Gyro Module is built into the
system.
NOTE: Antenna Height must be entered prior to Tilt Calibration.
NOTE: Option label is current setting.
Figure 2-52: Tilt Correction
Tilt Correction Unavailable
If a TGM or SCM is not connected, calibration options will not be
available.
Figure 2-53: Tilt Gyro Module Not Detected
Tilt Correction On and Calibrate
Tilt Correction On and calibration is used to turn on/off Tilt Gyro
Module (TGM) and to calibrate the gyro.
On/Off
1. Press TILT CORRECTION ICON
2. Select “On”
3. Press
►PAGE RIGHT ARROW to Level Tilt Position 1.
►TILT GYRO MODULE SETUP TAB to return to main Tilt
Gyro Module Setup screen.
