36

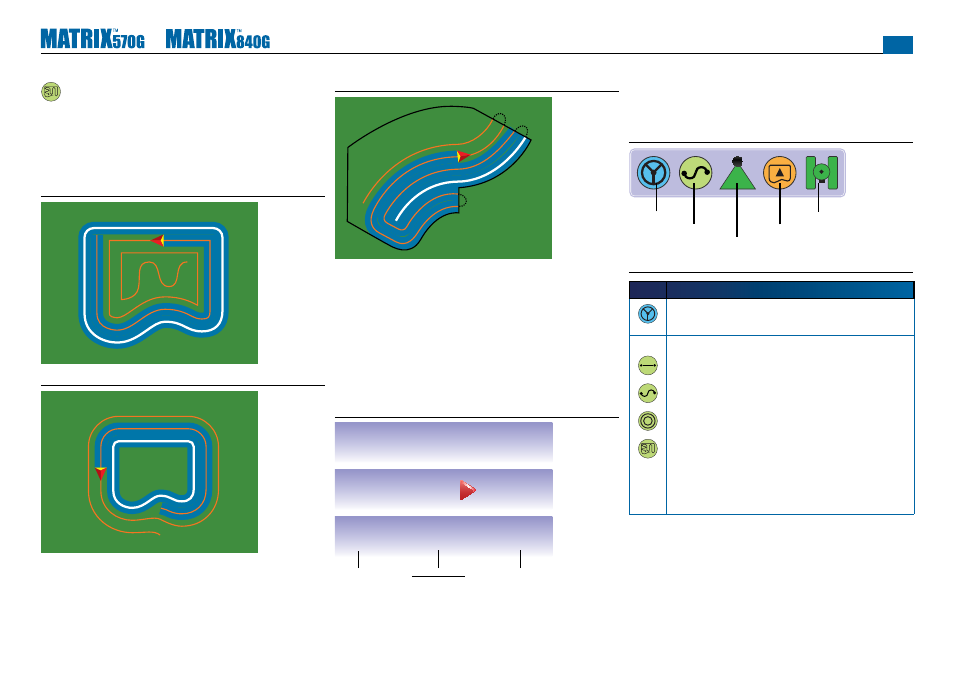

Last Pass Guidance
Last Pass Guidance offers true last pass navigation. The console
will automatically detect the nearest “applied” guideline and establish
parallel pass based on that guideline.
NOTE: If a boundary is established but no application occurred
during the boundary process, guidance will not initiate.
Figure 3-5: Inward Last Pass Guidance
Figure 3-6: Outward Last Pass Guidance
Figure 3-7: Last Pass Guidance with Boundary
GUIDANCE BAR & STATUS BAR
The Guidance Bar and Status Bar give you a quick reference to the
current guidance information and unit settings.
Guidance Bar
Informs you of your Current Speed, Swath Number (positive number
= to the right of the A-B baseline, negative number = to the left of
the A-B baseline), Navigation Activity (Cross Track Error (metres),
Current Activity and GPS Status) and Accumulated Area.
Figure 3-8: Guidance Bar Examples
Swath ha
0.00 0 No GPS
km/h ha
1.35 14.4
8.9
km/h ha
1.20 2.5 Mark A
Accumulated Area Navigation Activity
GPS Status
Cross Track Error
Current Activity
Current Speed
or
Swath Number
Status Bar
Informs you of the status of FieldPilot Engagement, Guidance Mode,
BoomPilot, Boundary Area and GPS.
Figure 3-9: Status Bar
GPS Status
Bounded Area Status
BoomPilot Status
Guidance Mode
FieldPilot Status
Figure 3-10: Status Bar Icons
Icon Description
FieldPilot Status.
Icon = engaged. No icon = disengaged.
Guidance Mode.
Straight A-B Guidance. Provides straight line guidance
based on A and B reference points.
Curved A-B Guidance. Provides curved guidance based
on a reference (A-B) line.
Circle Pivot Guidance. Provides guidance around a
central location that radiates inward or outward.
Last Pass Guidance. The console will detect the nearest
adjacent applied swath and establish guidance based on it.
No Guidance. Turns off guidance. No Icon will be
displayed.
