24

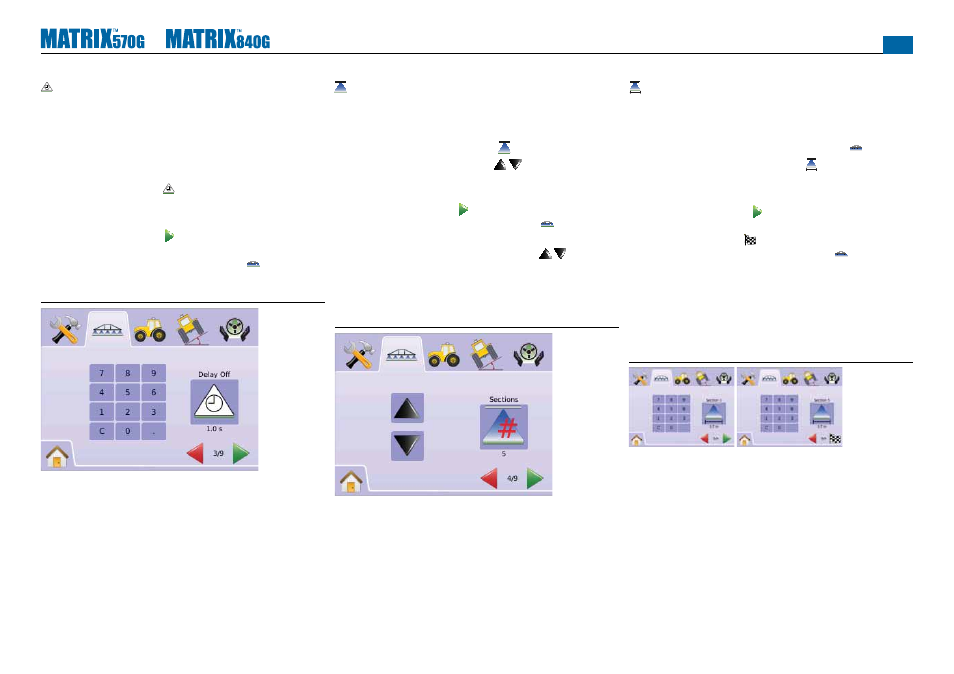

Delay Off
Delay Off functions as a “look ahead” for establishing the timing for
the boom section valves to switch off exactly when entering an area
that has been applied. If the boom turns off too soon when entering
an applied area, decrease the Delay Off setting. If the boom turns
off too late when entering an applied area, increase the Delay Off
setting. Range is 0.0 - 10.0 seconds
1. Press DELAY OFF ICON .
2. Use the entry screen to establish delay time.
Press
►PAGE RIGHT ARROW to proceed to Number of Boom
Sections.
►BOOMPILOT/SINGLE BOOM SETUP TAB to return to
main Boom Section Setup screen.
Figure 2-42: Delay Off
#
Number of Boom Sections
Number of Boom Sections establishes the number of available boom
sections, 1 to 15 depending upon which SmartCable or Section
Driver Module (SDM) is detected.
1. Press NUMBER OF BOOMS ICON # .
2. Press UP/DOWN ARROW ICONS to establish
appropriate number of boom sections.
Press
►PAGE RIGHT ARROW to proceed to Boom Section Width.
►BOOMPILOT/SINGLE BOOM SETUP TAB to return to
main Boom Section Setup screen.
NOTE: Press & hold UP/DOWN ARROW ICONS to quickly
adjust settings.
NOTE: A section of more than one boom will change the total steps
to complete the BoomPilot setup respectively.
Figure 2-43: Number of Boom Sections
Boom Section Width
Boom Section Width establishes the width of each boom section.
Range is 0.0 - 50.0 metres. When facing forward, boom sections are
ordered from left to right along the boom.
1. Press BOOMPILOT/SINGLE BOOM SETUP TAB .
2. Press BOOM SECTION WIDTH ICON .
3. Use the entry screen to establish boom section width.
Press
►PAGE RIGHT ARROW to proceed to the remaining
individual boom section widths.
►CHECKERED FLAG to complete Boom Section Setup.
►BOOMPILOT/SINGLE BOOM SETUP TAB to return to
main Boom Section Setup screen.
NOTE: When entering Boom Section Width, the total of all sections
must be greater than 0.9 metres.
NOTE Individual boom sections can be set to different widths.
NOTE: This setting is required for FieldPilot Operation.
Figure 2-44: Boom Section Width
