26
Vehicle Type
Vehicle Type selects the type of vehicle steering that most closely
represents your vehicle.
1. Press VEHICLE TYPE ICON
2. Press UP/DOWN ARROW ICONS to change between:
►Front Wheel Steer (also used for Combines)
►Articulated
►Tracked
3. Press
►PAGE RIGHT ARROW to proceed to Antenna Height.
►VEHICLE SETUP TAB to return to main Vehicle Setup
screen.
NOTE: This setting is required for FieldPilot and Tilt Sensor
Operation, as well as proper BoomPilot operation.

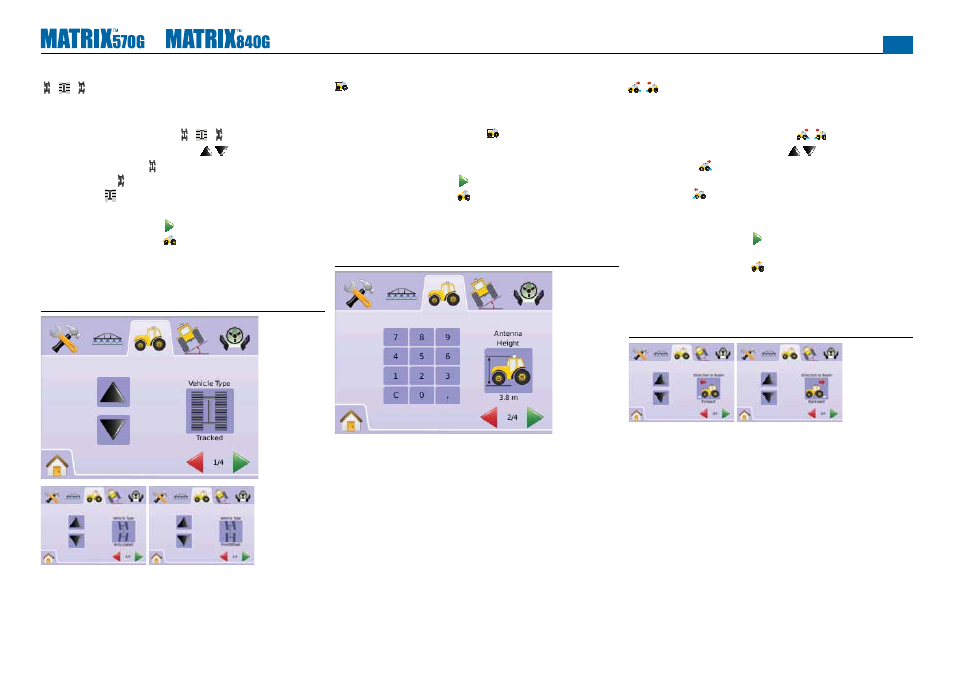

Figure 2-48: Vehicle Type
Antenna Height
Antenna Height sets the height of the antenna from the ground.
Range is 0.0 - 10.0 metres.
1. Press ANTENNA HEIGHT ICON .
2. Use the entry screen to establish the antenna height.
3. Press
►PAGE RIGHT ARROW to proceed to Direction to Boom.
►VEHICLE SETUP TAB to return to main Vehicle Setup
screen.
NOTE: This setting is required for FieldPilot and Tilt Sensor
Operation, as well as proper BoomPilot operation.
Figure 2-49: Antenna Height
Direction to Boom
Direction to Boom sets whether the boom is located behind or in front
of the GPS antenna as the vehicle moves in a forward direction.
1. Press DIRECTION TO BOOM ICON
2. Press UP/DOWN ARROW ICONS to change between:
►Backward – indicates the boom is located behind the GPS
antenna
►Forward
– indicates the boom is located in front of the
GPS antenna
3. Press
►PAGE RIGHT ARROW to proceed to Boom Offset
Distance.
►VEHICLE SETUP TAB to return to main Vehicle Setup
screen.
NOTE: This setting is required for FieldPilot and Tilt Sensor
Operation, as well as proper BoomPilot operation.
Figure 2-50: Direction to Boom
