31
98-05188 R2 www.teejet.com
Cycle Left
Cycle Left sets the minimum amount of drive required to begin
steering the vehicle to the left. .
1. Press MINIMUM DUTY CYCLE LEFT ICON .
2. While the vehicle is moving in a slow forward straight line motion,
press the GREEN STOPLIGHT .
3. Slowly increase the duty cycle number using the PLUS ICON
until the vehicle begins to turn left.
4. Press the RED STOPLIGHT to complete the left test.
5. Press
►PAGE RIGHT ARROW to proceed to Minimum Duty Cycle
Right.
►FIELDPILOT SETUP TAB to return to main FieldPilot
Setup.
NOTE: Press & hold PLUS/MINUS ICONS to quickly adjust
settings.

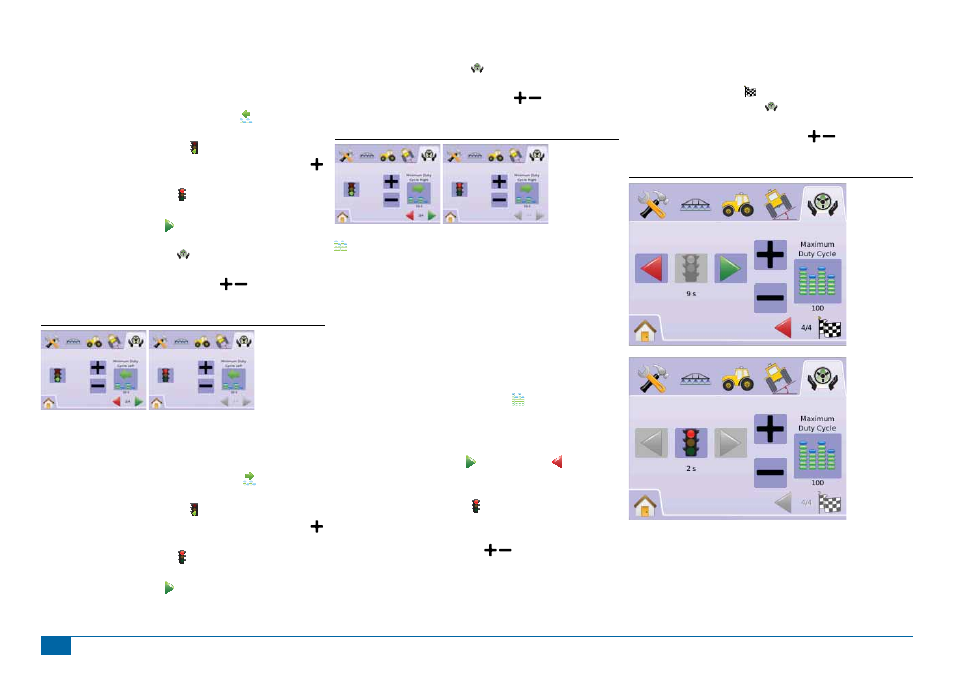

Figure 2-65: Minimum Duty Cycle Left
Cycle Right
Cycle Right sets the minimum amount of drive required to begin
steering the vehicle to the right. .
1. Press MINIMUM DUTY CYCLE RIGHT ICON .
2. While the vehicle is moving in a slow forward straight line motion,
press the GREEN STOPLIGHT .
3. Slowly increase the duty cycle number using the PLUS ICON
until the vehicle begins to turn right.
4. Press the RED STOPLIGHT to complete the right test.
5. Press
►PAGE RIGHT ARROW to proceed to Maximum Duty Cycle.
►FIELDPILOT SETUP TAB to return to main FieldPilot
Setup.
NOTE: Press & hold PLUS/MINUS ICONS to quickly adjust
settings.
Figure 2-66: Minimum Duty Cycle Right
Maximum Duty Cycle
Maximum Duty Cycle sets the maximum speed that the wheels will
steer from left to right / right to left (lock to lock). Range is 25 - 100.
NOTE: If the valve frequency is below 15 Hz (non proportional), set
the value to 100. Speed will be established during the Valve
Test.
WARNING: PINCH POINT HAZARD!
To prevent serious injury or death, avoid unsafe practice
while manually operating hydraulic steering circuits. Keep
others away and stay clear of mechanical linkages.
1. Press MAXIMUM DUTY CYCLE ICON .
2. Set Max Duty Cycle value to approximately 60 (or refer to
FieldPilot manual for desired lock to lock times).
3. Turn the wheels all the way to the left (or right).
4. Press the GREEN ARROW (or RED ARROW ). This will
start a timer below the STOPLIGHT as well as turn the vehicle to
the right (or left).
5. Press the RED STOPLIGHT when the wheels are all the way
to the right (or left). The time displayed under the STOPLIGHT is
the lock to lock time.
6. Press the PLUS/MINUS ICONS to adjust the Max Duty
Cycle value.
7. Repeat steps 3 to 6.
8. When the time from left to right / right to left (lock to lock) begins
increasing (it takes longer to turn the tyres) press
►CHECKERED FLAG to complete Valve Setup.
►FIELDPILOT SETUP TAB to return to main FieldPilot
Setup.
NOTE: Press & hold PLUS/MINUS ICONS to quickly adjust
settings.
Figure 2-67: Maximum Duty Cycle
