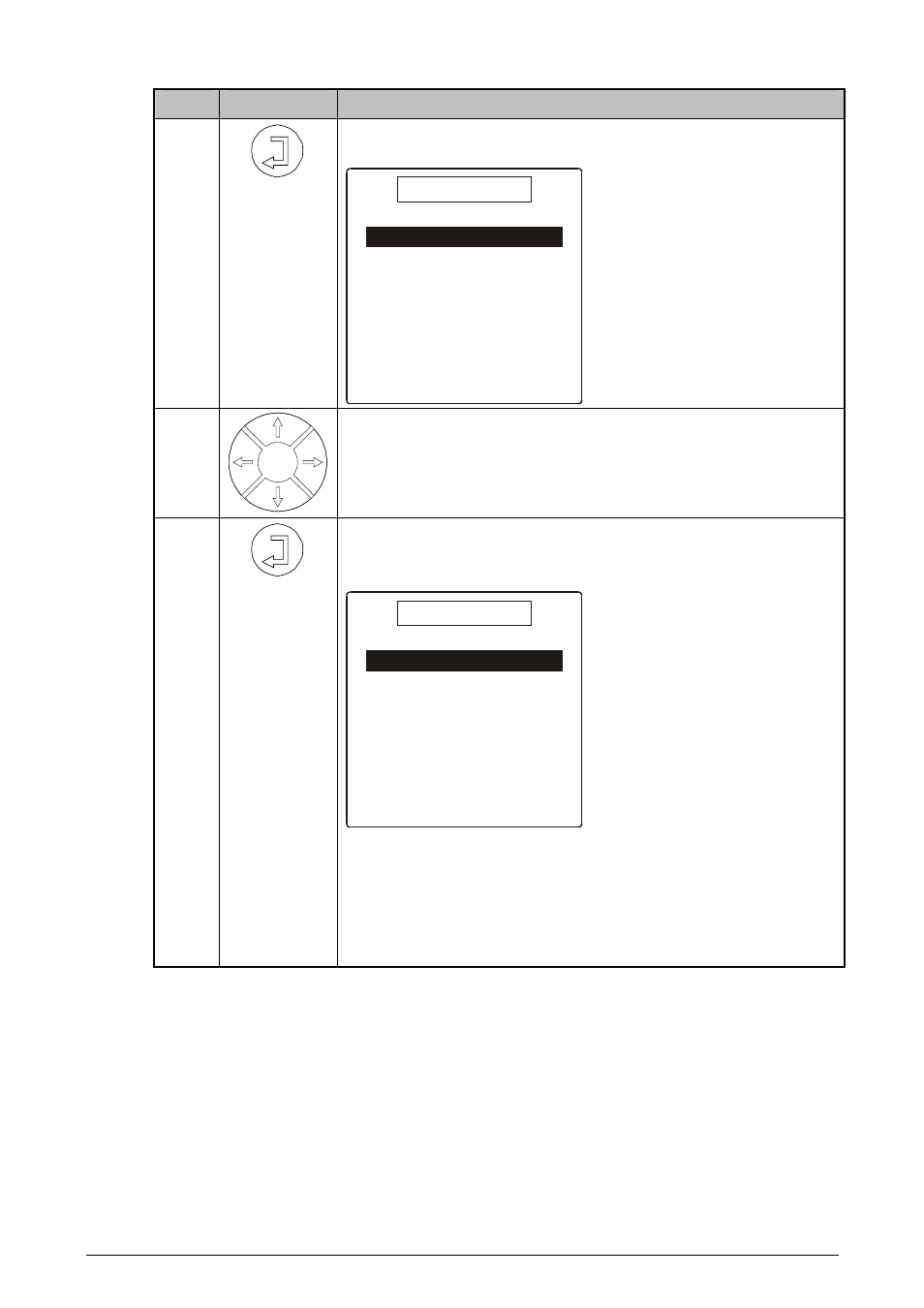

background image

J

OB

F

UNCTION

O

PERATORS MANUAL FOR THE

LH

85

S

PRAY

C

ONTROLLER

5.8

LH

A

GRO

Step

Key

Action

7

Press the ENTER key to select the nozzle type and the
display changes to display the following:

Nozzle calculator

Nozzle

02

Appl. rate

150

Desired speed

6.0

Desired pressure

2.8

Flow rate

0.75

8

Highlight "Desired pressure" using the ARROW UP and
DOWN keys.

9

Press the ENTER key and encode the required pressure,
then press the ENTER key to accept this value.
The following is shown in the display:

Nozzle calculator

Nozzle

02

Appl. rate

150

Desired speed

6.2

Desired pressure

3.0

Flow rate

0.78

As can be seen in the above, the nozzle type, the
application rate and the required pressure have been
changed to the required values.
The required speed for the nozzle/rate/pressure
combination is shown as is the required flow rate for each
nozzle (for calibration purposes).
