O PERATORS MANUAL FOR THE LH 85 S PRAY C ONTROLLER S ETTINGS
LH A GRO 4.19
Tank sensor:
If the sprayer is fitted with a tank sensor this must be calibrated. The procedure for
tank sensor calibration is as follows:
1. From "OEM setup" select "Sensors".
2. From "Sensors" select "Calibration".
3. From "Calibration" select "Tank sensor".
4. With an empty tank select "Empty".
5. Press the AUTO key then the ENTER key to confirm that there is no liquid
on the tank sensor.
6. Press the ESCAPE key when calibration has finished.
7. Fill the tank to the encoded minimum tank level (see page 4.22) and select
"Min level".
8. Press the AUTO key and then the ENTER key to confirm that the tank
contains the number of litres encoded.
9. Press the ESCAPE key when calibration has finished.
10. Fill the tank completely and select "Max level".
11. Press the AUTO key and then the ENTER key to confirm that the tank is
full.
12. Press the ESCAPE key when calibration has finished.
13. Select "Tank shape" and start emptying the tank by spraying with a
constant flow between 60 – 120 litres per minute.
14. When the tank is empty tank sensor calibration is finished.
BOOM
All boom related settings are configured in the boom menu.
BOOM SECTIONS
Encode the number of boom sections on the sprayer.
NOZZLES PER SECTION
To encode the number of nozzles for each individual boom section do thus:

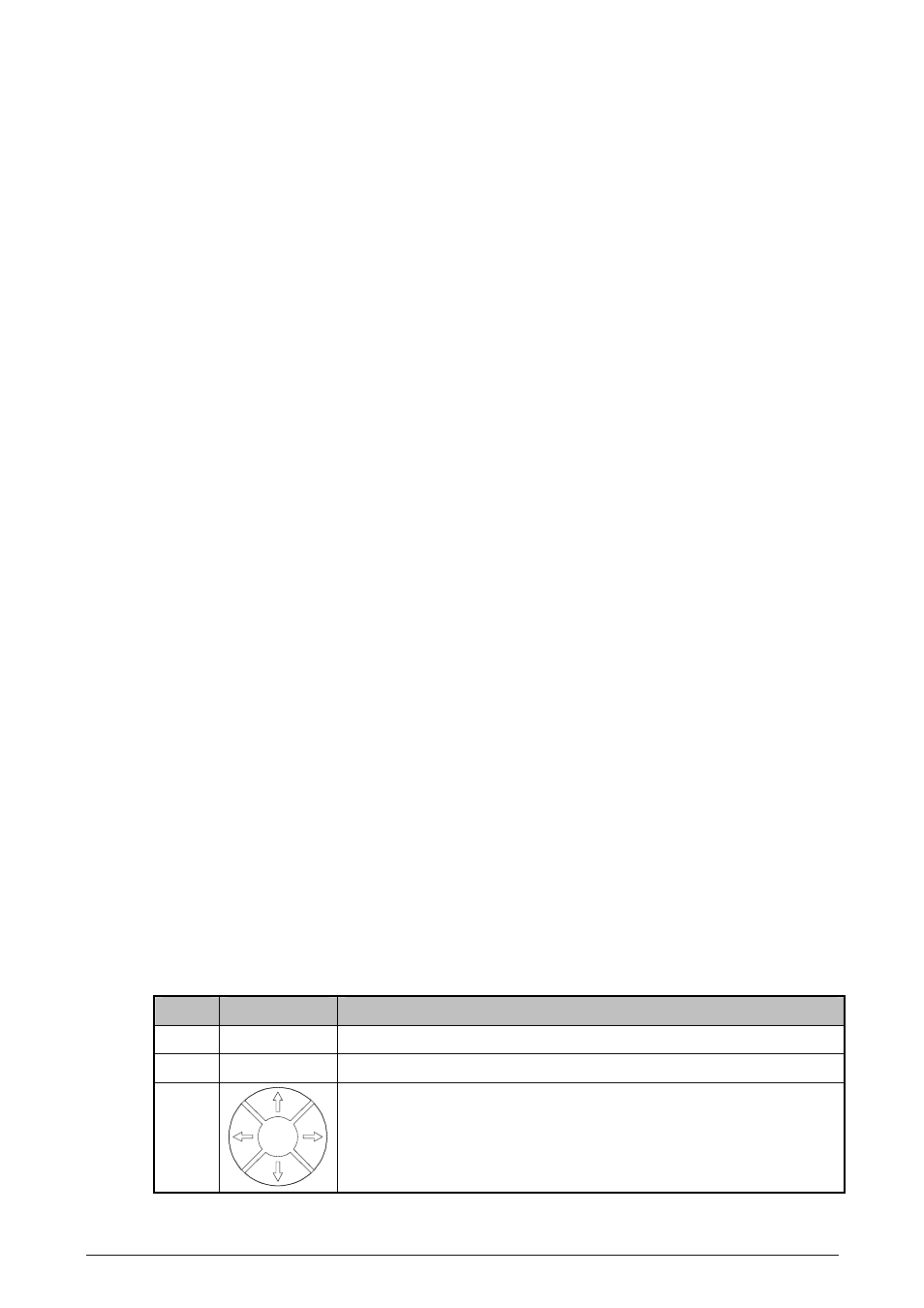

Step Key Action
1 From the "OEM" setup menu select "Boom".
2 From the "Boom" menu select "Nozzles per section".
3 Encode the number of nozzles on boom section 1 (starting
from left using the ARROW UP and DOWN keys.
