Nozzle configuration – TeeJet LH 85 User Manual
Page 37
O
PERATORS MANUAL FOR THE
LH
85
S
PRAY
C
ONTROLLER
S
ETTINGS
LH
A
GRO
4.13

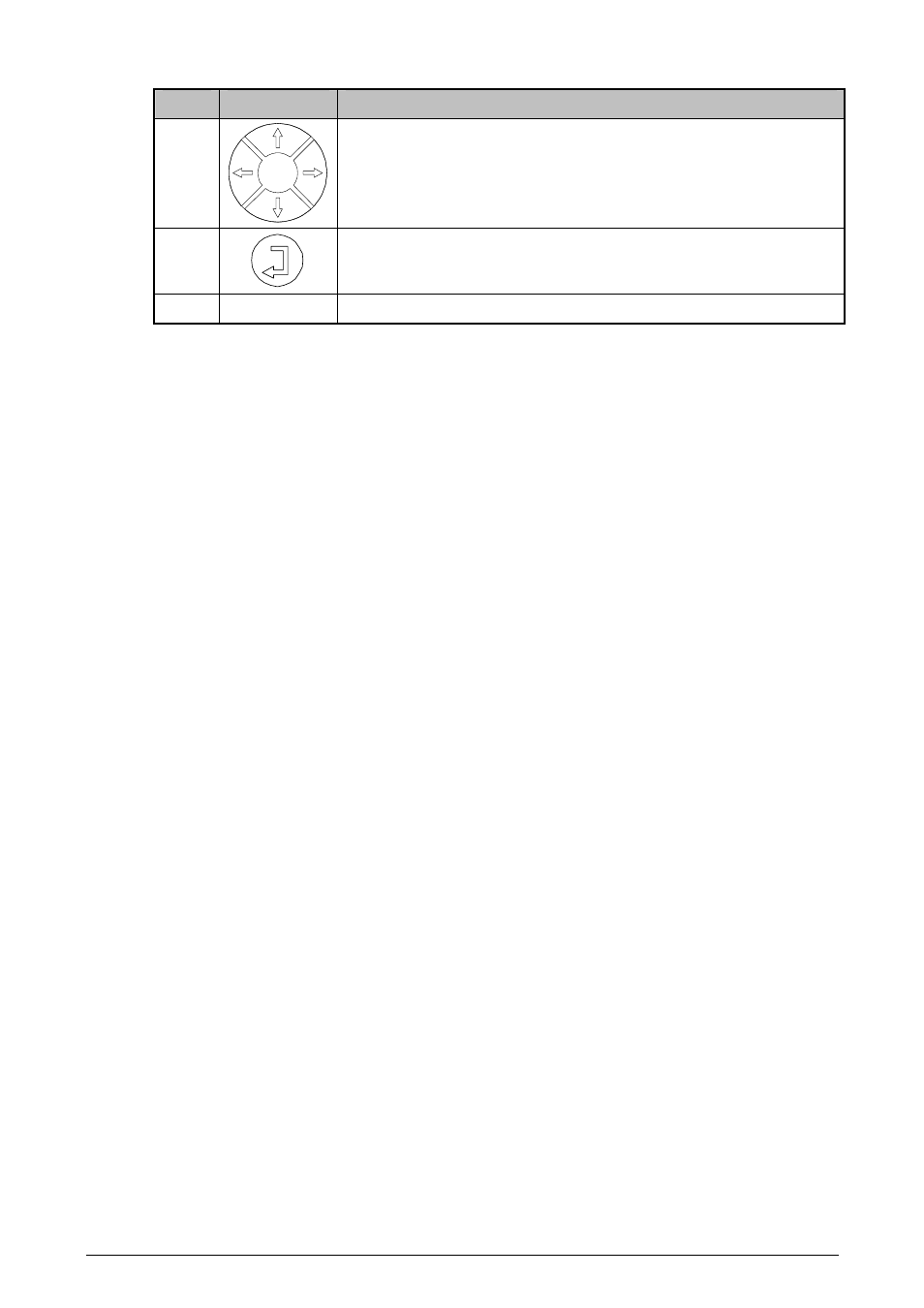

Step
Key
Action
4
Using the ARROW keys highlight the required nozzle type.
5
Press the ENTER key.
6
Repeat steps 2 to 5 for each of the 5 spray outlets.
NOZZLE CONFIGURATION
The configuration for each of the 16 different nozzle types stored in the system
can be altered.
The 11 pre-programmed nozzle types correspond to the ISO colouring system and
we recommend that the configuration for these nozzles is not altered.
There are 5 programmable nozzle types for nozzles that are not colour coded (P1
to P5) and the following settings can be altered:
Low limit:
The lowest operating pressure of the nozzle.
High limit:
The highest operating pressure of the nozzle.
Reference flow:
The reference flow in litres per minute for the nozzle.
Reference pressure:
The pressure at which the above flow rate is true
(ISO = 2 bar).
The procedure for altering the nozzle type configuration is as follows:
