S ETTINGS O PERATORS MANUAL FOR THE LH 85 S PRAY C ONTROLLER
4.20 LH A GRO

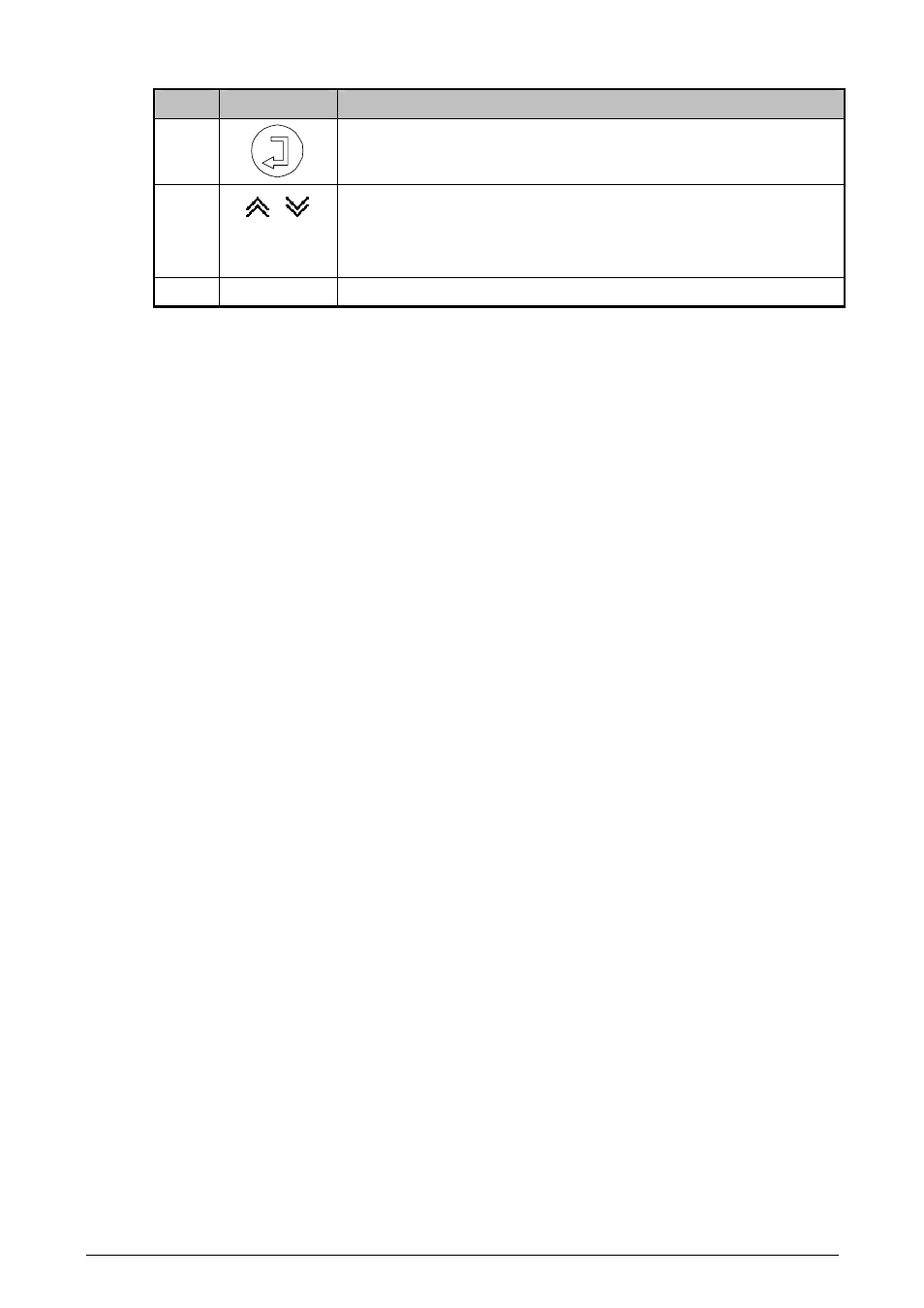

Step Key Action
4 Press the ENTER key.
5 Press the BOOM SECTION UP key to select the next
boom section.
Pressing the BOOM SECTION DOWN key selects the
previous boom section.
6 Repeat steps 3 to 5 for each existing boom section.
NOZZLE SPACING
Encode the distance between the nozzles in centimetres.
REGULATION VALVES
If the regulation valve fitted to the sprayer bypasses the flow to the boom select
"Reg. valve bypass".
If the regulation valve fitted to the sprayer throttles the flow select
"Reg valve throttle".
SECTION VALVES
Select whether the boom section valves are 2-way or 3-way.
REGULATION DETAILS
The following settings determine the regulation process of the LH 85 Spray
controller:
Minimum regulation pressure:
Encode the pressure, in bar, that the sprayer may not go under.
The working pressure will not go lower than this encoded level even if a lower
pressure is required by the regulation system (the controller).
Should the actual pressure on the sprayer be lower than this encoded value the
regulating system will continue to increase the pressure until the minimum
pressure level has been reached.
Maximum regulation pressure:
Encode the pressure, in bar, that the sprayer may not go over.
The working pressure will not go higher than this encoded level even if a higher
pressure is required by the regulation system (the controller).
Should the actual pressure on the sprayer be higher than this encoded value the
regulating system will continue to decrease the pressure until the maximum
pressure level has been reached.
