Eddy DK Programmer Guide
68

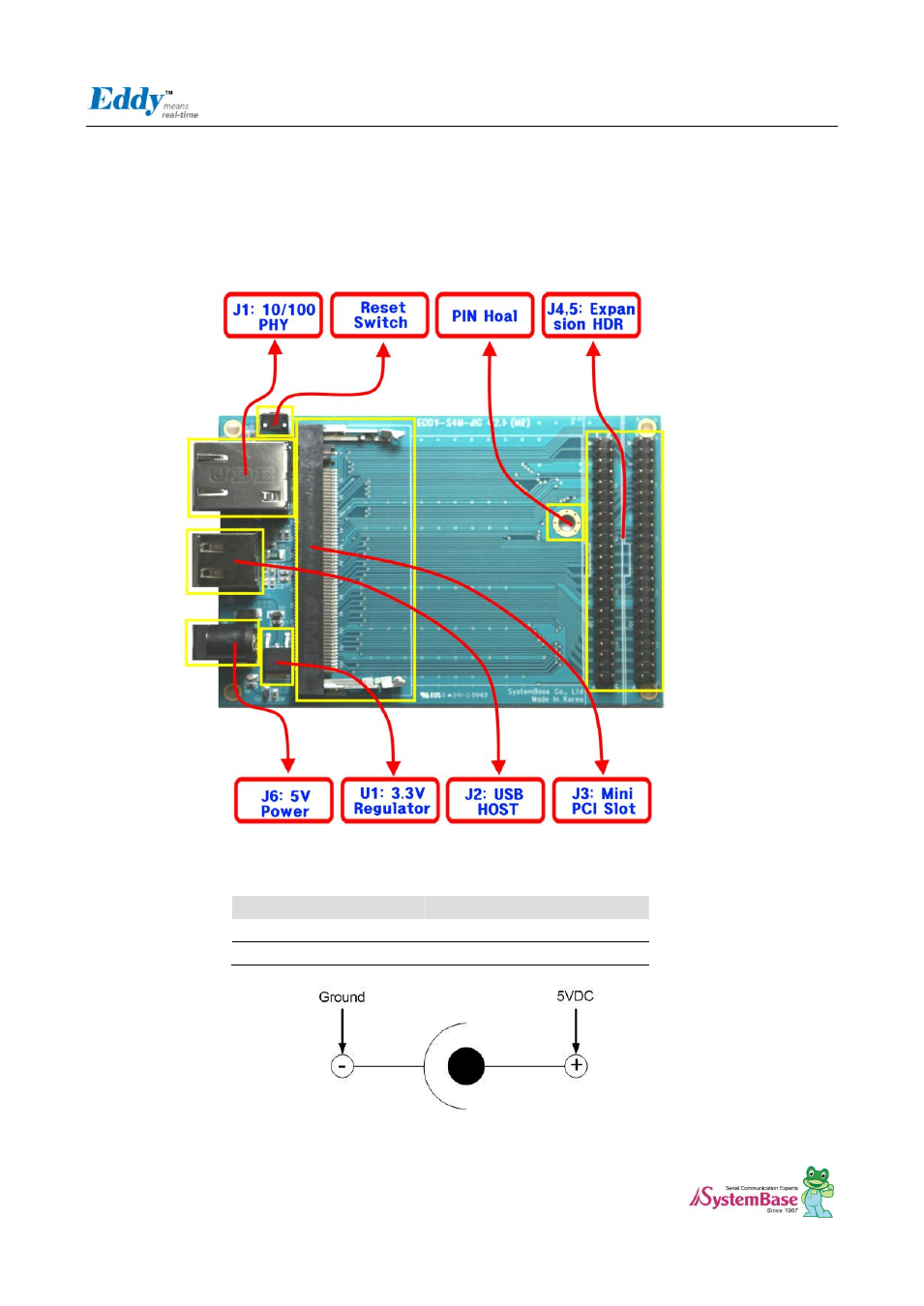

2.7 Eddy-S4M-JiG v2.1
Eddy-S4M JIG board is test board which enable of user to integrate and test their application with Eddy-S4M. JIG
board include mini connector for joining Eddy-S4M, Ethernet RJ45, USB Host, Power, Reset Switch, and providing
connectors to all Eddy-S4M functions.
2.7.1
J6 : Power Jack
Contact
Polarity
Center (D : 2mm)
5VDC
Outer (D: 6.5mm)
Ground
