9.2.2 Installing DK Board Driver
To detect the DK board via USB you need to install the DK board driver for Windows as follows.
1) Turn off DK board.
2) Connect USB cable to both the DK board and PC.
3) Set USB as a standby mode by pulling the right side switch down from the dip switch on the DK board.

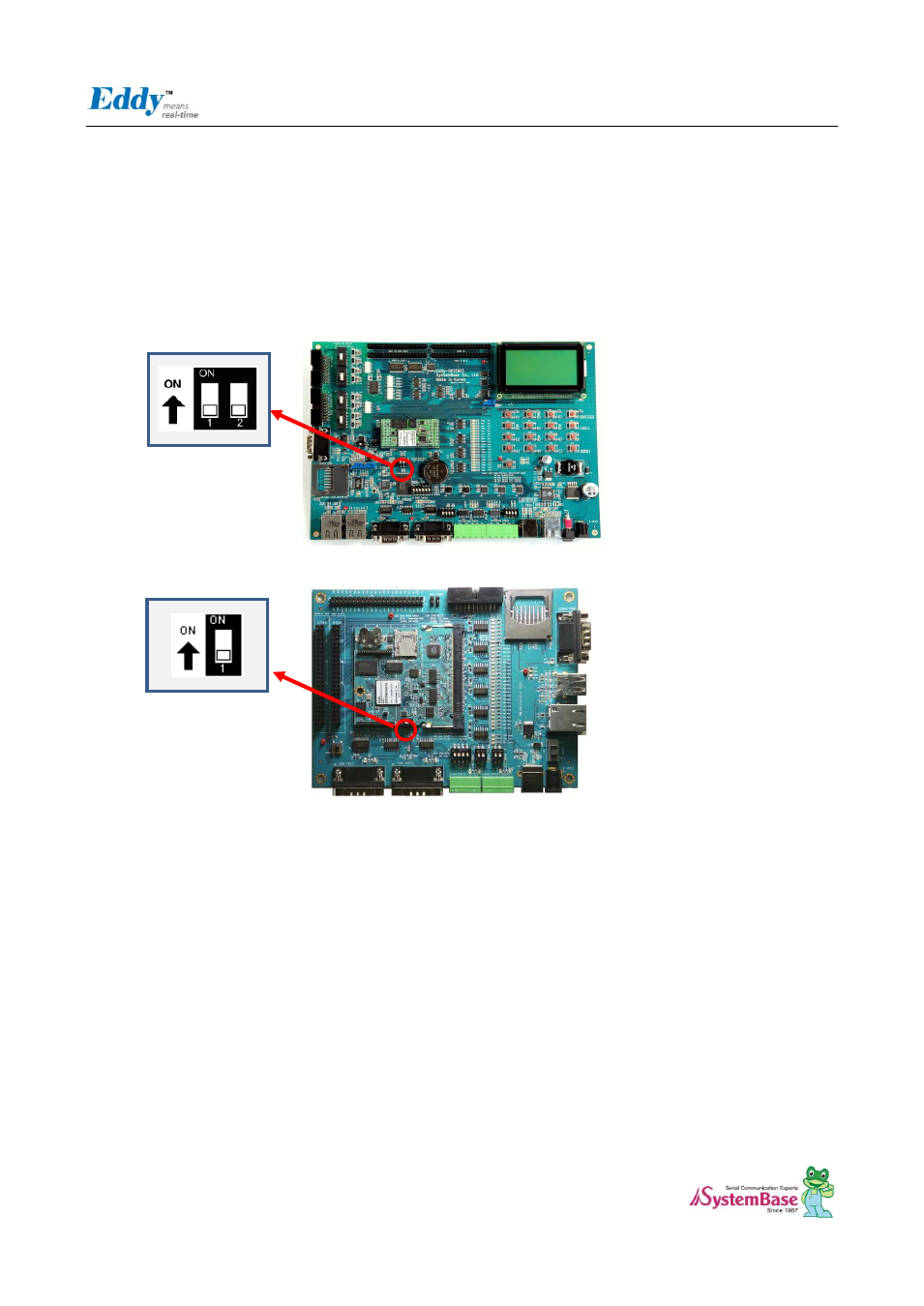

[ Eddy-CPU DK (S6 Dip switch) ]
[ Eddy-S4M DK (S1 Dip switch) ]
4) Turn on DK board.
5) If DK board is recognized on your PC, maybe a dialogue box will be pop-up for installing new hardware. Choose
the recommended mode install the software automatically then click Next.
6) Click Continue Anyway to proceed with installation.
7) Complete the found task. Click Finish to successfully install the driver.
8) Pull up both of Dip switch on DK board.
