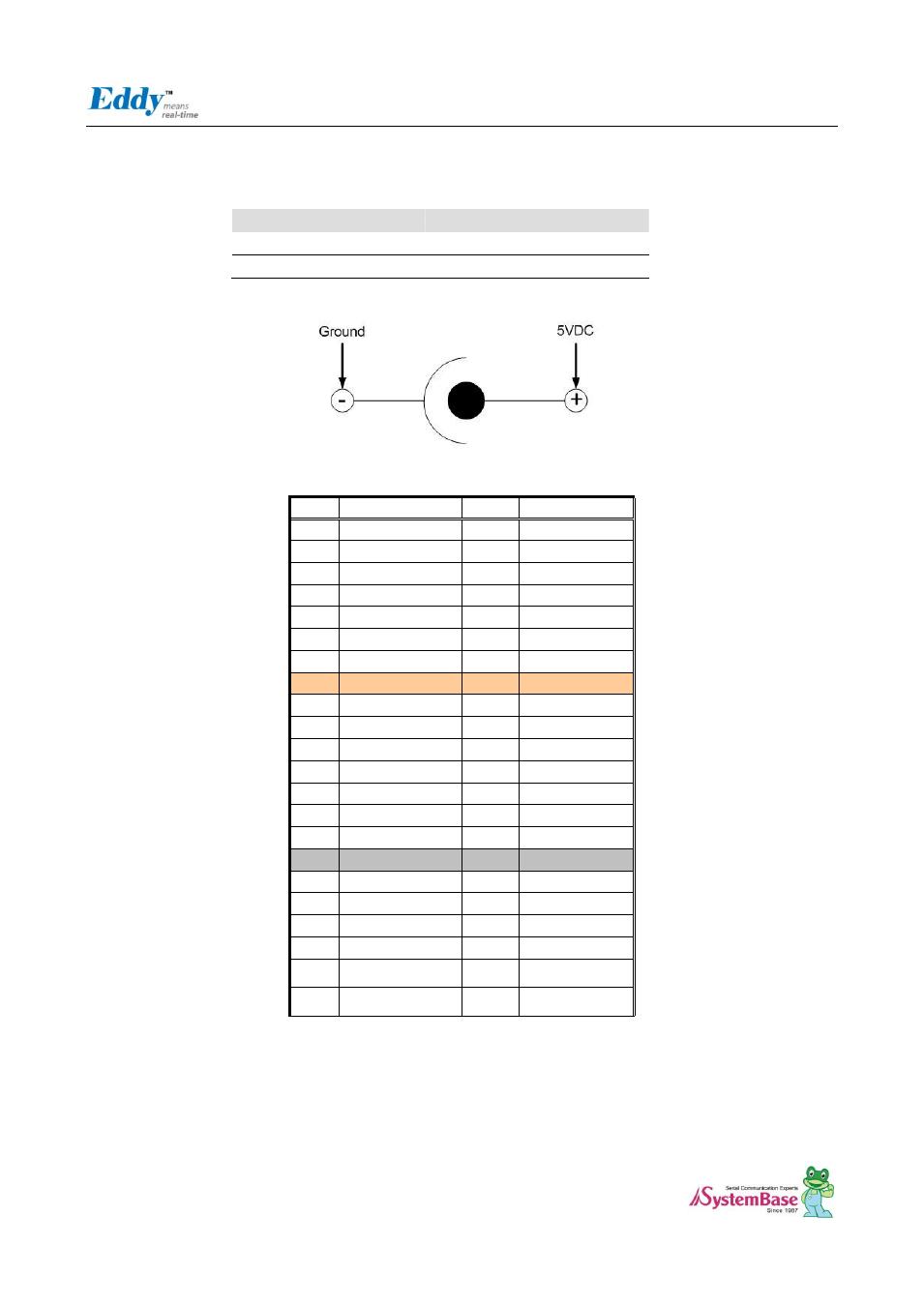

2.6.2.7. S1 : Power Jack
Contact
Polarity
Center (D : 2mm)
5VDC
Outer (D: 6.5mm)
Ground
GPIO Connector pinout
Pin
Signal
Pin
Signal
1
PA5
2
PA22
3
PA30
4
NC
5
PB0
6
PB1
7
PB2
8
PB3
9
PB12
10
PB13
11
PB16
12
PB17
13
PB18
14
PB19
15
3.3V
16
3.3V
17
PB20
18
PB21
19
PB30
20
PB31
21
PC0
22
PC1
23
PC2
24
PC3
25
PC5
26
PC9
27
PC10
28
PC12
29
PC13
30
PC14
31
GND
32
GND
33
PC15
34
PC17
35
PC18
36
PC19
37
PC20
38
PC24
39
PC25
40
nRESET(IN)
41
RDY#
42
NRST(OUT)
43
TWCK
44
TWD
