Eddy DK Programmer Guide
39
Environment Setting
Debug port is configured as follows so user has to set his or her PC serial port connected to debug port as follows.
Speed: 115200 bps
Data bit: 8 bit
Parity bit: Non Parity
Stop bit: 1 bit

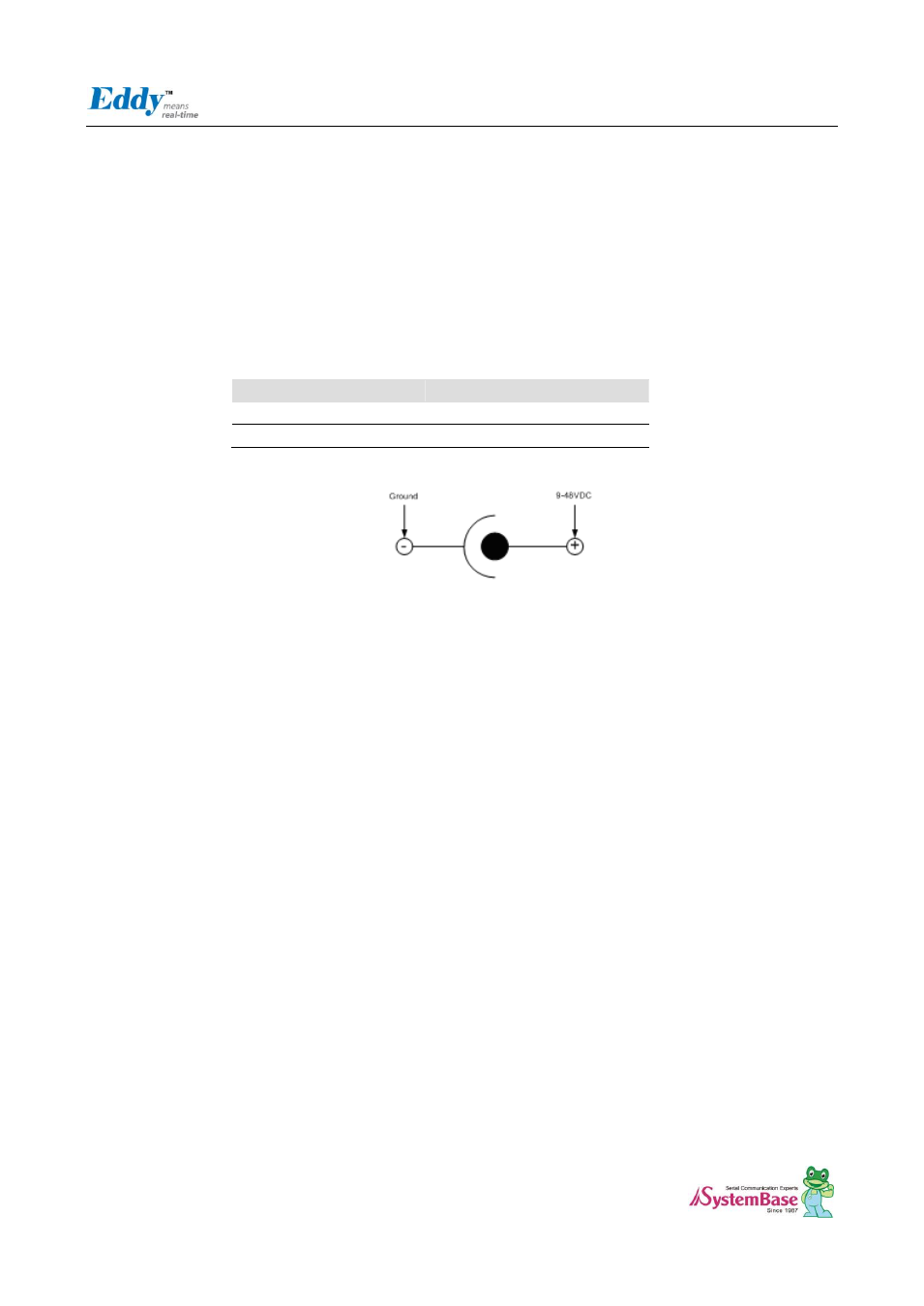

2.4.4.5. Power Jack
Contact
Polarity
Center (D : 2mm)
9-48VDC
Outer (D: 6.5mm)
Ground
