Eddy DK Programmer Guide
66
RS485 Half Duplex
Pin Signal Description
1 TRX+ Transmit/Receive differential data positive
2 TRX- Transmit/Receive differential data negative

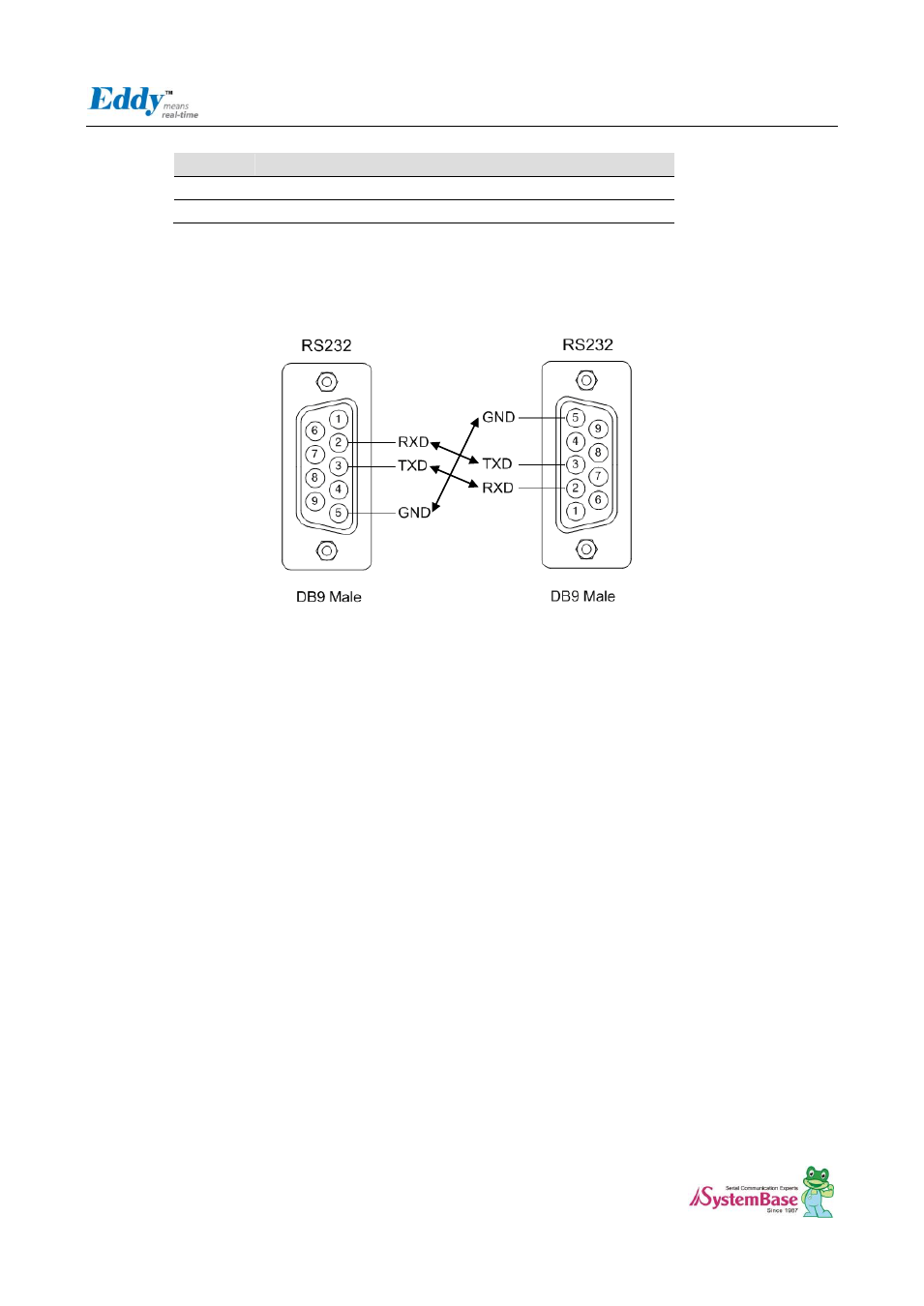

J15 : Debug Port
You can confirm debug massage and information of state through debug port.
Environment Configuration
Debug port is configured like below so that you must change serial port (connected with debug port) configuration
like bellow.
- Speed : 115200 bps
- Data bit : 8 bit
- Parity bit : Non Parity
- Stop bit : 1 bit
- Flow control : none
