Eddy DK Programmer Guide
29

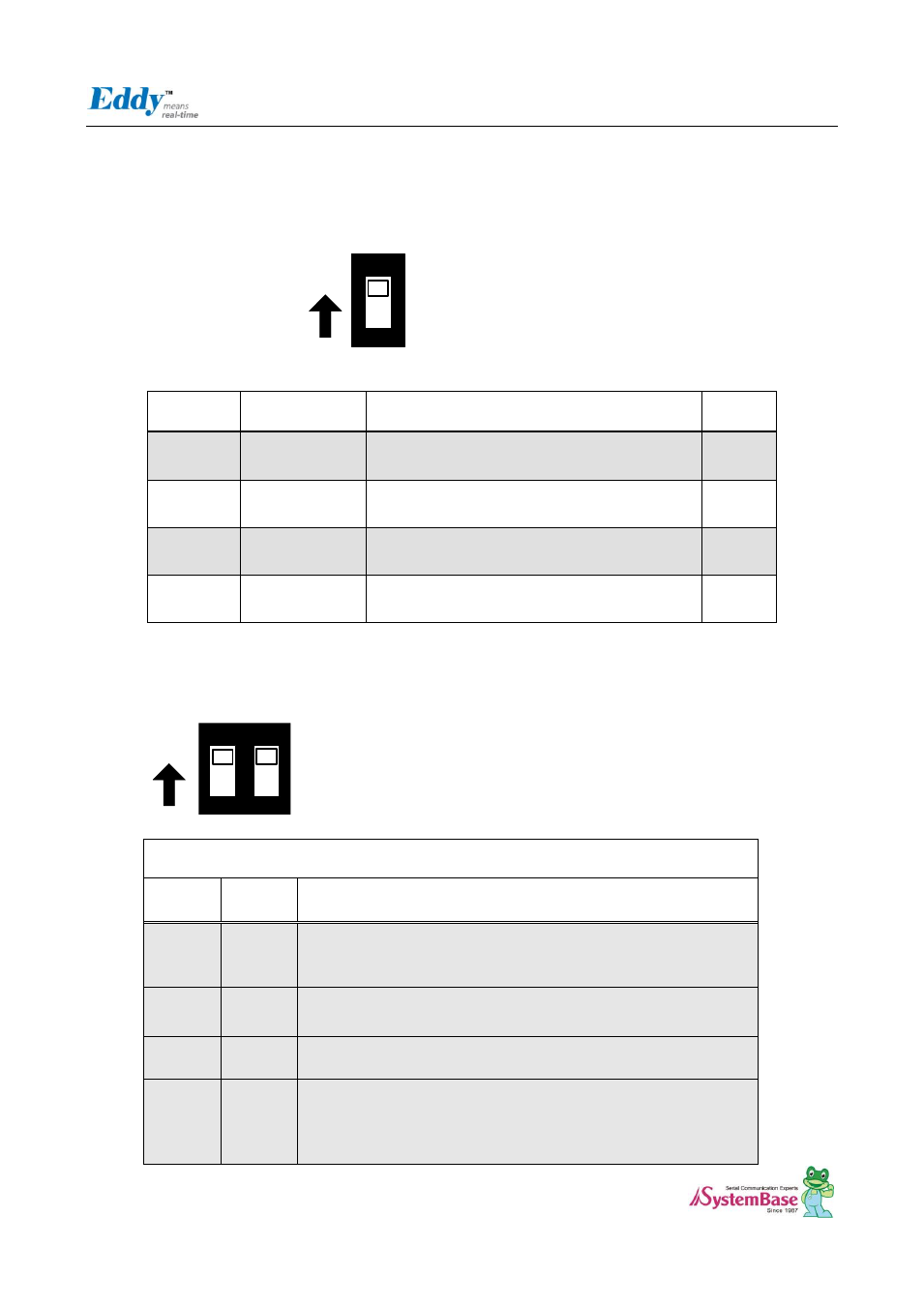

2.4.2.2. S5: ADC Select
You can choice the GPIO and ADC function with this switch. In order to use the ADC device, you should switch off.
And In order to use the GPIO function, you should switch on.
ON
1
ON
PIN name Fuction Discription I/O
PC0 ADC0 Temp. Sensor Input(LM50), RN: U22 IN
PC1 ADC1 Lux. Sensor Input(BH1600), RN: U26 IN
PC2 ADC2 Temp. Sensor Input(TMP300), RN: U24 IN
PC3 ADC3 N/A IN
* RN = Reference Number
2.4.2.3. S6: NAND Flash & Data Flash Chip Select
This switch is Nand Flash & Data Flash Chip select switch. This switch is needed in firmware Programming.
ON
ON
1 2
Flash Programming & Booting device Selection
Switch
No 1
Switch
No 2
Operation descriotion
OFF OFF
For Flash Programming
This setting is needed in firmware Programming. refer to 9.2 System
recovery via USB
OFF ON Boot from Data Flash.
ON OFF Boot from Nand Flash
ON ON
Boot from Data Flash or Nand Flash which have bootloader. if Both
devices have the bootloader, algorithm in CPU select the bootloader
of Data Flash.
(Reference : CPU Datasheet 13 장 AT91SAM9260 Boot Program)
SW Off : ADC mode
SW ON : GPIO mode
