EVS Device Installation
LS10062-001-SK-E 4-43
3. Attach strain relief clip to microphone cord. The strain relief clip should have about
2-3/4” of micro phone cord through it. See Figure 4-44.

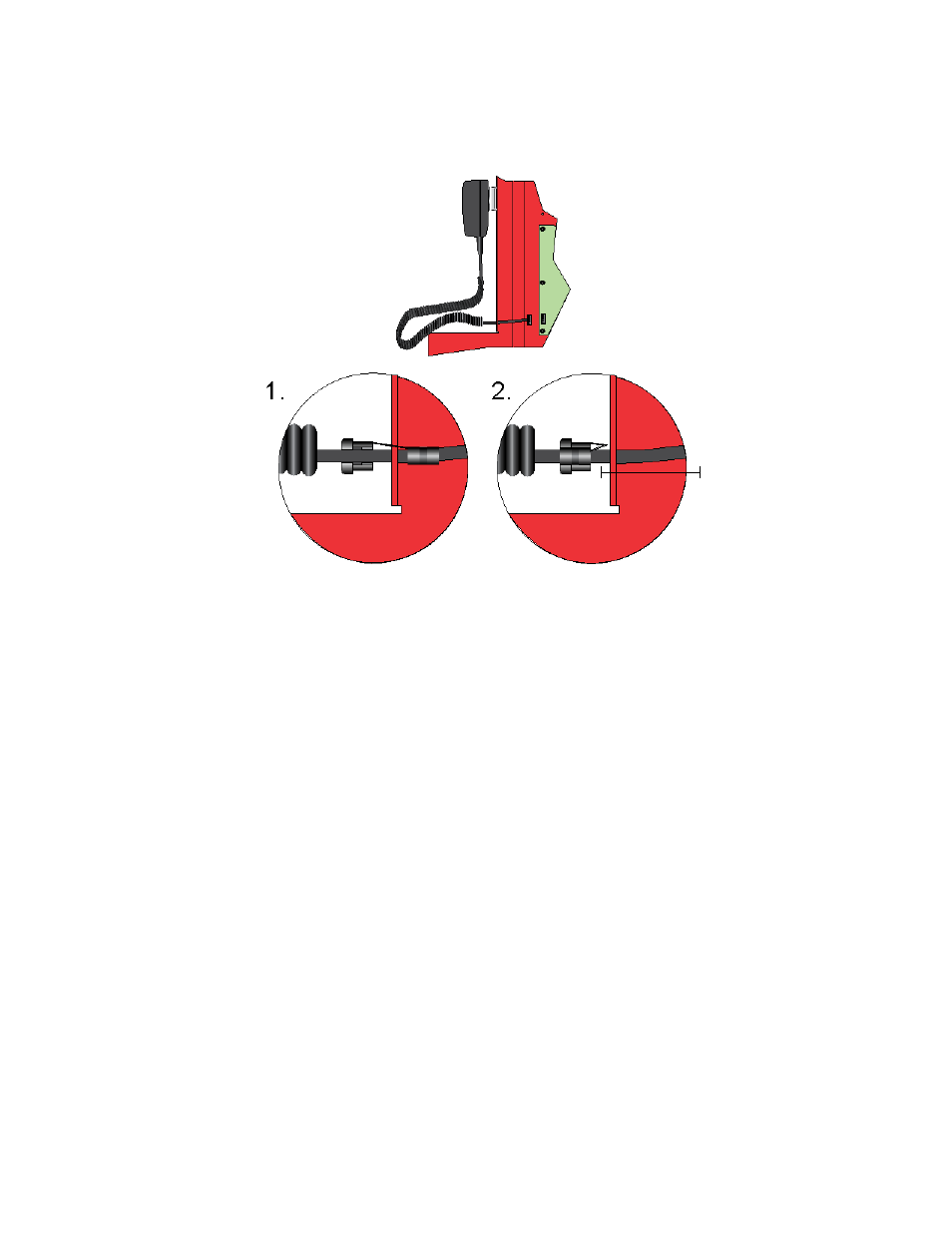

Figure 4-44 Installing Strain Relief Clip
4. Push the strain into the hole in the dead front panel.
4.8.4 To Remove the EVS-RVM
To install the EVS-RVM follow these steps:
1. Remove AC power and disconnect batteries from the main control panel.
2. Disconnect the SBUS connections from the SBUS terminals on the EVS-RVM.
See Figure 4-39.
3. Disconnect any devices connected to the VBUS. See Figure 4-37.
2-3/4”
