EVS Device Installation
LS10062-001-SK-E 4-3
4.1.3 Recessed Mounting
This section describes how to recess mount the cabinet into a wall. To recess mount
the cabinet you will need to have the optional trim ring P/N VIP-TR (ordered
separately).
Follow these steps to recess mount the cabinet:
1. Remove the cabinet door and the dead front panel. See Section 4.1.3.1.
2. Cut a recess hole. There should be 1.5" to 1.75" of cabinet extruding from the
wall, this should be measured from either the top edge or bottom edge to the exte-
rior side of the sheet rock. (See Figure 4-2.)
3. Mount the cabinet to wall studs by inserting a screw through the cabinets side
mounting holes into the wall stud.

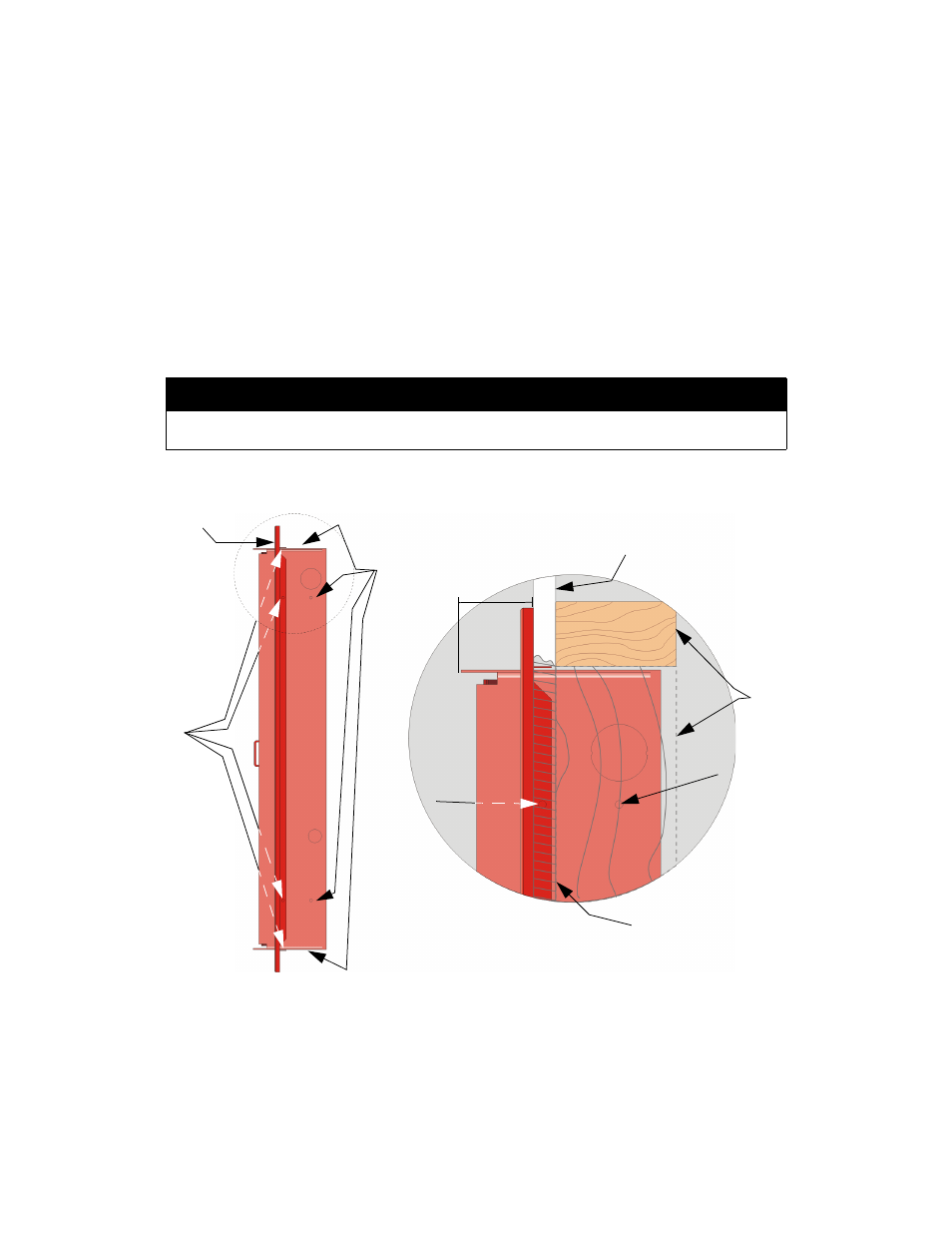

Figure 4-2 Detail of Flush Mounting with Trim Ring
Important!
Do not insert the cabinet deeper than recommend above. If the cabinet is mounted to deep you will
not be able to re-attach the door assembly.
Side View of Cabinet
Sheet Rock
Sheet Rock
Mounting
Studs
Cabinet
Mounting Hole
Trim Ring
Mounting
Hole
Cabinet
Mounting Hole
and Trim Ring
Trim Ring
1.5 to 1.75"
Trim Ring
Mounting
Hole
