Page 43
EVS Device Installation
LS10062-001-SK-E
4-21
4.5.7
Connecting AC Power
The AC inputs are rated as 120 VAC, 60 Hz (transformer P/N 115061).
To install the AC transformer into the EVS-50W cabinet follow these steps:
1. Open the cabinet door.
2. To access cabinet interior, open dead-front panel by removing the upper screw
and the mid-door retaining screw.
3. Mount the transformer onto the threaded cabinet transformer mounting studs
using the supplied locking hex nuts as shown in Figure 4-22.

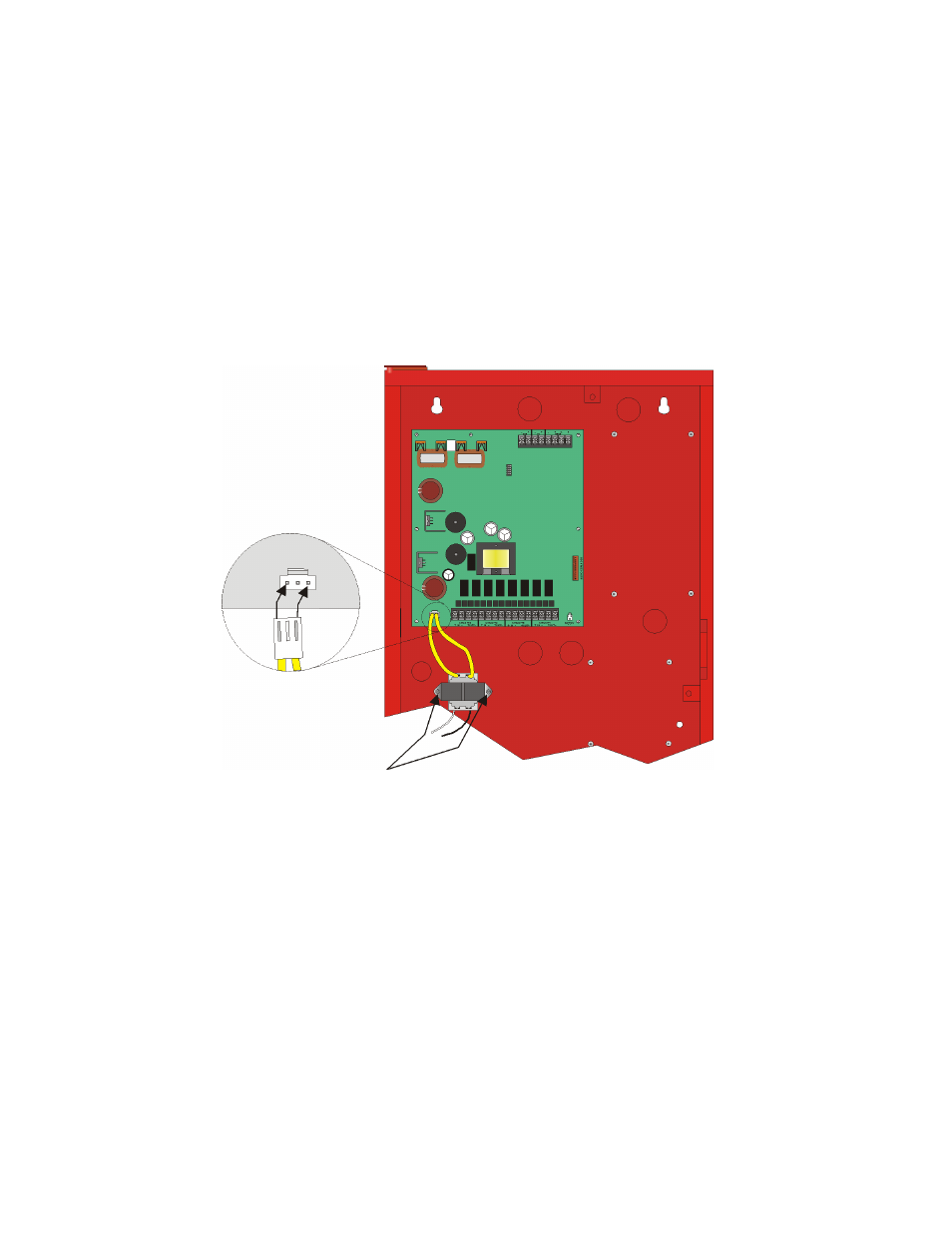

Figure 4-22 Transformer Mounting
Threaded
Mounting Studs
