EVS Series Emergency Voice System Installation Manual

4-10

LS10062-001-SK-E

4.3.4

To Remove the EVS-VCM

To remove the EVS-VCM follow these steps:

1. Remove AC power and disconnect batteries from the main control panel.

2. Disconnect the SBUS connections from the SBUS terminals on the EVS-VCM.

See Figure 4-7.

3. Disconnect any devices connected to the VBUS. See Figure 4-5.

4. Unplug the Microphone from the microphone connector. See Figure 4-11.

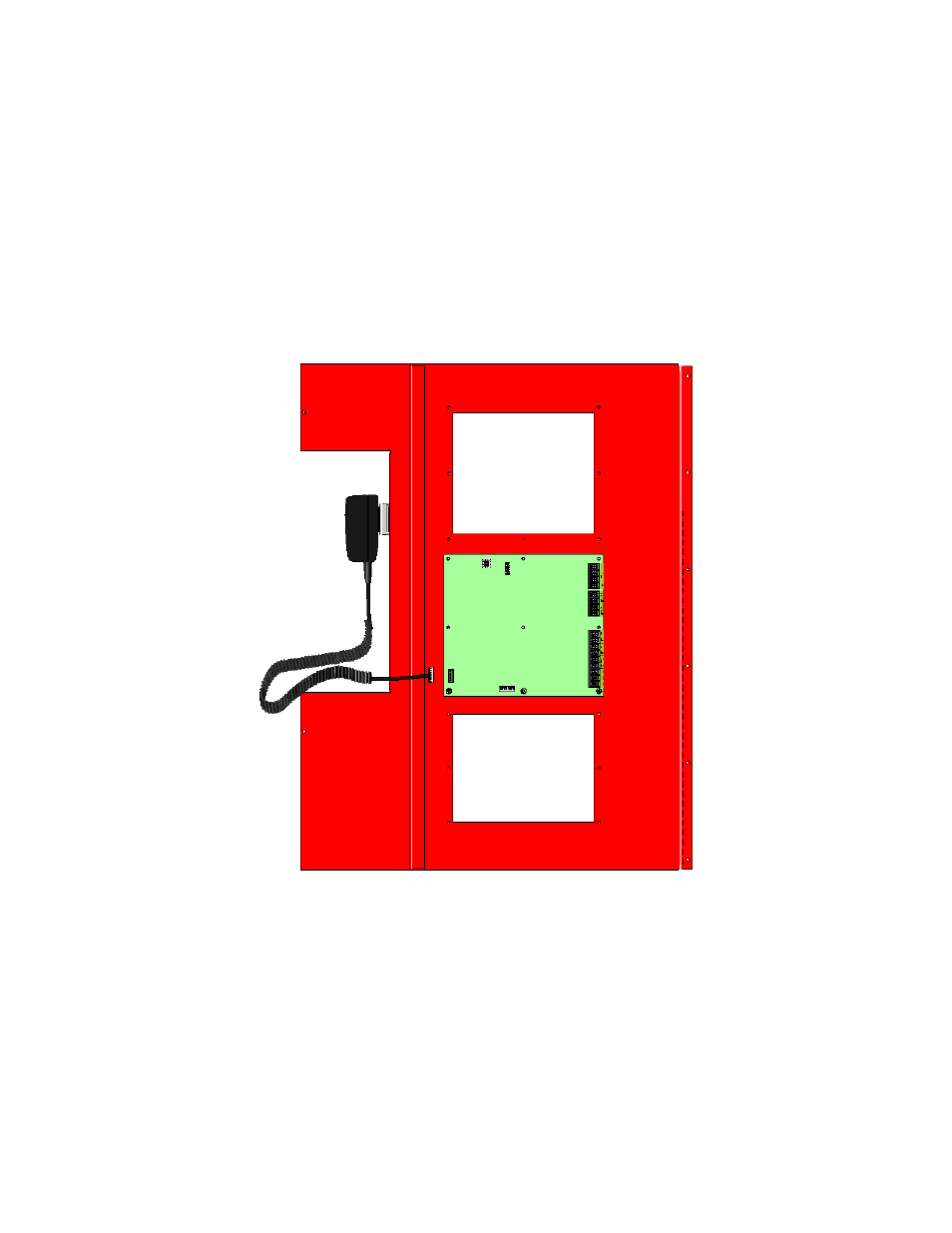

Figure 4-11 Back View of Dead Front Panel

5. Remove the six 1/4 hex nuts that hold the EVS-VCM in place.

6. Lift the EVS-VCM off of the dead front panel.
