4.5.6 SBUS Wiring
This section contains information on how to connect EVS-50Ws (up to 4) onto the
main control SBUS. Refer to Section 3.3 for SBUS specifications. Wire the SBUS as
shown in Figure 4-20 or Figure 4-21.

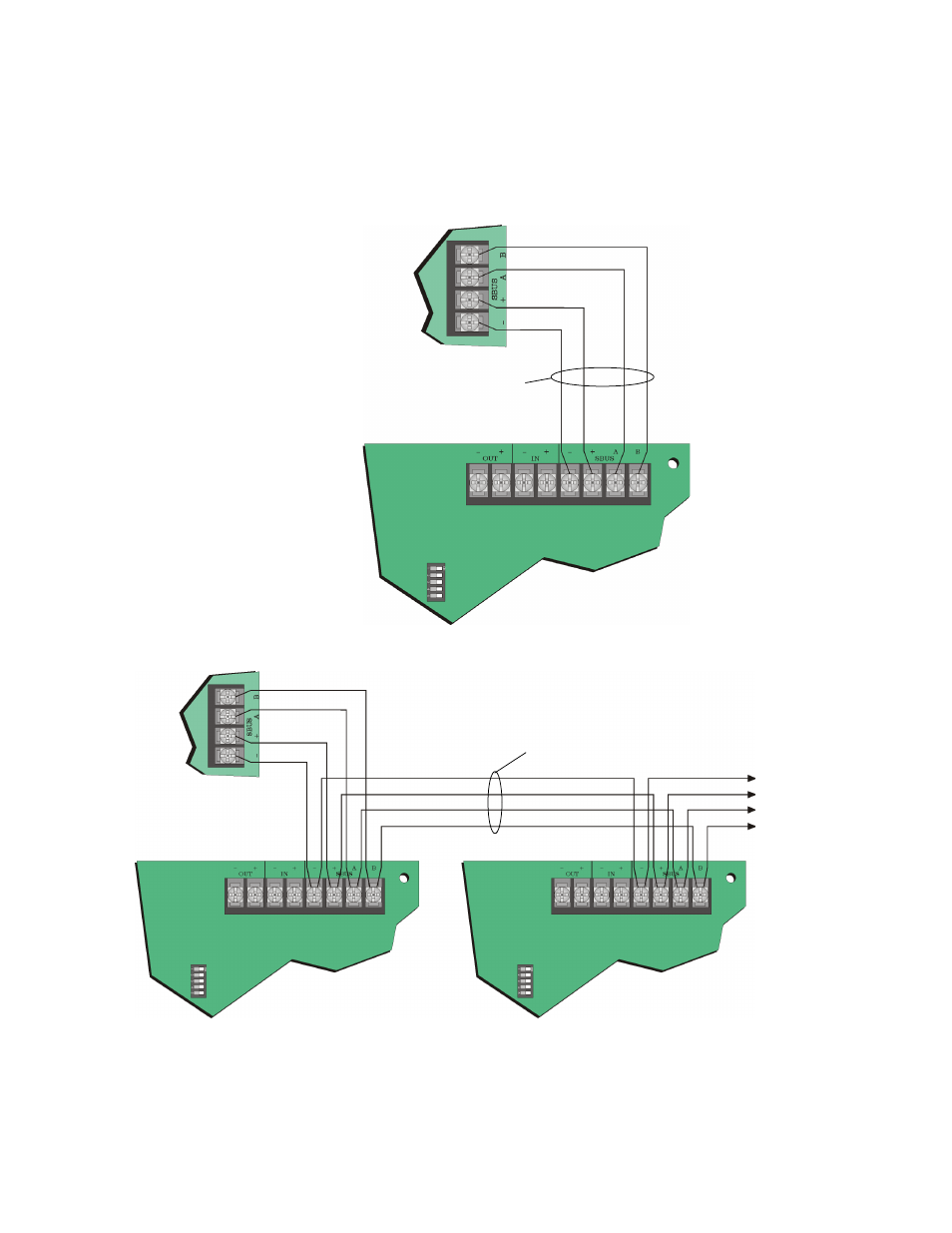

Figure 4-20 SBUS Connections of the EVS-50W
Figure 4-21 Connecting Multiple EVS-50Ws to the SBUS
See Section 4.9 for information on setting SBUS addresses.
Supervised
Power Limited
Control
Panel
Supervised
Power Limited
To Next
EVS-50W
(Max. 8)
Control
Panel
