Page 53
EVS Device Installation
LS10062-001-SK-E
4-31
4.6.5
VBUS Wiring
The VBUS is an analog voice bus that carries the recorded voice messages from the
EVS-VCM to the EVS-125Ws, or the voice messages generated from a system
microphone to the EVS-125Ws. The maximum resistance on the VBUS is 20
.
Connect the VBUS from the EVS-VCM to the EVS-125Ws as shown in Figure 4-30.

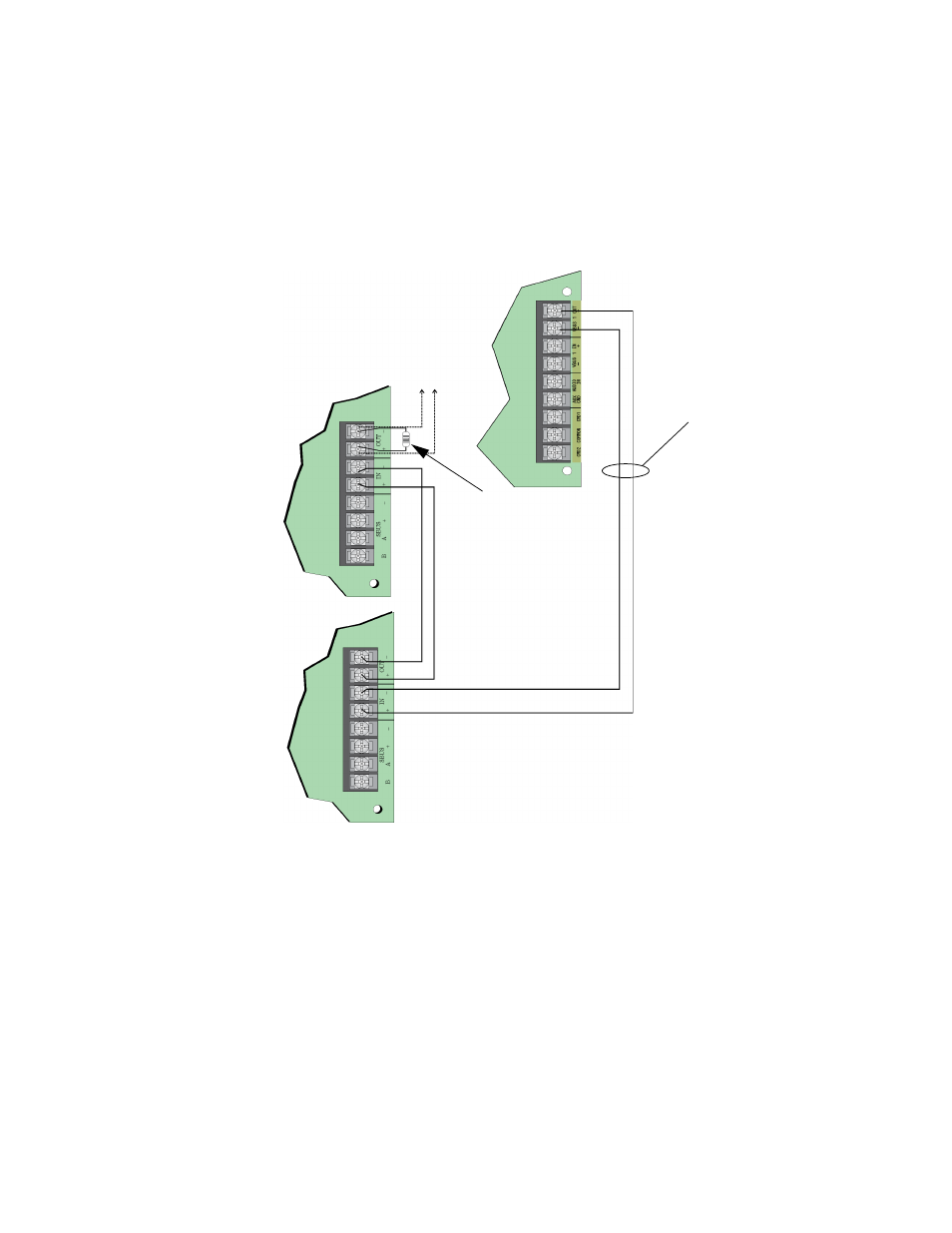

Figure 4-30 VBUS Wiring
UL Listed 15k
EOL on the last panel
Supervised
Power Limited
EVS-VCM
EVS-125W
EVS-125W
To next
EVS-125W
of the VBUS
