EVS Series Emergency Voice System Installation Manual
4-32
LS10062-001-SK-E
4.6.6
SBUS Wiring
This section contains information on how to connect EVS-125Ws (up to 4) onto the
main control SBUS. Refer to Section 3.3 for SBUS specifications. Wire the SBUS as
shown in Figure 4-31 or Figure 4-32.

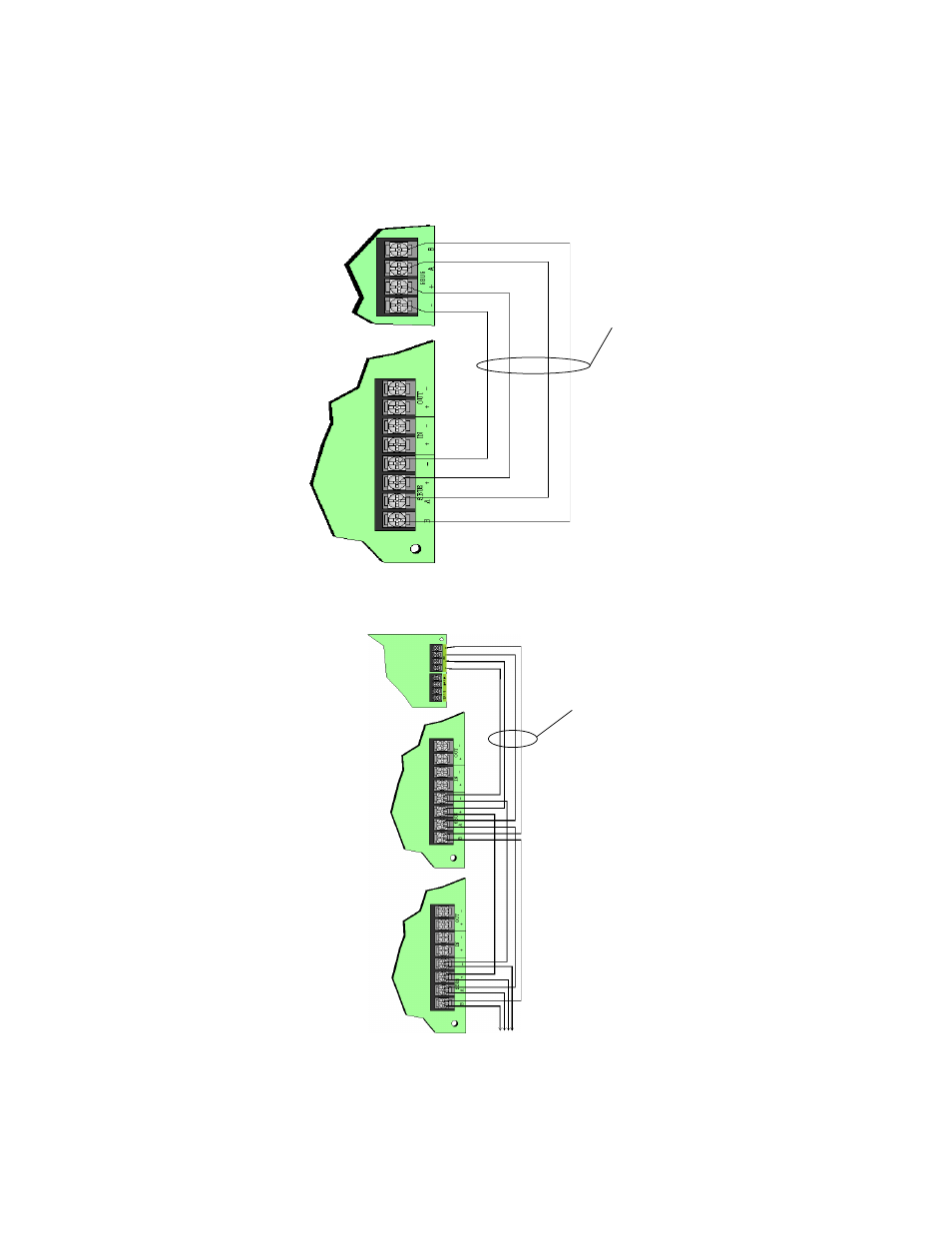

Figure 4-31 SBUS Connections of the EVS-125W
Figure 4-32 Connecting Multiple EVS-125Ws to the SBUS
See Section 4.9 for information on setting SBUS addresses.
Supervised
Power Limited
Supervised
EVS-125W
EVS-VCM
EVS-125W
To next EVS-125W (Max 4)
Power Limited
