Page 26
EVS Series Emergency Voice System Installation Manual
4-4
LS10062-001-SK-E
4. Place the trim ring around the cabinet. See Figure 4-3.

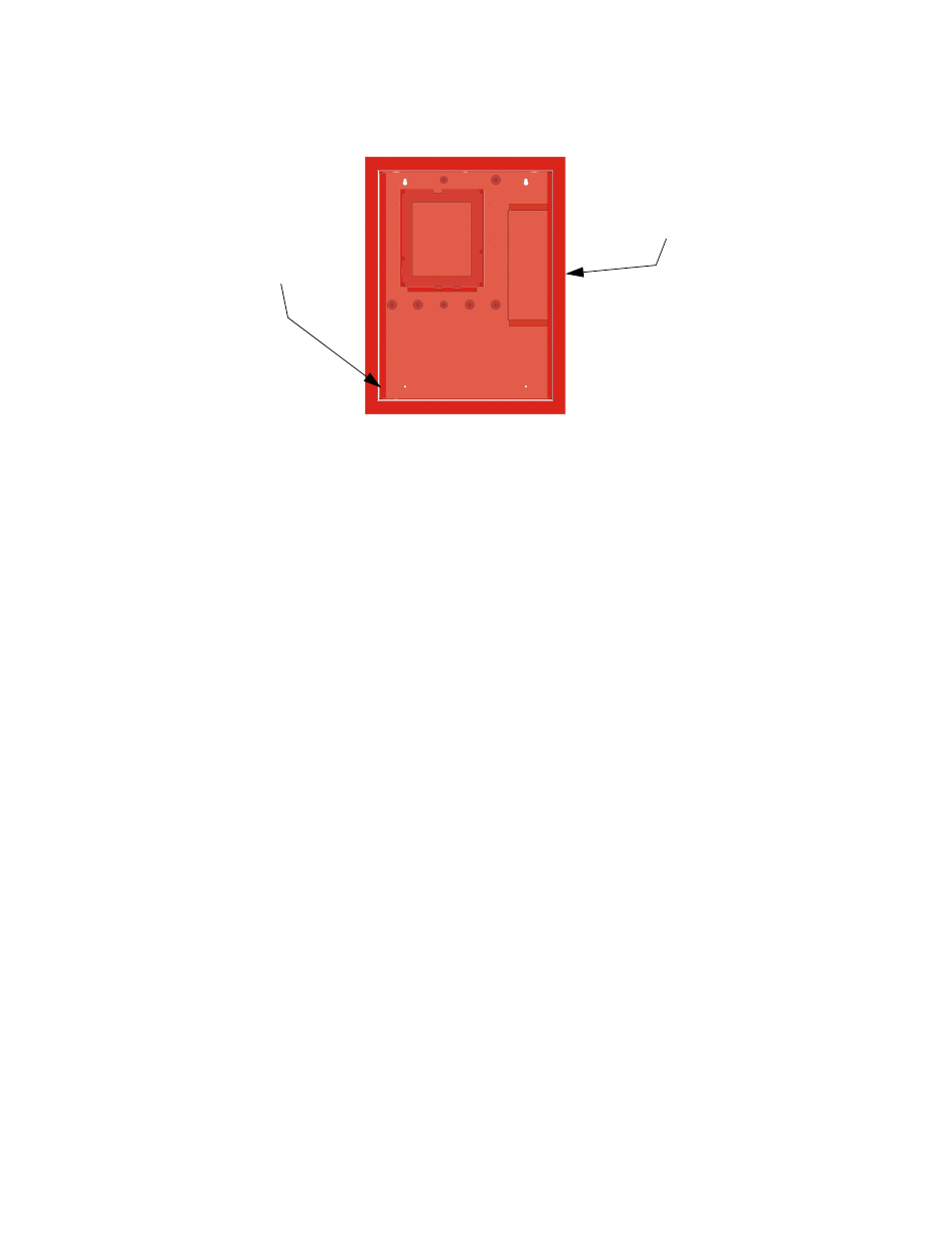

Figure 4-3 Trim Ring Around cabinet
5. Secure the trim ring to the cabinet using the self-tapping sheet metal screws from
the inside of the cabinet into the trim ring.
6. Re-attach the cabinet door assembly.
4.1.3.1 Cabinet Door and Dead Front Removal
While installing the cabinet it may be necessary to remove the cabinet door and the
dead front panel. This section provides instructions on how to remove the door and
dead front panel.
1. Disconnect the SBUS connection between the EVS-VCM and the FACP. See
2. Disconnect VBUS wiring from EVS-VCM. See Section 4.5.5.
Trim Ring
Cabinet
