Page 33
EVS Device Installation
LS10062-001-SK-E
4-11
4.4 Installing the EVS-SW24 Switch Expander
The EVS-SW24 adds 24 switches to the EVS-Series controls for a total of 40 (with
the 16 Non-EVS switches on the EVS-VCM).
This section provides instruction on how to properly install the EVS-SW24.
Follow these steps to install the EVS-SW24:
1. Open Cabinet door and dead front panel.
2. Remove AC power from the main control panel.
3. Disconnect the backup batteries.
4. Install the EVS-SW24 on the six mounting studs located on the inside of the dead
front panel. See Figure 4-12.

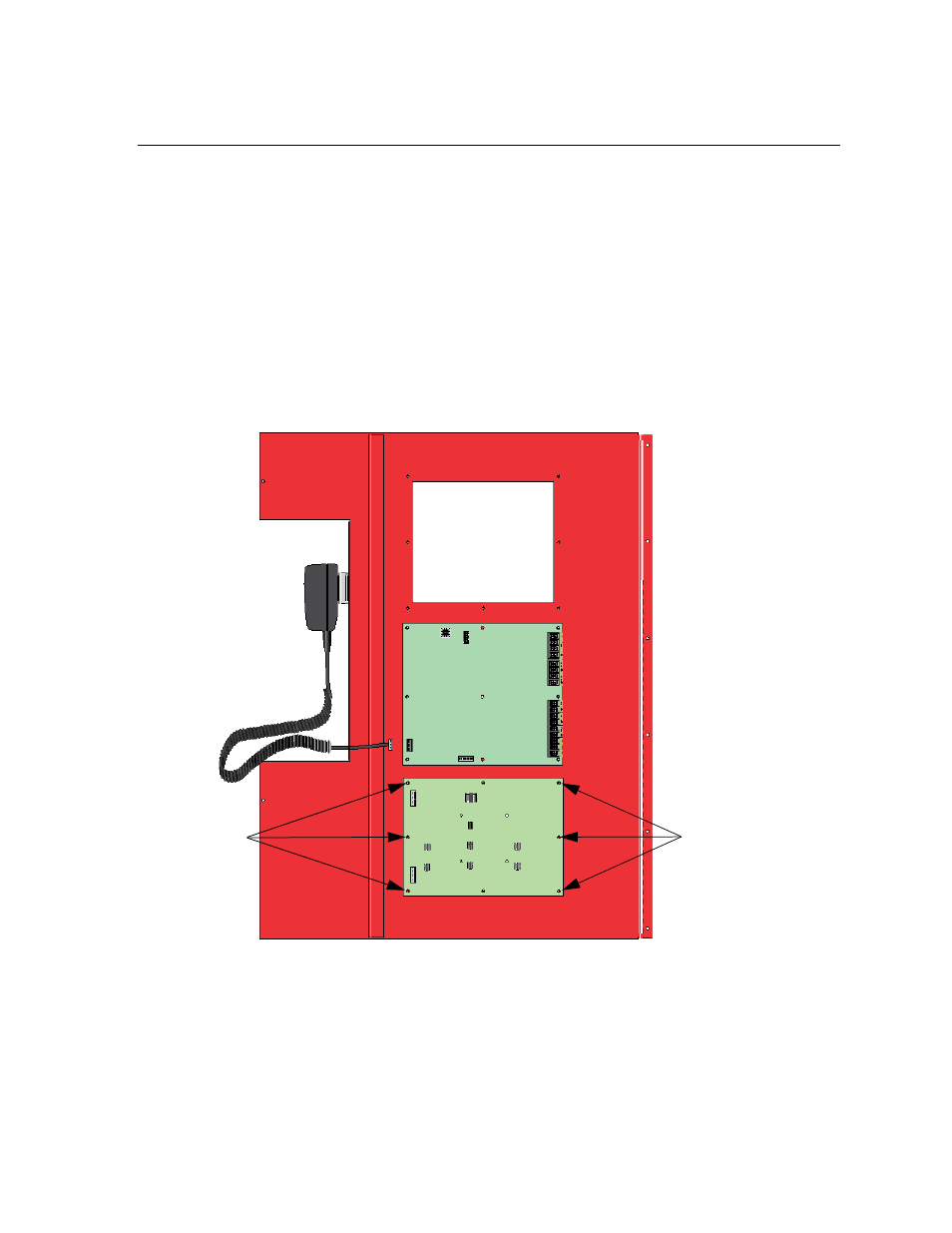

Figure 4-12 Mounting Location for the EVS-SW24
5. Secure the switch expander to the dead front panel using the supplied six 1/4”
Hex nuts.
Mounting
Studs
Mounting
Studs
