EVS Series Emergency Voice System Installation Manual
4-42 LS10062-001-SK-E
4.8.3 Installing the Microphone
To install the microphone follow these steps:

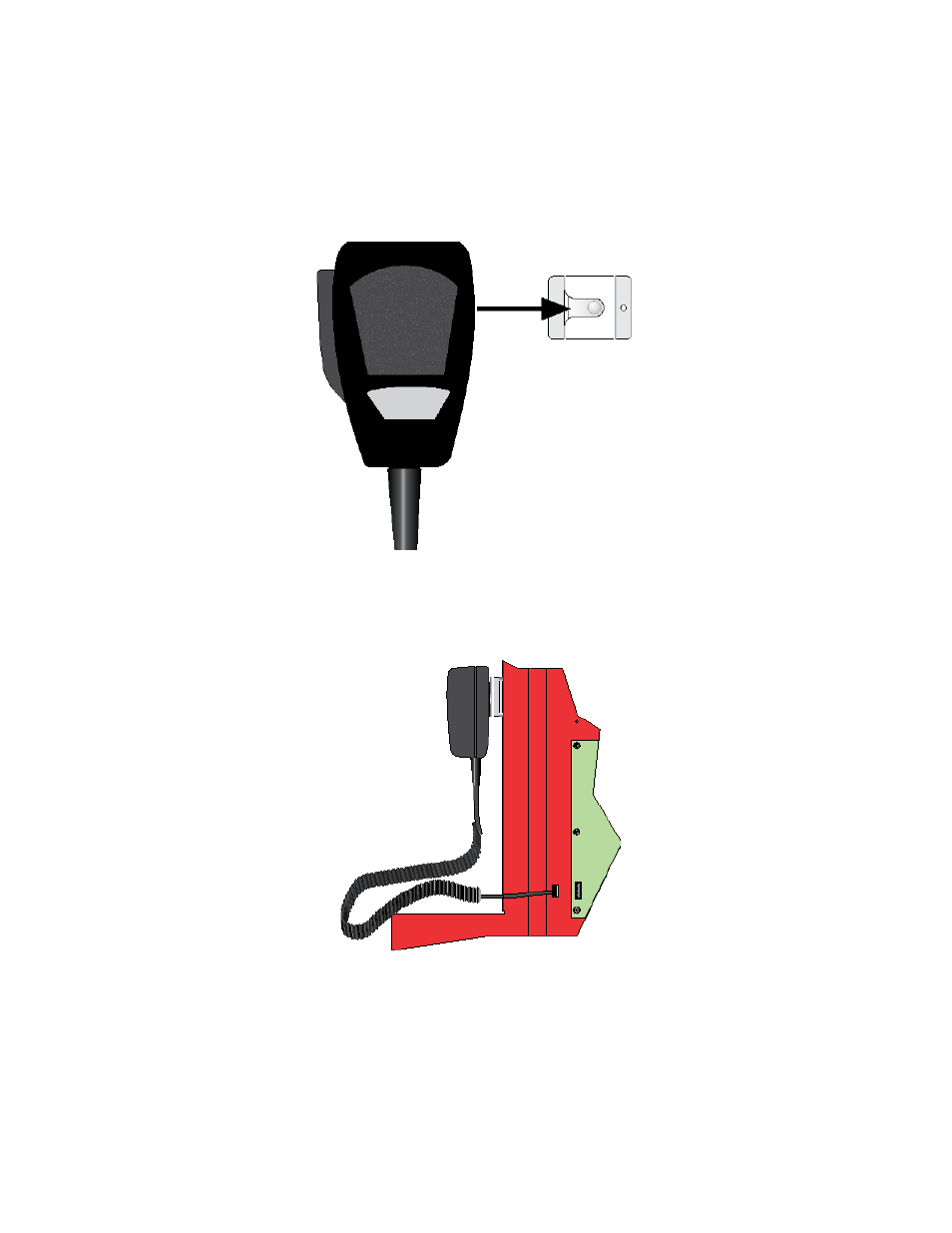

1. Clip the microphone into the micro phone clip. See Figure 4-42.
Figure 4-42 Sliding Microphone into Microphone Clip
2. Insert Microphone cord through hole at the bottom of the dead front panel. See
Figure 4-43.
Figure 4-43 Microphone Cord Inserted Through Dead Front Panel Hole
